Acquire Spectra

►

Procedure

1. To acquire a spectrum, click on the

index.html

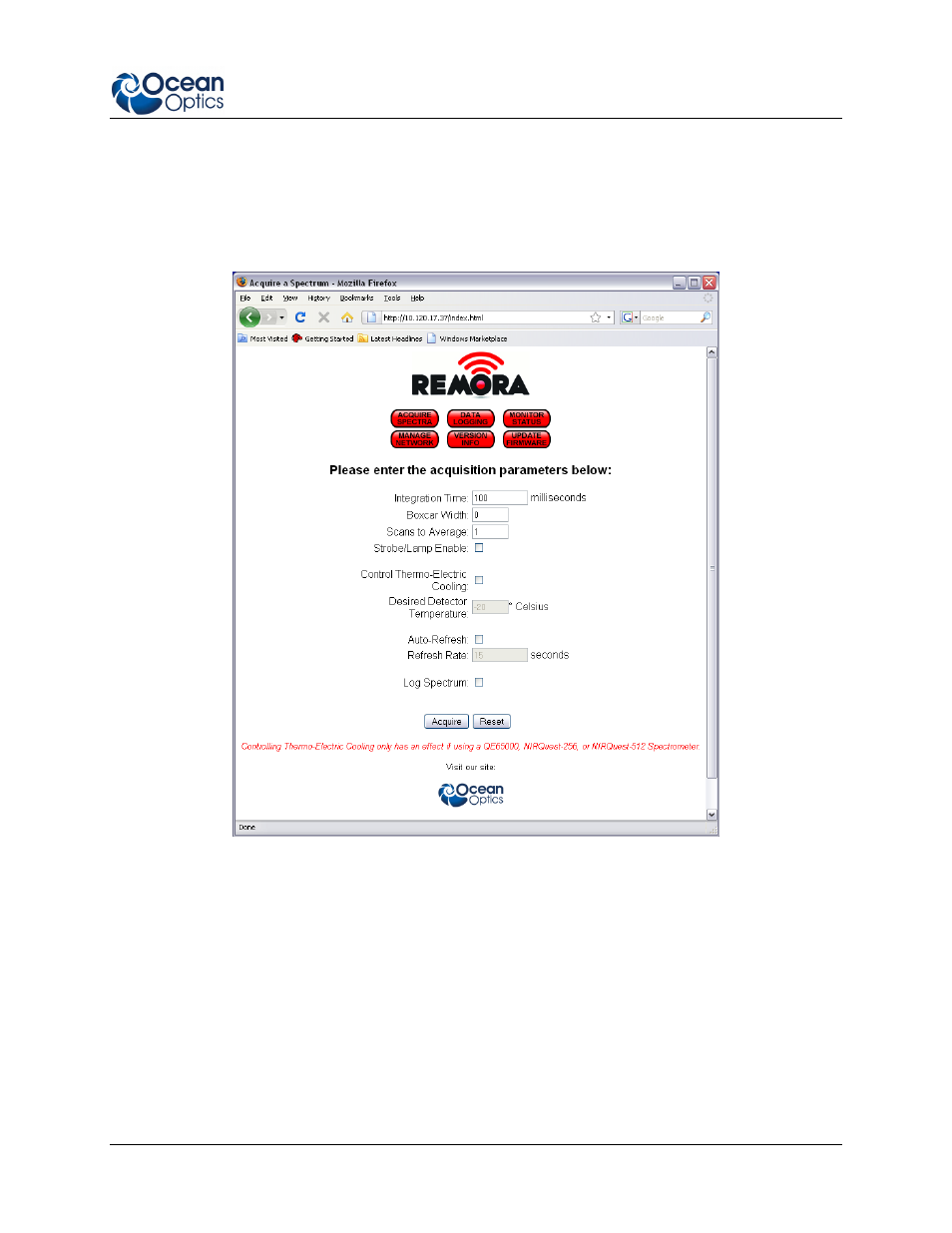

link as shown on the information page. The

following screen appears:

3. Fill in the acquisition parameters and click the Acquire button. (The Reset button resets the form

to the default values.) Available acquisition parameters include the following:



Integration Time: The length of the integration period. This is the same as Integration
Time in SpectraSuite.



Boxcar Width: The number of pixels on each side of a given pixel to smooth. This is the
same as Boxcar Width in SpectraSuite.



Scans to Average: The number of scans you want to average on a pixel-by-pixel basis.
This is the same as the Scans to Average in SpectraSuite.



Strobe/Lamp Enable: Drives the Strobe/Lamp Enable pin to be high before the spectrum
is acquired. This is the same as Strobe/Lamp Enable in SpectraSuite.
