TVS Diode Arrays
(SPA
™
Family of P
Revision: March 20, 2012

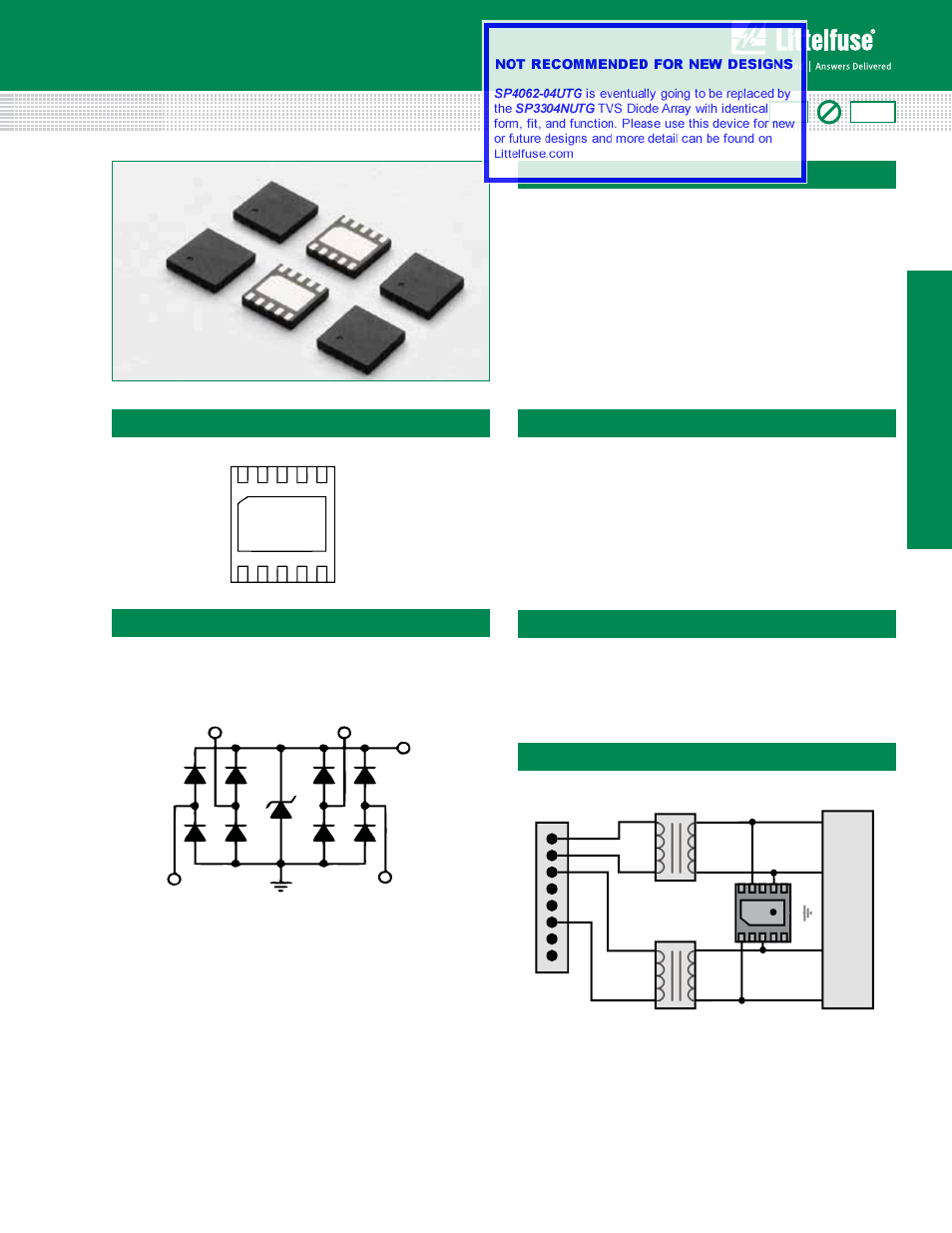

Lightning Surge Protection - SP4062 Series
SP4062 Series
SP4062
Applications
The SP4062 integrates 4 channels of low capacitance
diodes with an additional zener diode to protect sensitive
I/O pins against lightning induced surge events and
ESD. This robust device can safely absorb up to 20A per
IEC61000-4-5 (t
P
=8/20μs) without performance degradation
and a minimum ±30kV ESD per IEC61000-4-2 international
standard. The low loading capacitance makes the SP4062
ideal for protecting high-speed signal pins.
Features
t&4% *&$
±30kV contact, ±30kV air
t&'5 *&$ "
(t
p
=5/50ns)
t-JHIUOJOH *&$
20A (t
p
=8/20μs)
t-PXDBQBDJUBODFPGQ'
(TYP) per I/O
t-PXMFBLBHFDVSSFOUPG
1μA (MAX) at 3.3V
t&UIFSOFU
Interfaces
t$VTUPNFS1SFNJTF
Equipment (CPE)
t7P*11IPOFT
t4FU5PQ#PYFT
t1#94ZTUFNT
Functional Block Diagram
GND
1
3
9
7
5
Pinout
1
3
5
7
9
GND
Life Support Note:
Not Intended for Use in Life Support or Life Saving Applications
The products shown herein are not designed for use in life sustaining or life saving
applications unless otherwise expressly indicated.
Application Example
J1
J8
RJ-45 Connector
*Package is shown as transparent
Ethernet PHY
Tx+
Tx-
Rx-
Rx+
SP4062
PHY
SP4062 Series 3.3V 20A Diode Array
Pb
GREEN
