Teccor ® brand Thyristors
6 Amp Sensitive & Standard SCRs
Sxx06xSx & Sxx06x Series

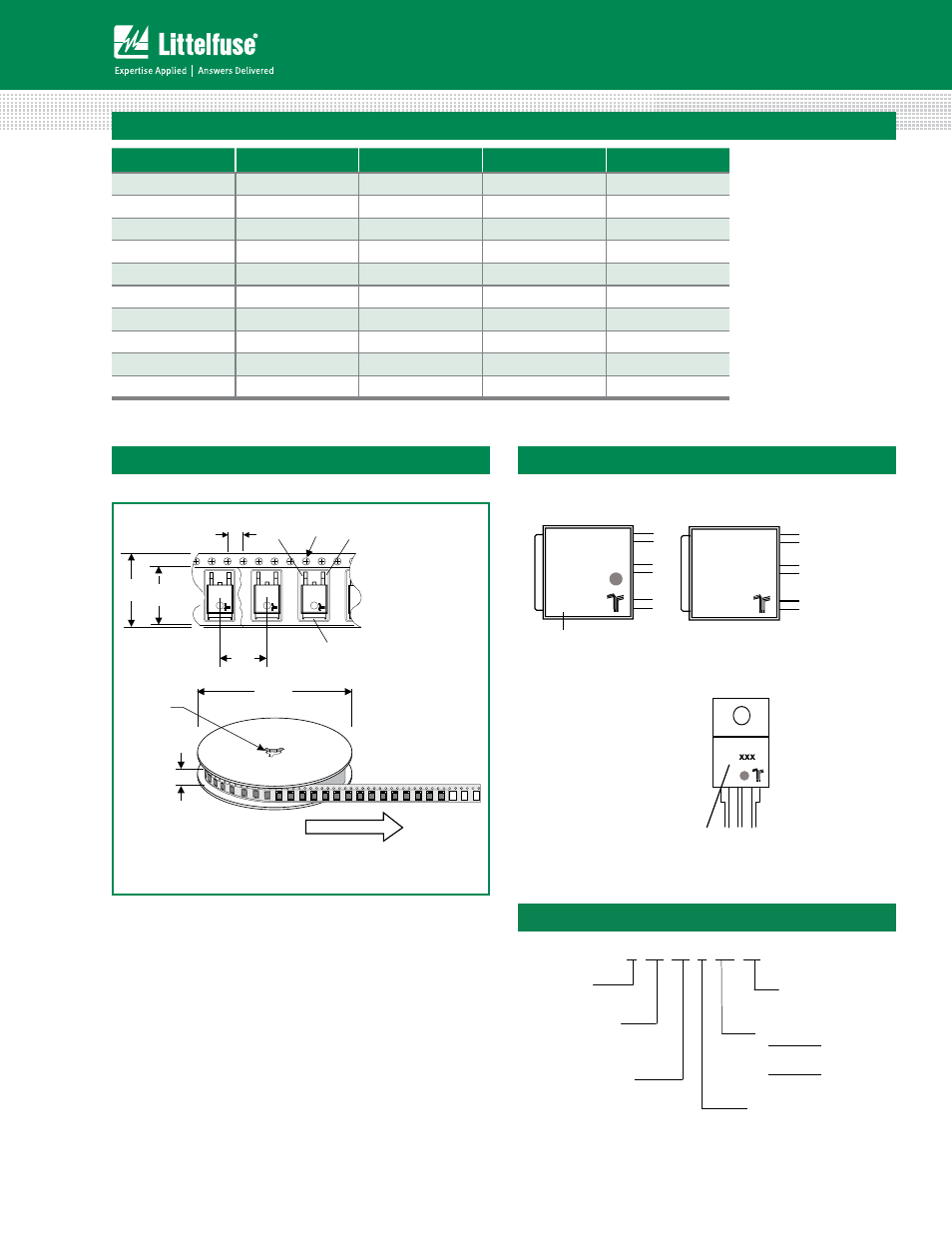

Packing Options
Part Number Marking Weight Packing Mode Base Quantity
Sxx06L/Ryy Sxx06L/Ryy 2.2 g Bulk 500
Sxx06L/RyyTP Sxx06L/Ryy 2.2 g Tube 500 (50 per tube)
Sxx06DyyTP Sxx06Dyy 0.3 g Tube 750 (75 per tube)
Sxx06DyyRP Sxx06Dyy 0.3 g Embossed Carrier 2500
Sxx06VyyTP Sxx06Vyy 0.4 g Tube 750 (75 per tube)
Sxx06L/R Sxx06L/R 2.2 g Bulk 500
Sxx06L/RTP Sxx06L/R 2.2 g Tube 500 (50 per tube)
Sxx06DTP Sxx06D 0.3 g Tube 750 (75 per tube)
Sxx06DRP Sxx06D 0.3 g Embossed Carrier 2500
Sxx06VTP Sxx06V 0.4 g Tube 750 (75 per tube)
Note: xx = Voltage; yy = Sensitivity
0.512 (13.0)
Arbor Hole
Diameter
DC
XXXXXX XXXXXX
DC
XXXXXX
DC
XXXXXX XX
Gate Cathode
Anode
0.63
(16.0)
0.157
(4.0)
0.64
(16.3)
12.99
(330.0)
0.524
(13.3)
0.315
(8.0)
0.059
DIA
(1.5)
*
*
Cover tape
XX XX
Direction of Feed
Dimensions
are in inches
(and millimeters).
TO-252 Embossed Carrier Reel Pack (RP) Specs
Meets all EIA-481-2 Standards
Part Numbering System
Part Marking System
S 60 06 L S2 56
DEVICE TYPE
S: SCR
VOLTAGE RATING
40: 400V
60: 600V
80: 800V
K0: 1000V
CURRENT RATING
06: 6A
SENSITIVITY & TYPE
Sensitive SCR:
S2: 200μA
S3: 500μA
Standard SCR:
(blank): 15mA
PACKAGE TYPE
L: TO-220 Isolated
R: TO-220 Non-Isolated
V: TO-251 (V/I-Pak)
D: TO-252 (D-Pak)
LEAD FORM DIMENSIONS
xx: Lead Form Option
S6006DS2
YMLDD
®
TO-252AA- (D Package)
TO-251AA- (V Package)
Date Code Marking
Y:Year Code
M: Month Code
L: Location Code
DD: Calendar Code
S6006DS2
YMLDD
®
®
M Y
S6006RS2
TO-220 AB - (L and R Package)
Date Code Marking
Y:Year Code
M: Month Code
XXX: Lot Trace Code
