LF SerieS FuSe BLock coverS

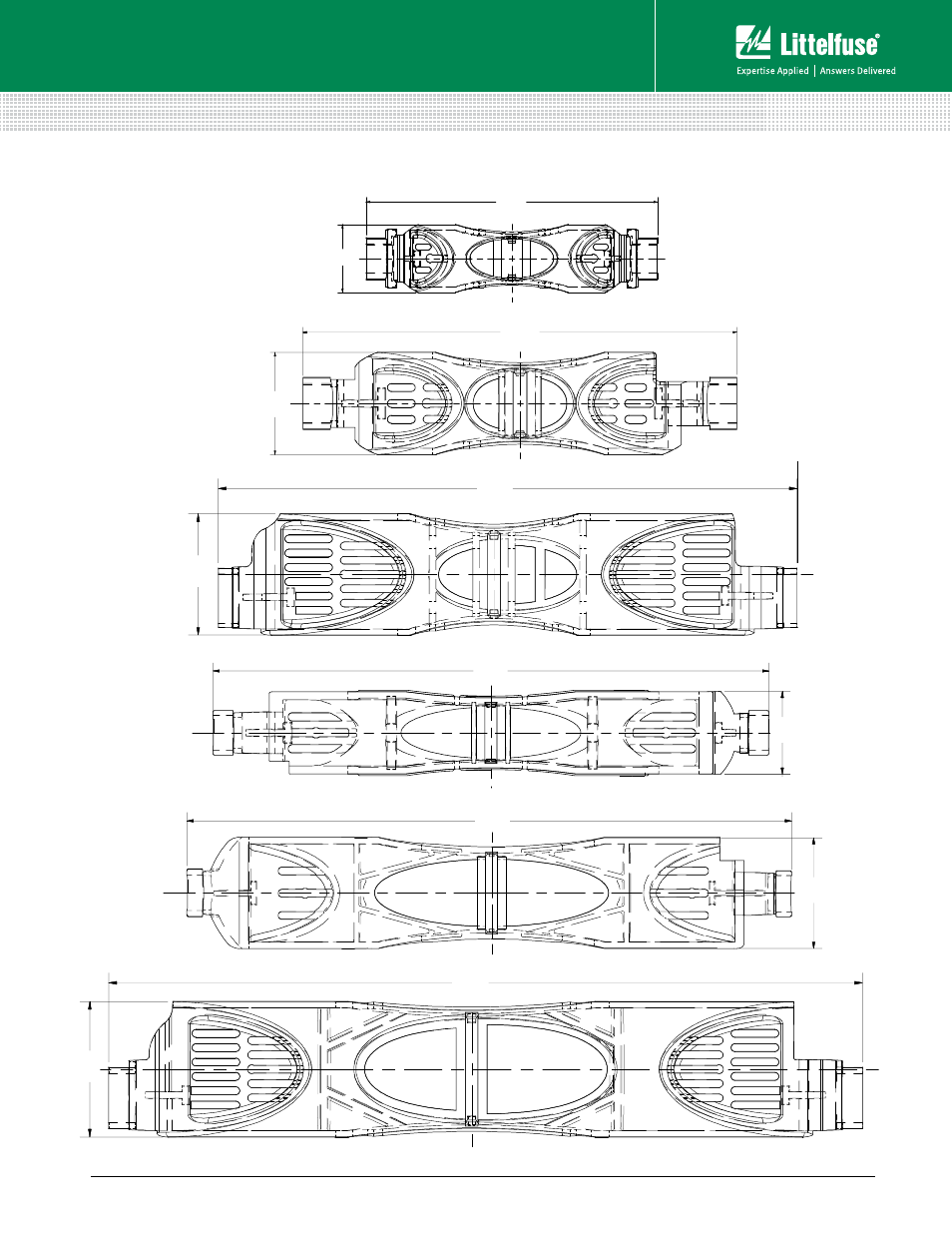

Dimensions in mm (inches)
Class H/R
Also available at Littelfuse.com/fuseblocks
96.52
(3.800)
22.61
(0.890)
250 V 30 A
250 V 100 A
185.45
(7.301)
38.86
(1.530)
250 V 60 A
138.43
(5.450)
32.64
(1.285)
600 V 30 A
177.16
(6.975)
26.37
(1.038)
600 V 60 A
193.72
(7.627)
35.46
(1.396)
600 V 100 A
240.28
(9.460)
43.18
(1.700)
