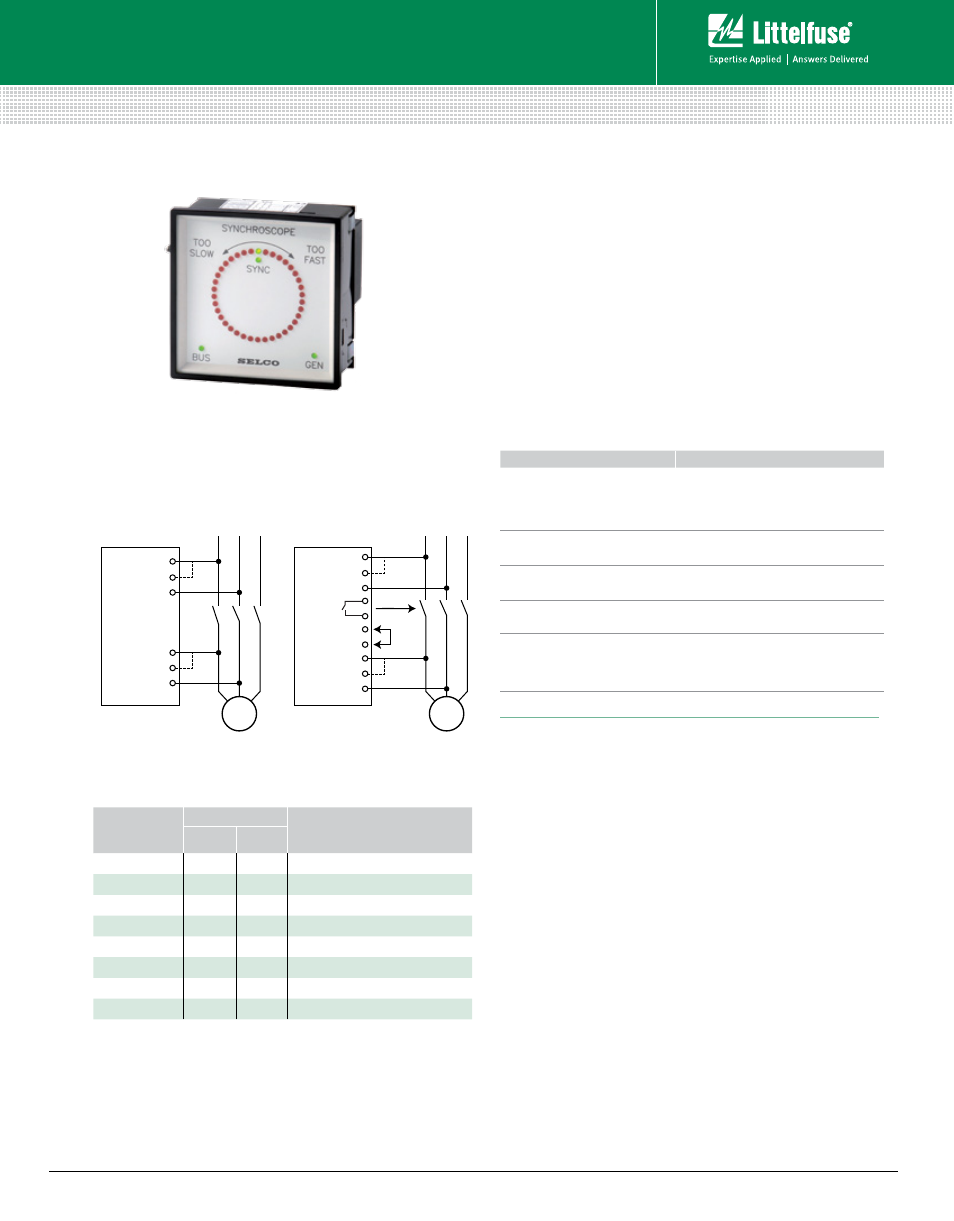

Littelfuse M8100 Series User Manual
M8100 series, Generator control, Basic

Generator Control
© 2013 Littelfuse Protection Relays & Controls
Basic
M8100 SerieS
Synchroscope
Description
The M8100 Synchroscope provides illuminated indication of
the phase and frequency difference between voltages on
two separate AC systems, e.g. a generator and a busbar. The
M8100 will also indicate whether or not the two systems are
on voltage.
The M8100 is also available in a version with a built-in relay
for automatic closure of the circuit breaker (Synchro Check
Relay). The voltage and frequency are adjusted by the
operator to roughly match the values required, and the unit
will provide a closing signal to the circuit breaker at phase
accordance.
Ordering Information
Simplified Circuit Diagram
FeatureS
BeNeFitS
High resolution visual
indication by 38 LEDs
Phase and frequency difference; Bus and
generator voltage and phase accordance.
Provides quick, concise status information;
steady viewing of the synchronization process.
Available with check
synchronizer relay
Enables use as manual synchronizing unit, or as
auto-synchronizer back-up
Versions available with
dead bus closure
Enables use as dead bus monitor in back-up
power installation
Galvanic isolated inputs
Protects the unit against high AC voltage and
currents from the installation including spikes
Sturdy casing for flush-
mount installation, Q96
standard, with protection
class IP52 on the front
Easy installation, allowing use in harsh
environments
Features & Benefits
www.littelfuse.com/m8100
BUS.
GEN.
G
1
2
3
4
5
6
L
1
L
2
L
3
M8100
(Synchroscope)
With Check Synchronizer
Without Check Synchronizer
BUS.
DEAD BUS
ENABLE
CLOSING
SIGNAL
GEN.
G
1
2
3
7
8
4
9
10
5
6
L
1
L
2
L
3
M8100
(Synchroscope)
Other voltages are available on request.
OrderiNg
NuMBer
terMiNalS
FuNctiON
1-1
5-7
1-3
6-7
M8100.0010
450 V
400 V
M8100.0020
230 V
M8100.0030
480 V
415 V
M8100.0040
110 V
100 V
M8100.0050
450 V
400 V
With check synchronizer relay
M8100.0060
230 V
With check synchronizer relay
M8100.0070
480 V
415 V
With check synchronizer relay
M8100.0080
110 V
100 V
With check synchronizer relay
Specifications
Max. Voltage
660 V
Voltage Range
70-110%
Consumption
2 x 3 VA max.
Frequency Range
35-70 Hz
Pull-in/Drop-out
Diff. Frequency
±9 Hz
Operating Temperature –20°C to +70°C
EMC
CE according to EN50081-1, EN50082-1,
EN50081-2, EN50082-2
Approvals
Certified by major marine classification societies
Burn-in
50 hours before final test
Enclosure Material
Flame retardant
Weight
0.7 kg
Dimensions
H 96 mm (3.8“); W 96 mm (3.8“); D 80 mm (3.1“)
Panel Cut-out
H 92 mm (3.6“); W 92 mm (3.6“)
Unit with check synchronizer relay
Voltage Difference
10-20%
Frequency Difference 0.15-0.3 Hz Combined setting
Phase Difference
6-12°
Dead-bus Delay
1s-5s
Dead-bus Voltage Offset 20%-40%
Min. Generator Voltage
for DB Closure
80% of nominal voltage
Contact Rating
AC: 250 V, 1.2 V, 125 VA; DC: 30 V, 1 A, 30 W
}
Rev: 4-A-050313
