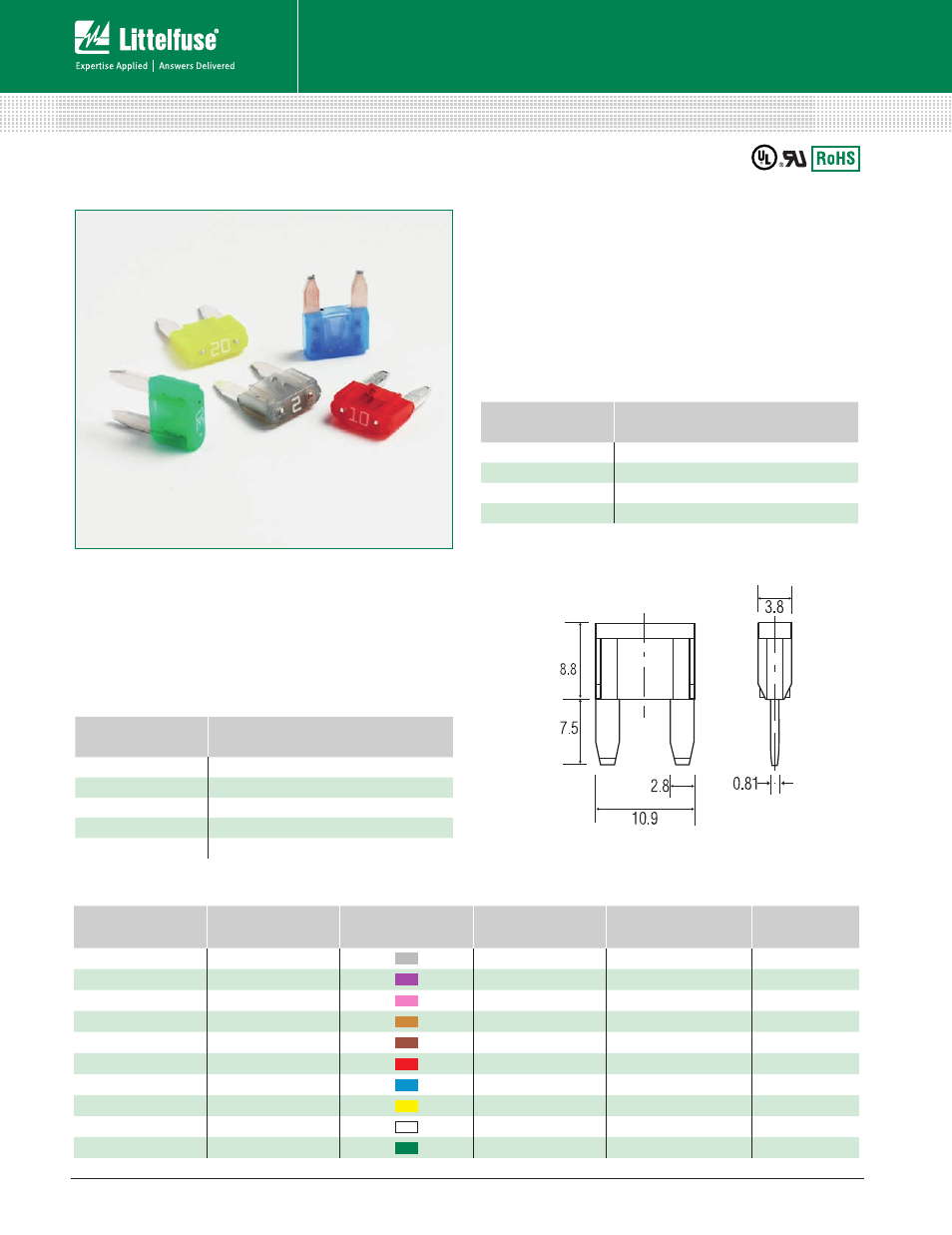

MINI ® BLADE FUSE RATED 32V
Dimensions
Dimensions in mm
Description
The MINI ® Fuse is quickly becoming the new standard for vehicle
circuit protection. Its miniature design meets the need for more
circuits to be protected while utilizing less space, and its ability to
cope with high temperatures in adverse environments makes the
MINI
® Fuse the recommended choice for protection.
Specifications
Interrupting Rating: 1000A @ 32 VDC
Voltage Rating: 32 VDC
Operating Temperature Range: -40˚C to +125˚C
Terminals: Ag plated zinc alloy
Housing Materials: PA66
Complies with: Meets SAE J2077
ISO 8820-3
UL 248 Special Purpose Fuses
Time-Current Characteristics
% of Rating Opening Time Min / Max (s)
110 360,000 s / –
135 0.75 s / 600 s
200 0.15 s / 5 s
350 0.080 s / 0.250 s
600 0.030 s / 0.100 s
Ratings
Part Number Current Rating Housing Color Typ. Voltage Drop Cold Resistance I 2 t
0297002._ 2 A 171 mV 55.60 mΩ 2.8 A²s
0297003._ 3 A 153 mV 33.75 mΩ 9.4 A²s
0297004._ 4 A 121 mV 23.48 mΩ 17 A²s
0297005._ 5 A 129 mV 17.75 mΩ 25 A²s
029707.5_ 7.5 A 135 mV 10.85 mΩ 68 A²s
0297010._ 10 A 108 mV 7.42 mΩ 93 A²s
0297015._ 15 A 98 mV 4.58 mΩ 270 A²s
0297020._ 20 A 96 mV 3.21 mΩ 380 A²s
0297025._ 25 A 86 mV 2.36 mΩ 625 A²s
0297030._ 30 A 87 mV 1.85 mΩ 1130 A²s
Ordering Information
Part Number Package Size
0297xxx.WXNV 3000
0297xxx.U 500
0297xxx.H 100
0297xxx.L 50
