TVS Diode Arrays
(SPA ® Diodes)
Low Capacitance ESD Protection - SP3001 Series

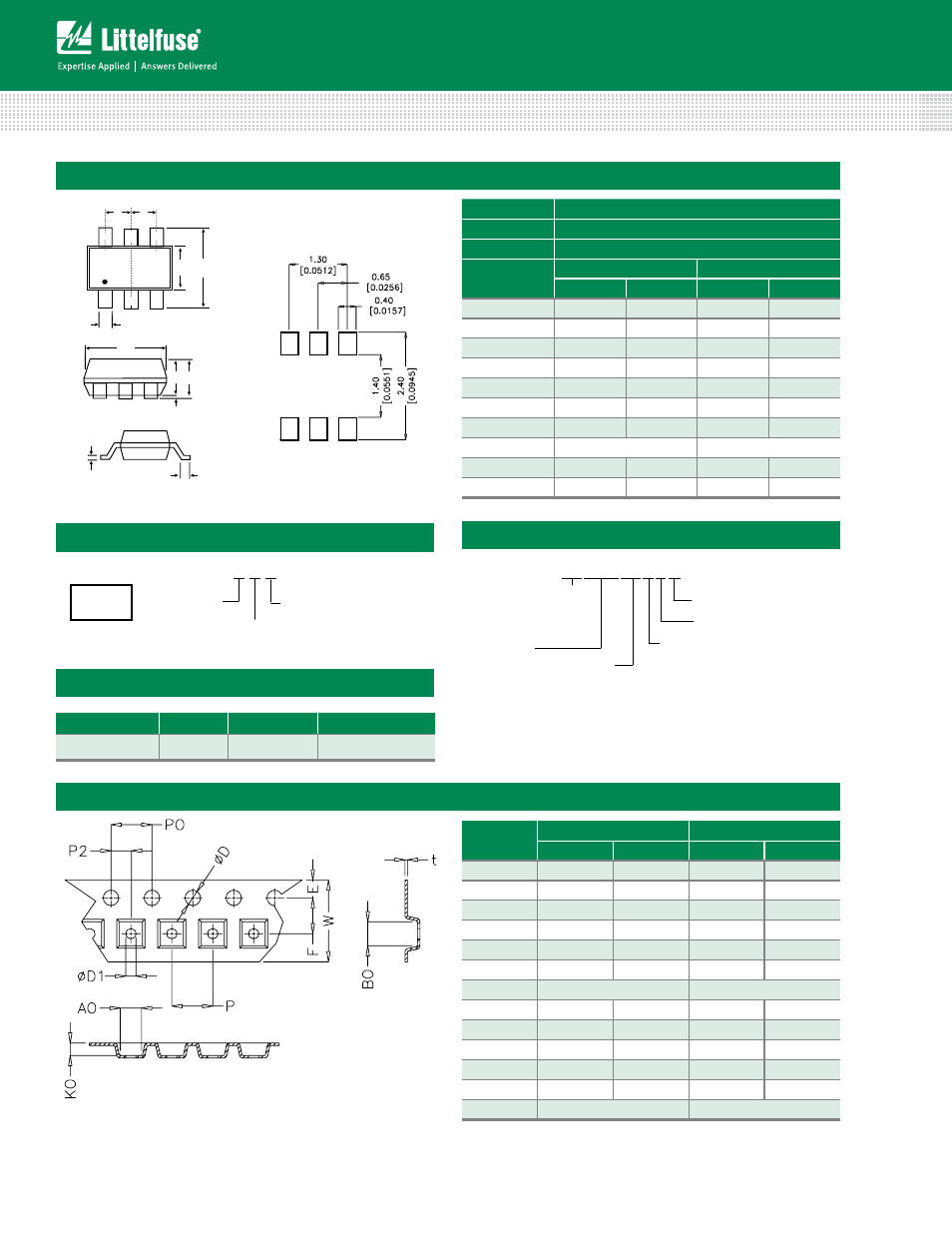

Package Dimensions — SC70-6
Package SC70-6
Pins 6
JEDEC MO-203
Millimeters Inches
Min Max Min Max
A 0.80 1.10 0.031 0.043
A1 0.00 0.10 0.000 0.004
A2 0.70 1.00 0.028 0.039
B 0.15 0.30 0.006 0.012
c 0.08 0.25 0.003 0.010
D 1.85 2.25 0.073 0.089
E 1.15 1.35 0.045 0.053
e 0.65 BSC 0.026 BSC
HE 2.00 2.40 0.079 0.094
L 0.26 0.46 0.010 0.018
D
A2 A
A1
C
L
E HE
2 1 3
6 5 4
e e
B
Part Numbering System
Ordering Information
Part Number Package Marking Min. Order Qty.
SP3001-04JTG SC70-6 D * 4 3000
Part Marking System
SP3001-04 JTG
Series
Number of Channels
-04 = 4 channel
Package
J = SC70-6
T= Tape & Reel
G= Green
TVS Diode Arrays
(SPA ® Diodes)
D * 4
D * 4
Product Series
D = SP3001 series
Assembly Site
(varies)
Number of Channels
Solder Pad Layout
Embossed Carrier Tape & Reel Specification — SC70-6
Symbol
Millimetres Inches
Min Max Min Max
E 1.65 1.85 0.064 0.072
F 3.45 3.55 0.135 0.139
P2 1.95 2.05 0.076 0.081
D 1.40 1.60 0.055 0.062
D1 1.00 1.25 0.039 0.049
P0 3.90 4.10 0.153 0.161
10P0 40.0± 0.20 1.574±0.007
W 7.70 8.10 0.303 0.318
P 3.90 4.10 0.153 0.161
A0 2.14 2.34 0.084 0.092
B0 2.24 2.44 0.088 0.960
K0 1.12 1.32 0.044 0.052
t 0.27 max 0.010 max
