Personnel Protection - PRELIMINARY
Specifications
Voltage Rating See ordering information
Amperage Rating 100 A (continuous)
Load 3-phase, 3-wire (no neutral) or 1-phase
(line-to-line), 60 Hz
Short Circuit Rating 50,000 A
Trip Level Settings Selectable (6, 10, 20, 30 mA), or fixed at 20 mA
Trip Time Setting Inverse time trip curve
Enclosure NEMA 4X, Polyester, Lockable
Operating Temperature –35°C (–31°F) to +40°C(104°F), up to +66°C (151°F)
with derating
Wiring Requirements 2/0 AWG (maximum)
Approval GFCI: UL Listed (enclosed models) and UL Recognized
component (open-chassis models) EGFPD: cULus Listed
(enclosed models) and cURus Recognized Component
(open-chassis models)
Dimensions Enclosed: H 453.8 mm (17.9”);
W 406.2 mm (16.0”); D 223.3 mm (8.8”)
Open-chassis: H 455.0 mm (17.9”);
W 340.7 mm (13.4”); D 174.9 mm (6.8”)
Warranty 1 year
Accessories
ACCESSORIES REQUIREMENT PAGE*
AC6000-OPI-00 Included N/A
1N5339B Included 120
SE-TA6 Optional 120
SE-TA6-SM Optional 120
SE-TA6ASF-WL Optional 120
AC6000-CART-00 Optional N/A
AC6000-MNT-00 Optional N/A
Ordering Information - Accessories
Rev: 4-H-112613
Based on Manual Rev. 1-B-112913
© 2013 Littelfuse Protection Relays & Controls
Littelfuse.com/IndustrialShockBlock

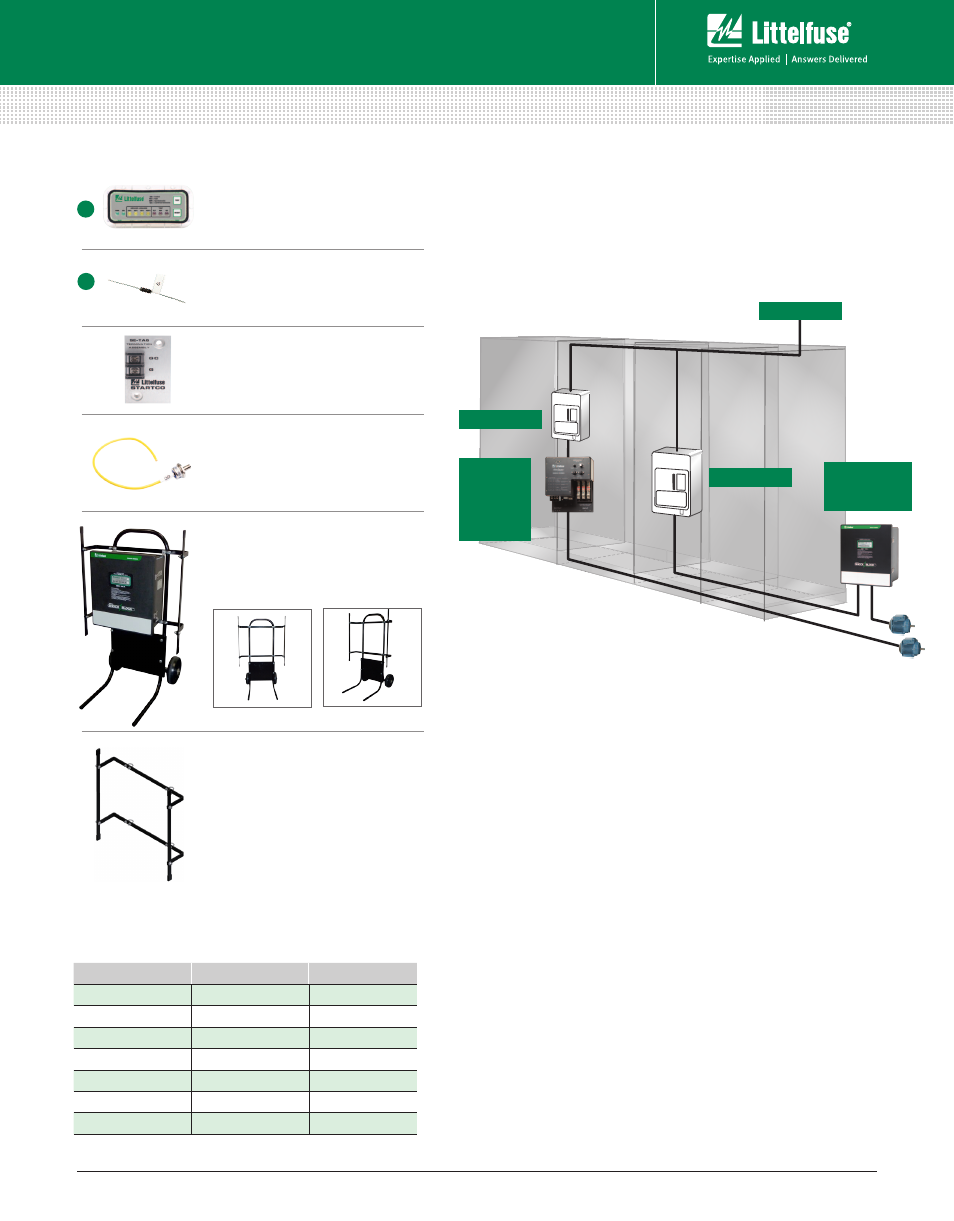

Connection Diagram
The SB6100 is installed in-line between incoming power or
existing over-current protection device and the load.
The open-chassis SB6100 can be installed in electrical
equipment and the enclosed version is typically wall-mounted.
Incoming Power
SB6100 Industrial
Shock-Block
Enclosed Model
Circuit Breaker SB6100
Industrial
Shock-Block
Open-Chasis
Model
Circuit Breaker
SB6000 SERIES
Industrial Shock-Block
Operator Interface
(AC6000-OPI-00)
1N5339B - Termination Device
Axial-lead ground-check termination,
included with SB6000 series
SE-TA6 - Termination Assembly
Optional termination assembly with
terminals and mounting holes
SE-TA6-SM Stud-Mount
Termination Assembly
Optional ground-check termination
for submersible pumps.
AC6000-CART-00
Two-wheeled Cart
Optional for mounting ISB to allow for
moving the unit while power is off
AC6000-MNT-00
Mounting Frame
Optional for mounting ISB to a cart
or other surface. Included with the
AC6000-CART-00.
A
B
