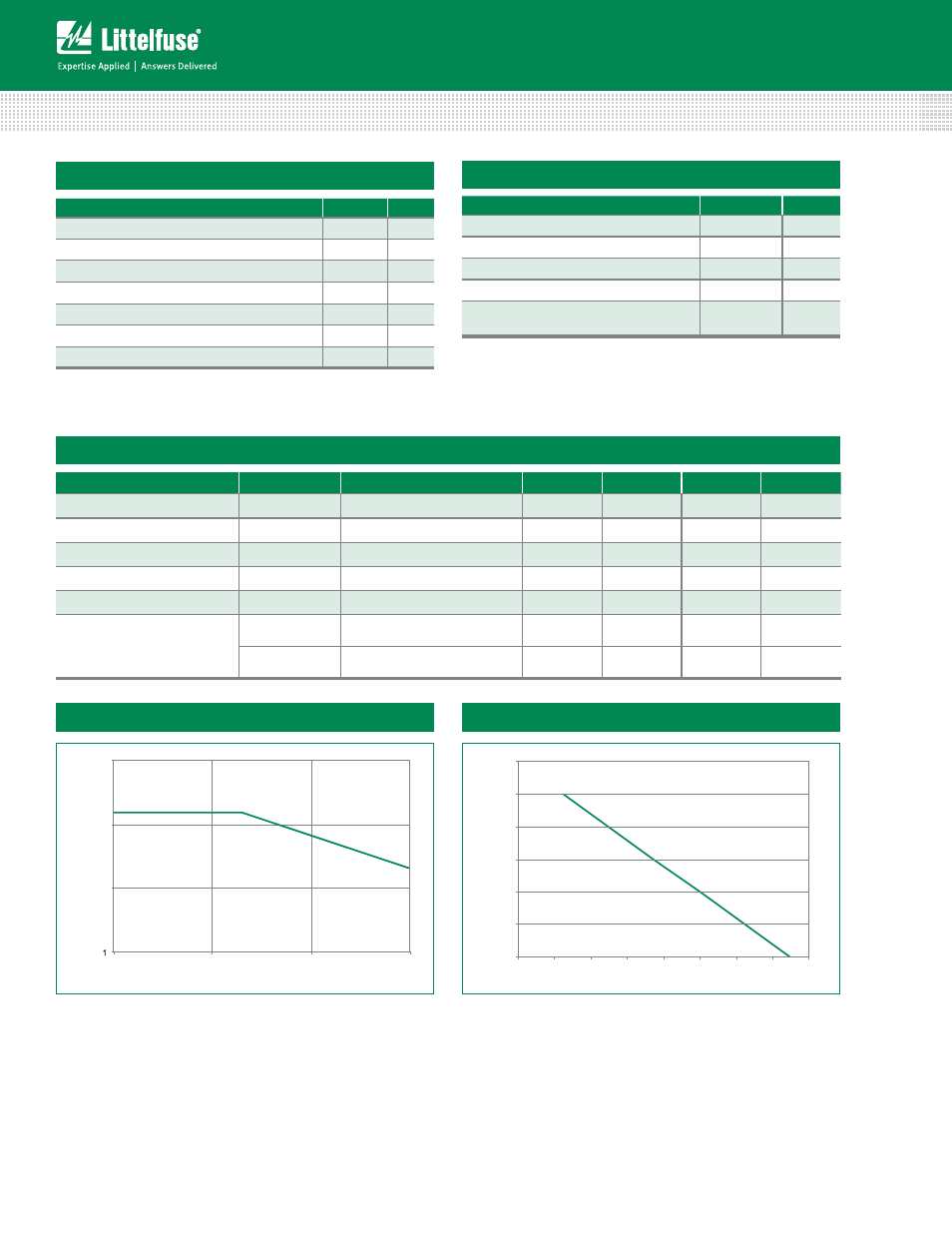

TVS Diode Arrays
(SPA ® Diodes)
Lightning Surge Protection - SP03-6 Series
Absolute Maximum Ratings
Parameter Rating Units
Peak Pulse Current (8/20µs) 150 A
Peak Pulse Power (8/20µs) 2800 W
IEC 61000-4-2, Direct Discharge, (Level 4) 30 kV
IEC 61000-4-2, Air Discharge, (Level 4) 30 kV
IEC 61000-4-5 (8/20µs) 100 A
Telcordia GR 1089 (Intra-Building) (2/10µs) 100 A
ITU K.20 (5/310µs) 40 A
Electrical Characteristics (T
OP
= 25°C)
Thermal Information
Parameter Rating Units
SOIC Package 170 °C/W
Operating Temperature Range –40 to 125 °C
Storage Temperature Range –55 to 150 °C
Maximum Junction Temperature 150 °C
Maximum Lead Temperature (Soldering
20-40s) (SOIC - Lead Tips Only)
260 °C
Parameter Symbol Test Conditions Min Typ Max Units
Reverse Stand-Off Voltage V
RWM
- - - 6 V
Reverse Breakdown Voltage V
BR
I
T
= 1mA 6.8 - - V
Reverse Leakage Current I
R
V
RWM
= 6V, T= 25°C - - 25 µA
Clamping Voltage, Line-Ground V
C
I
PP
= 50A, t
p
=8/20 µs - - 15 V
Clamping Voltage, Line-Ground V
C
I
PP
= 100A, t
p
=8/20 µs - - 20 V
Junction Capacitance
C
j
(Line-Ground) Between I/O Pins and Ground
V
R
=0V, f= 1MHz
- 16 25 pF
C
j
(Line-Line)
Between I/O Pins
V
R
=0V, f= 1MHz
- 8 12 pF
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause
permanent damage to the device. This is a stress only rating and operation of the device
at these or any other conditions above those indicated in the operational sections of this
specification is not implied.
Figure 2: Current Derating Curve Figure 1: Non-repetitive Peak Pulse Current vs. Pulse Time
Pulse decay time (µs)
1
10
100
1000
1 10 100 1000
Peak Pulse Cur
rent (A)
Pe
rcenta
ge
of Rat
ed Cur
rent (%I
P
)
Ambient Temperature (C)
0
20
40
60
80
100
120
0 20 40 60 80 100 120 140 160
