Teccor ® brand Thyristors
1.5 Amp Sensitive SCRs
TCR22-x Series

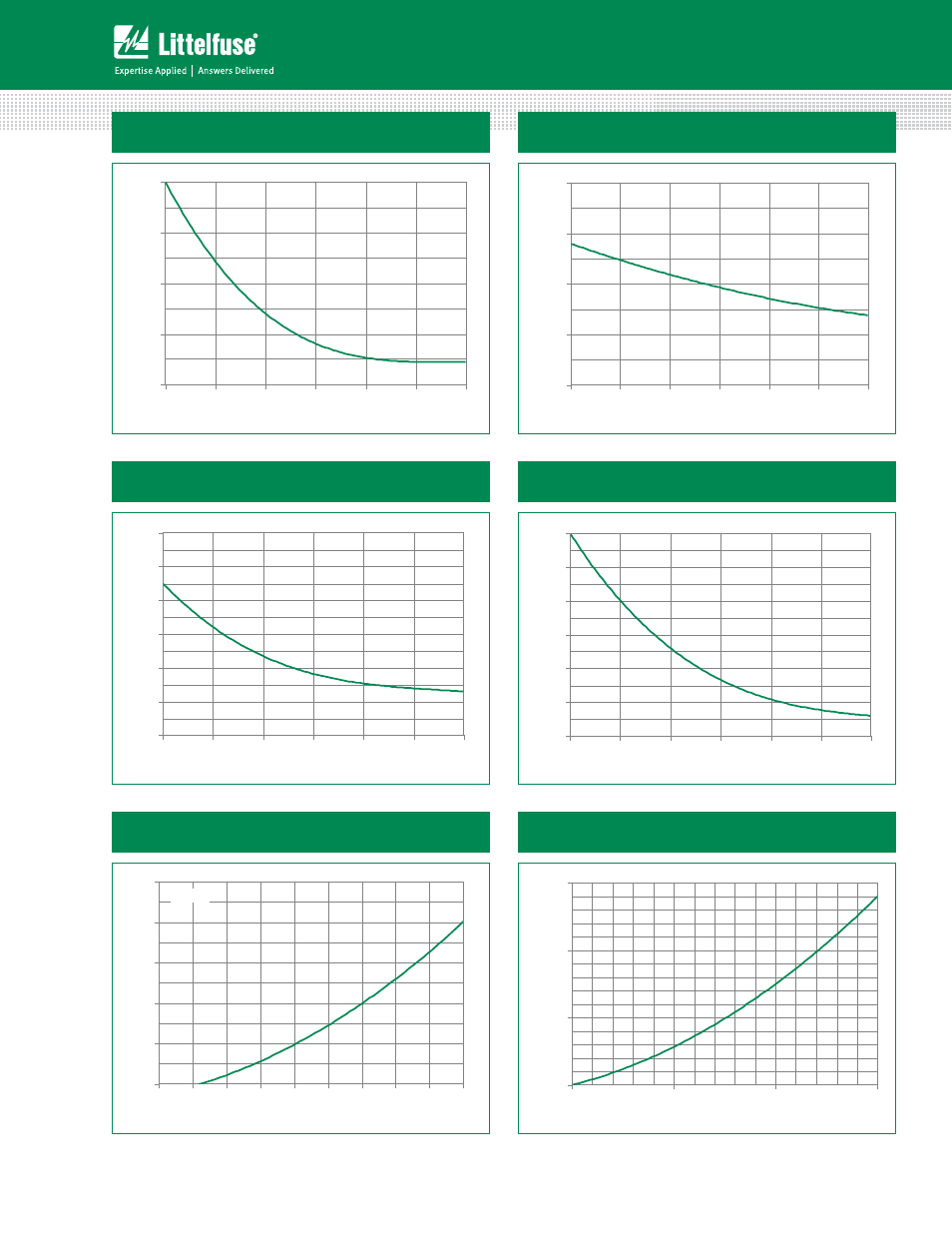

Figure 1: Normalized DC Gate Trigger Current
vs. Junction Temperature
Figure 2: Normalized DC Gate Trigger Voltage
vs. Junction Temperature
0.0
1.0
2.0
3.0
4.0
-40 -15 10 35 60 85 110
Junction Temperature (T
J
) -- (°C)
Ratio of I
GT
/I
GT
(T
J
= 2
5
°C)
Figure 5: On-State Current vs. On-State
Voltage (Typical)
Figure 6: Power Dissipation (Typical)
vs. RMS On-State Current
Figure 3: Normalized DC Holding Current
vs. Junction Temperature
Figure 4: Normalized DC Latching Current
vs. Junction Temperature
0.0
0.5
1.0
1.5
2.0
-40 -15 10 35 60 85 110
Junction Temperature (T
J
) -- (°C)
Ratio of
V
GT
/ V
GT
(T
J
= 2
5
°C)
0.0
0.5
1.0
1.5
2.0
2.5
3.0
-40 -15 10 35 60 85 110
Junction Temperature (T
J
) -- (°C)
Ratio of I
H
/I H
(T
J
= 2
5
°C)
0.0
0.5
1.0
1.5
2.0
2.5
3.0
-40 -15 10 35 60 85 110
Junction Temperature (T
J
) -- (°C)
Ratio of I
L
/ I
L
(T
J
= 2
5
°C)
T
J
= 25°C
0
2
4
6
8
10
0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6
Instantaneous On-state Voltage (v
T
) – Volts
Instantaneous On-state Current (i
T
) – Amps
0.0
0.5
1.0
1.5
0.0 0.5 1.0 1.5
RMS On-State Current [I
T(RMS
)] - (Amps)
Average On-State Power Dissipation
[P
D(AV)
] - (Watts)
