Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 213 Series

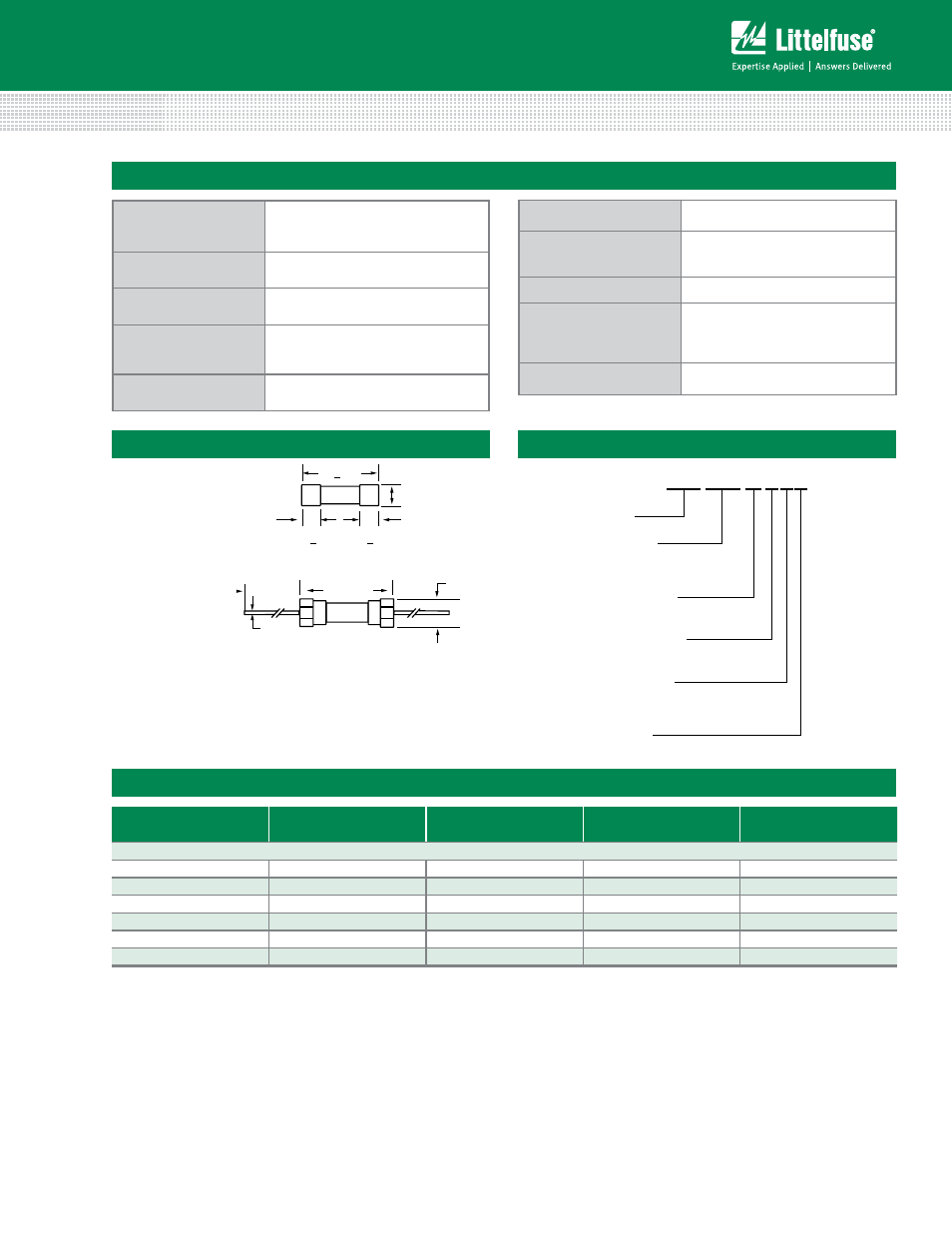

Dimensions
Product Characteristics
Operating Temperature –55ºC to +125ºC
Thermal Shock
MIL-STD-202G, Method 107G, Test
Condition B: (5 cycles –65 ° C to
+125 ° C)
Vibration MIL-STD-202G, Method 201A
Humidity
MIL-STD-202G, Method 103B, Test
Condition A. High RH (95%) and
elevated temperature (40 ° C) for 240
hours.
Salt Spray
MIL-STD-202G, Method 101D, Test
Condition B
Material Body: Glass
Cap: Nickel–plated brass
Leads: Tin–plated Copper
Terminal Strength MIL-STD-202G, Method 211A, Test
Condition A
Solderability Reference IEC 60127, Second Edition
2003-01, Annex A
Product Marking Cap1: Brand logo, current and voltage
Cap2: Agency approval marks Series
Packaging Available in Bulk (M=1000 pcs/pkg) or
on Tape/Reel (MRET1=1000 pcs/reel)
0213 000P
20+0.5
5.1+0.6
5.2+0.1
-0.2
5.1+0.6
0213 000 XEP
0.65
40 22.5 MAX
5.8 MAX
All dimensions in mm
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
Part Numbering System
0213 xxxx M X E P
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
Lead-free
Quantity Code
M = 1000
Option Codes
Blank : Cartidge Type Fuse
E : Axial Leaded Fuse
Packaging Code
X = Filler
Packaging
packaging Option packaging Specification Quantity
Quantity &
packaging Code
Taping Width
213 Series
Bulk N/A 1000 MX N/A
Bulk N/A 1000 MXE N/A
Reel and Tape N/A 1000 MRET1 T1=53mm (2.087”)
Bulk N/A 1000 MXG N/A
Bulk N/A 1000 MXB N/A
Bulk N/A 100 HX N/A
