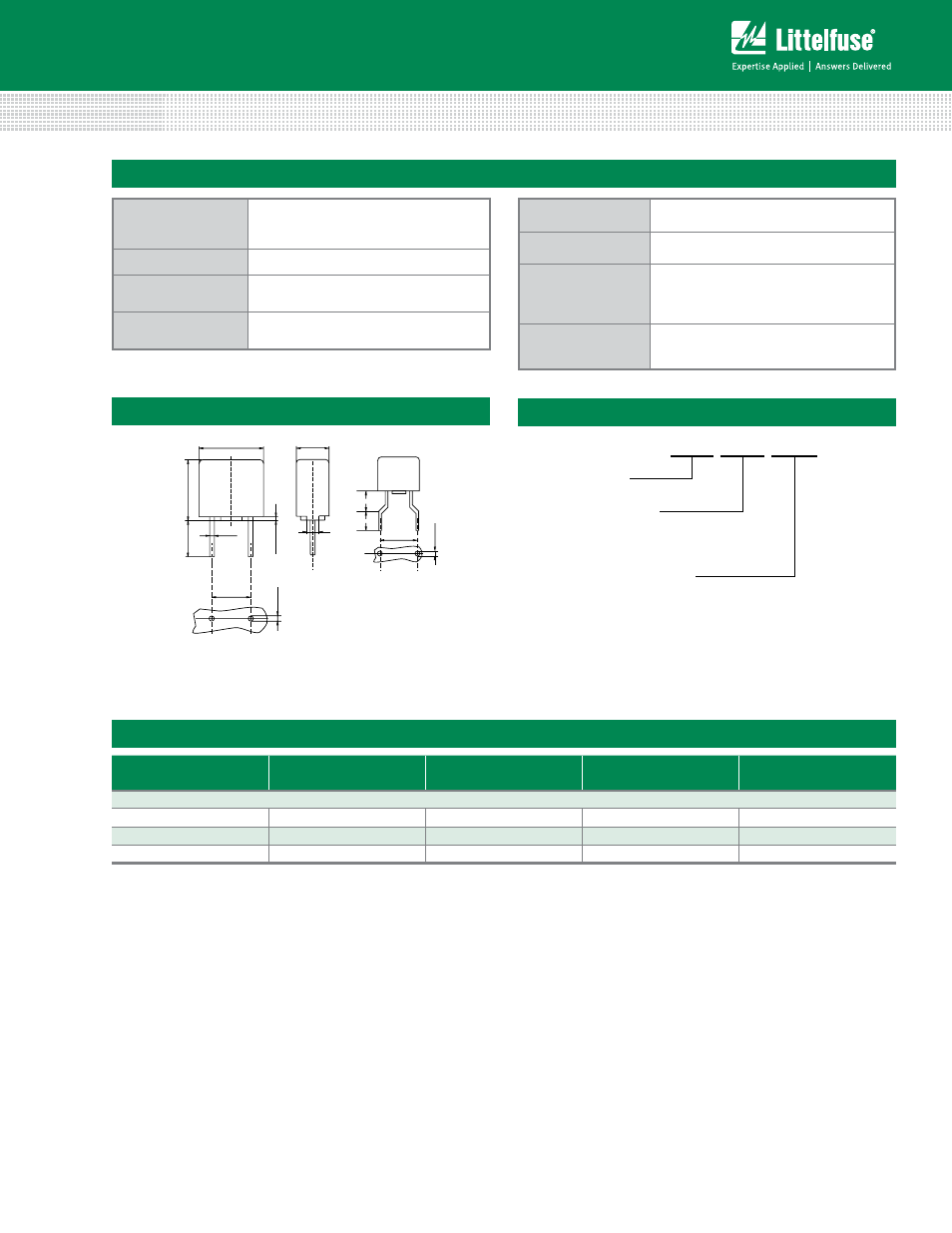

Radial Lead Fuses
TE5 ® > Time-Lag > 400 Series
Materials
Base/Cap: Brown Thermoplastic
Polyamide, UL 94 V-0
Round Pins: Copper, Tin-plated
Lead Pull Strength 10 N (IEC 60068-2-21)
Solderability
260ºC, ≤ 3s. (Wave)
350ºC, ≤ 1s. (Soldering Iron)
Soldering Heat
Resistance 260ºC, 10s. (IEC 60068-2-20)
350ºC, 3s. (Soldering Iron)
Product Characteristics
Operating
Temperature
–40ºC to +85ºC (consider derating)
Climatic Category
–40ºC to +85ºC/21 days
(EN 60068-1, -2-1, -2-2, -2-78)
Stock Conditions
+10ºC to +60ºC
relative humidity 75% yearly average,
without dew, maximum value for 30 days
– 95%
Vibration
Resistance
24 cycles at 15 min. each (EN60028-2-6)
10–60 Hz at 0.75 mm amplitude
20–2000 Hz at 10 g acceleration
Dimensions Part Numbering System
Packaging
packaging Option packaging Specification Quantity
Quantity &
packaging Code
Taping Width
400 Series
Tape & Ammopack N/A 1,400 0000 N/A
Short Leads N/A 1,400 0440 N/A
7.5 mm Pitch N/A 1,400 0075 N/A
0400 xxxx 0000
Series
Packaging Code
0000 Tape/Ammopack (1,400 pcs)
0440 Shortleads - Bulk (1,400 pcs)
0075 7.5mm pitch - Bulk (1,400 pcs)
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
8.5
0.5 mi
n
max.
8
L
Ø 0.6
5.08
Holes in PCB
Long Leads (L=18.8±0.3mm)
Short Leads (L=4.3±0.3mm)
Holes in PCB
7.5mm Pitch
1 +0
.1
7.5±0.3
1 +0
.1
1.5
4.0±1.0
4.0±0.5
max. 4
