Axial Lead & Cartridge Fuses
5×20 mm > Medium-Acting > 232 Series
Materials
Body: Glass
Cap: Nickel–plated brass
Leads: Tin–plated Copper
Terminal Strength
MIL-STD-202G, Method 211A.
Test Condition A
Solderability
Reference IEC 60127 Second Edition
2003-01 Annex A
Product Marking
Cap 1: Brand log, current and voltage
ratings, and agency approval
Cap 2: Blank
Packaging
Available in Bulk (M=1000 pcs/pkg) or on
Tape/Reel (MRET1=1000 pcs/reel)
Product Characteristics
Operating Temperature –55ºC to +125ºC
Thermal Shock
MIL-STD-202G, Method 107G, Test
Condition B: (5 cycles –65 O C +
125 O C)
Vibration MIL-STD-202G, Method 201A
Humidity
MIL-STD-202G, Method 103B, Test
Condition A high RH (95%) and
elevated temperature (40 O C) for 240
hours.
Salt Spray
MIL-STD-202G, Method 101D, Test
Condition B

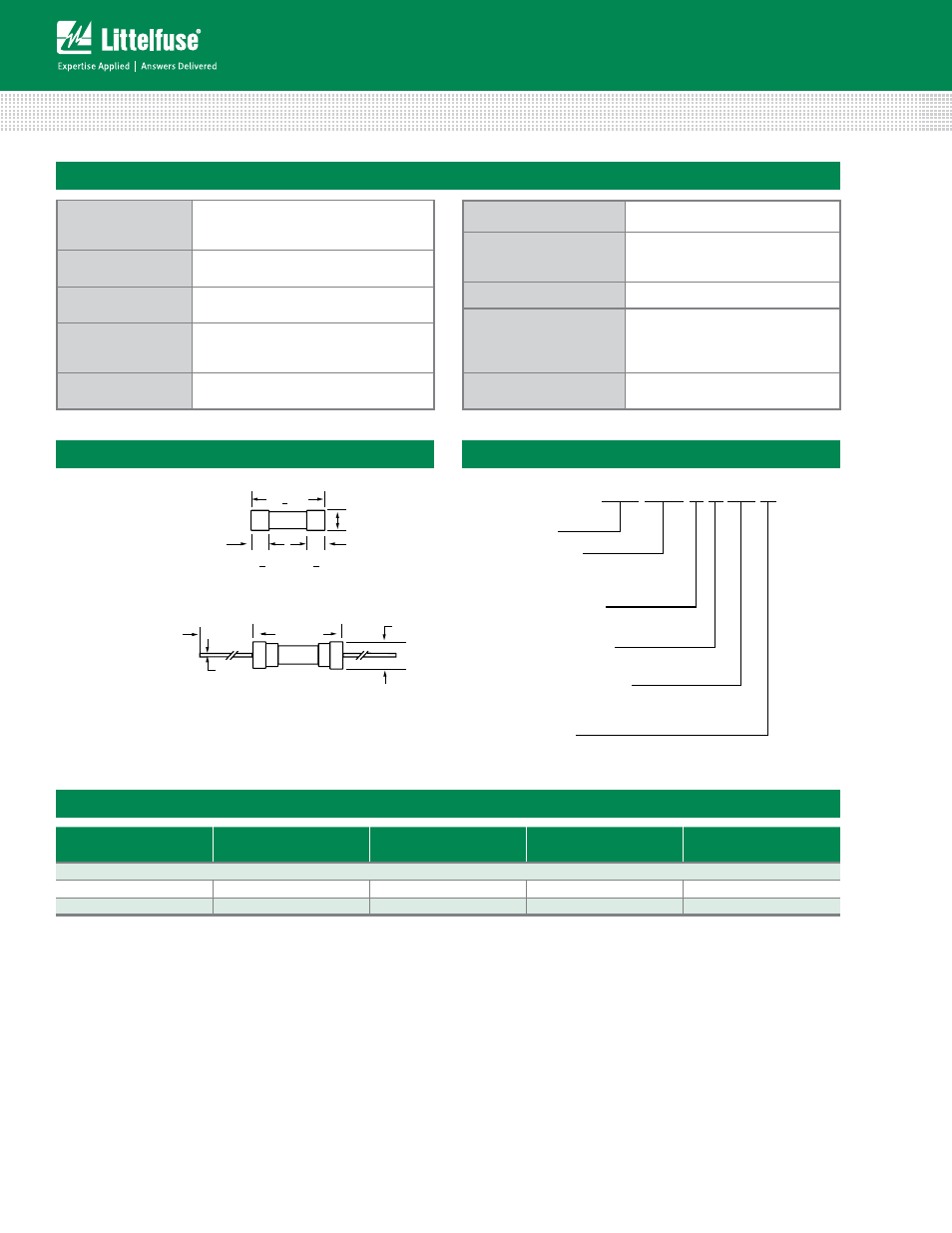

0232 000P
0232 000 XEP
20+0.5
5.1+0.6
5.2+0.1
-0.2
5.1+0.6
0.65*
40 22.5 MAX
5.8 MAX
All dimensions in mm
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
Dimensions
Packaging
packaging Option packaging Specification Quantity
Quantity &
packaging Code
Taping Width
232 Series
Bulk N/A 1000 MX N/A
Bulk N/A 1000 MXE N/A
Part Numbering System
0232 M X 125 P xxxx
Lead-free
Packaging Code
Quantity Code
Amp Code
Series
X = Filler
Under Option Code
125 = To order 125Vac rated fuse
Blank = 250Vac rated fuse
M = 1000
Refer to Amp Code column of
Electrical Characteristics Table
