Axial Lead & Cartridge Fuses
TE5 ® >Time Lag > 389 Series
Product Characteristics
8.5
0.5 min
max.
8
18.8
∅0.6
5.08
Löcher in der Leiterplatte
Holes in the printed circuit board
1 +0.1
1.5
max.4

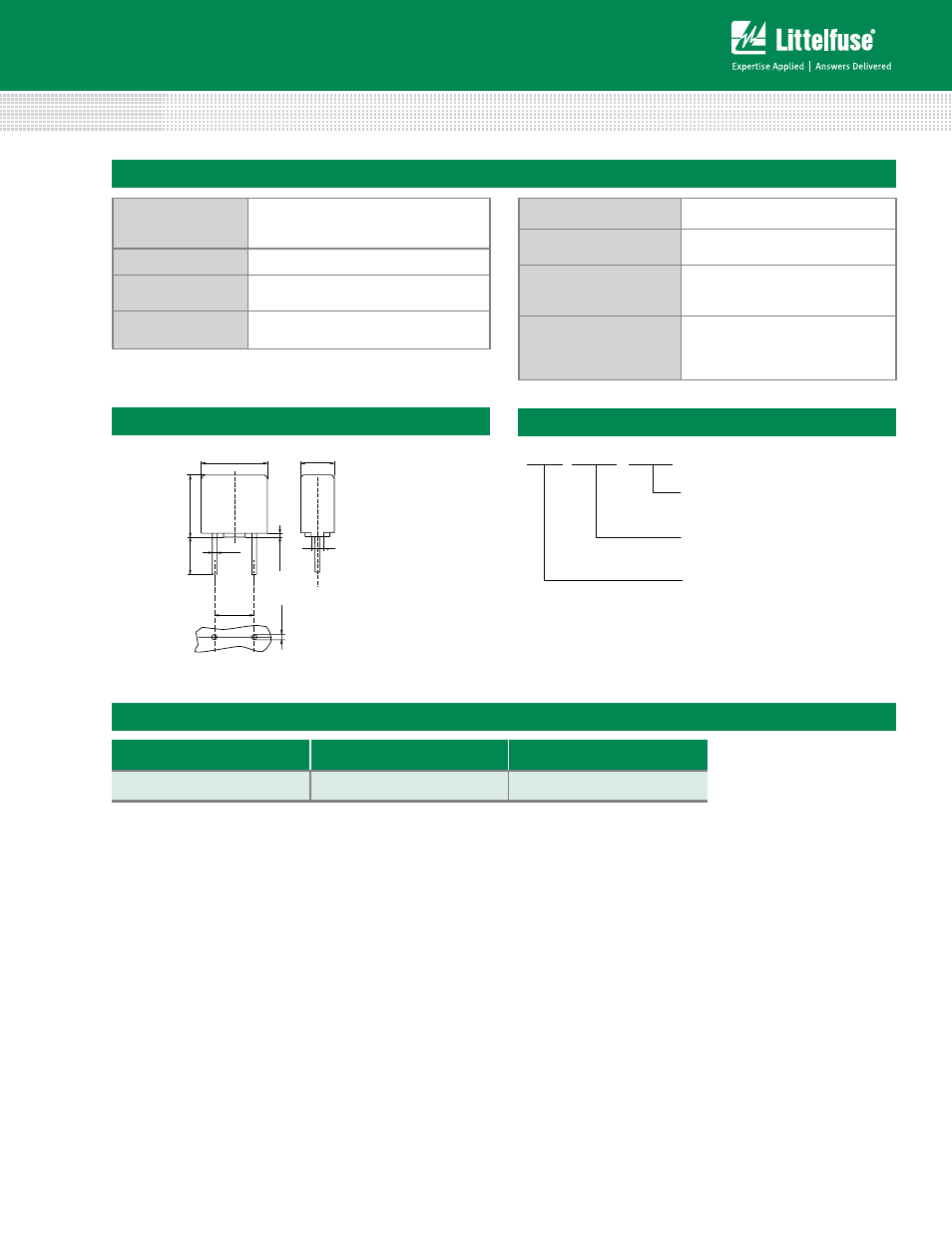

Dimensions Part Numbering System
Holes in PCB
Operating Temperature –40ºC to +85ºC (consider de-rating)
Climatic Category
–25ºC/+70ºC/21 days
(EN 60068-1..3)
Stock Conditions
+10ºC to +60ºC RH,
≤ 75% yearly average, without dew,
maximum value for 30 days-95%
Vibration Resistance
24 cycles at 15 min. each
(EN 60068-6)
10 - 60 Hz at 0.75 mm amplitude
60 - 2000 Hz at 10 g acceleration
Materials
Base/Cap: Brown Thermoplastic
Polyamide PA 6.6, UL 94V-0
Round Pins: Copper, Tin–plated
Lead Pull Strength 10N (EN 60068-2-21)
Solderability
260ºC, ≤ 3 sec. (Wave)
350ºC, ≤ 1 sec. (Hand)
Soldering Heat
Resistance
260ºC, 10 sec. (IEC 60068-2-20)
389 0060
Series
Amp. Code
000
packaging Code
(See electrical Characteristics Chart)
000 Tape/Ammopack (1,400 pcs.)
Packaging
packaging Code packing Option Quantity
000 Tape/Ammopack 1400
