Axial lead & cartridge fuses – Littelfuse 215 Series User Manual
Page 4
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/21/14
Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 215 Series
Packaging
Packaging Option
Packaging Specification
Quantity
Quantity &
Packaging Code
Taping Width
215 Series
Bulk
N/A
1000
MX
N/A
Bulk
N/A
1000
MXE
N/A
Reel and Tape
N/A
1000
MRET1
T1=53mm (2.087”)
Bulk and Color Coding
N/A
1000
MXG
N/A
Bulk
N/A
1000
MXB
N/A
Bulk
N/A
100
HX
N/A

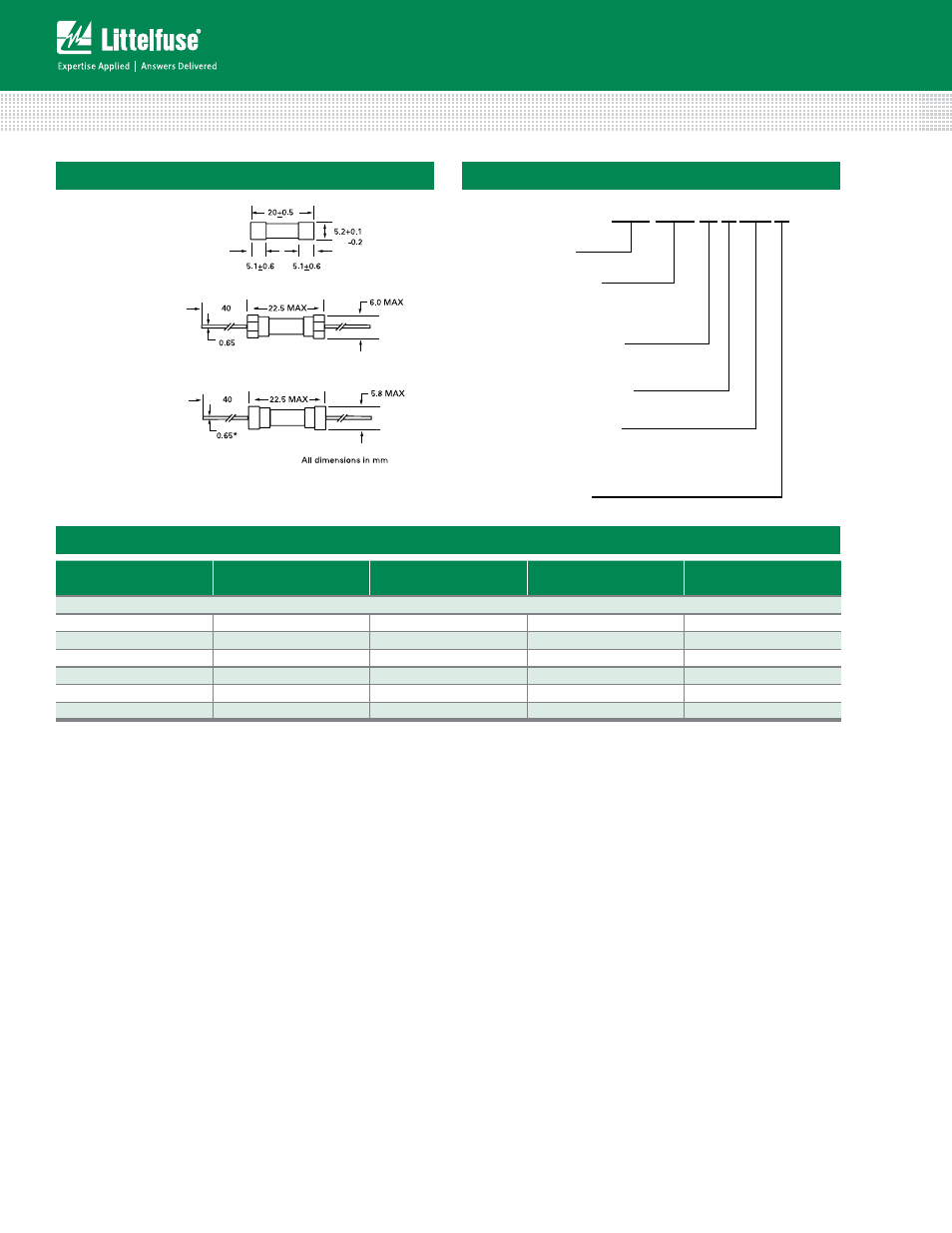

Dimensions
0215.125P
to
0215020P
0215.125XEP
to
0215.800XEP
0215001.XEP
to
0215020.XEP
* Ratings above 6.3 A have 0.8 mm diameter lead;
ratings above 12 A have 1.2 mm diameter lead
Part Numbering System
0215 xxxx M X E/G P
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
Lead-free
Quantity Code
M = 1000
Option Codes
Blank : Cartidge Type Fuse
E
: Axial Lead Fuse
G : Color Coding
Packaging Code
X = Filler
