Power Distribution Centers

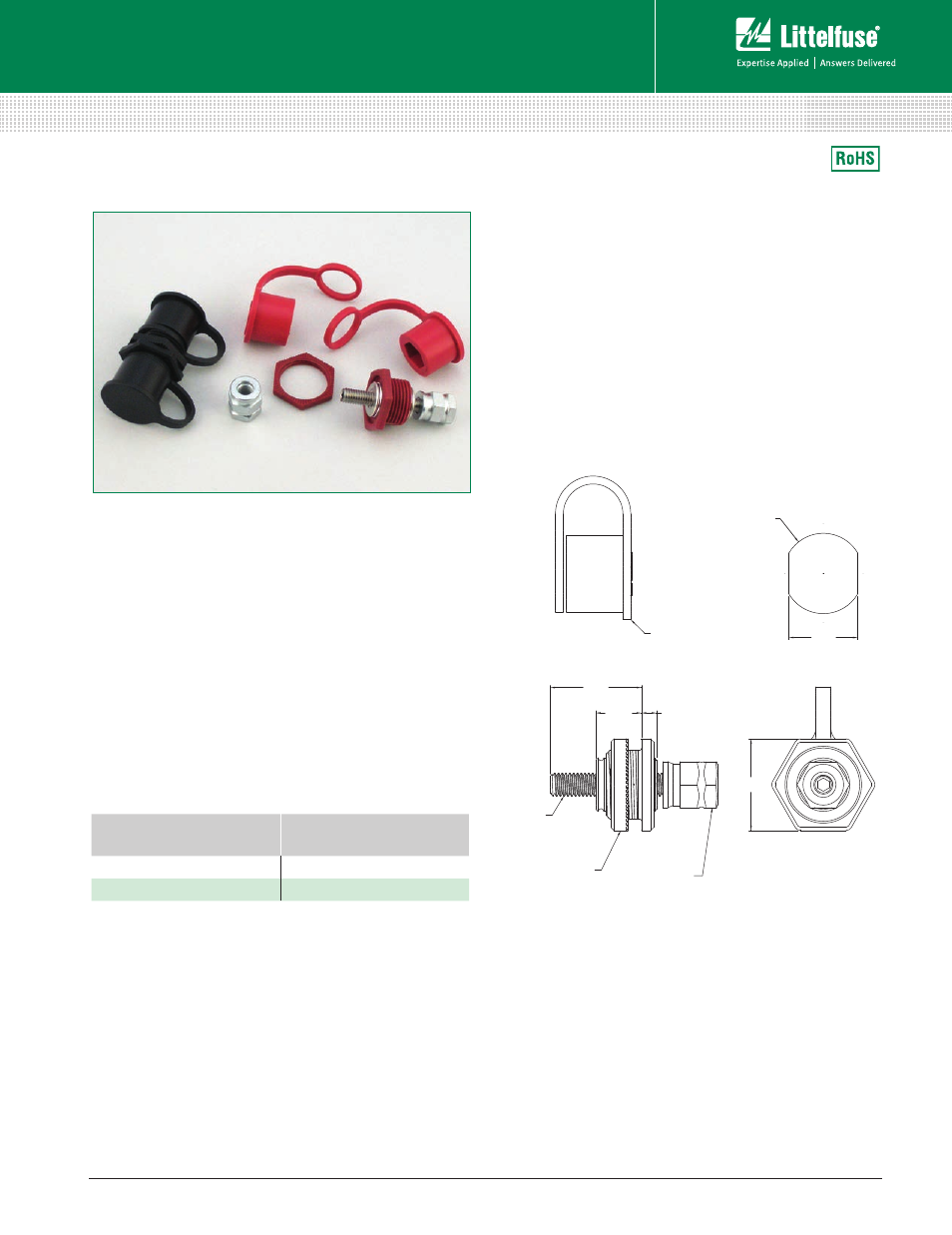

HIGH CURRENT SINGLE STUD FEED-THRU
Dimensions
Dimensions in mm
Description
Our 3/8” pass-thru stud has a high electrical rating and low
resistance due to a large cross-sectional contact area. It also uses
highly conductive materials to outperform the competition.
This pass-thru stud boasts high installation torque values to allow
the use of large cable sizes for high current applications. Stud caps
are included to protect from accidental shorts.
The pass-thru stud is available with red or black body and stud cap
to help color-code circuits in the vehicle. A plastic body locknut
ensures quick and easy firewall-mount installation without the
need for additional hardware.
Specifications
Rating: 400A
Locknut Torque: 54.2 Nm
Body Mounting Nut Torque: 13.6 Nm
Materials: Body-Nylon 66 (120˚C)
Contact - Copper 110
Studs - Zinc-plated steel
Locknut - Zinc-plated steel
Body nut - Nylon 66
Stud caps - PVC
Operating Temperature Range: -40˚C - 125˚C
Ratings
Part Number Color
JBPT0001Z Red
JBPT0002Z Black
38.1
[1.50]
38.1
[1.50]
19.1
[0.75]
6.4
[0.25]
3/8-16 NUT
USED ON BOTH
SIDES OF BLOCK
3/8-16 BOLTS
PLASTIC BODY
LOCKNUT
STUD CAPS
USED ON BOTH
SIDES OF BLOCK
R16.7
[R0.66]
28.7
[1.13]
TYPICAL PANEL CUTOUT
