Littelfuse 1206L Series - Manual (Page 4)

POLY-FUSE ® Resettable PTCs
© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/05/13
Surface Mount > 1206L Series

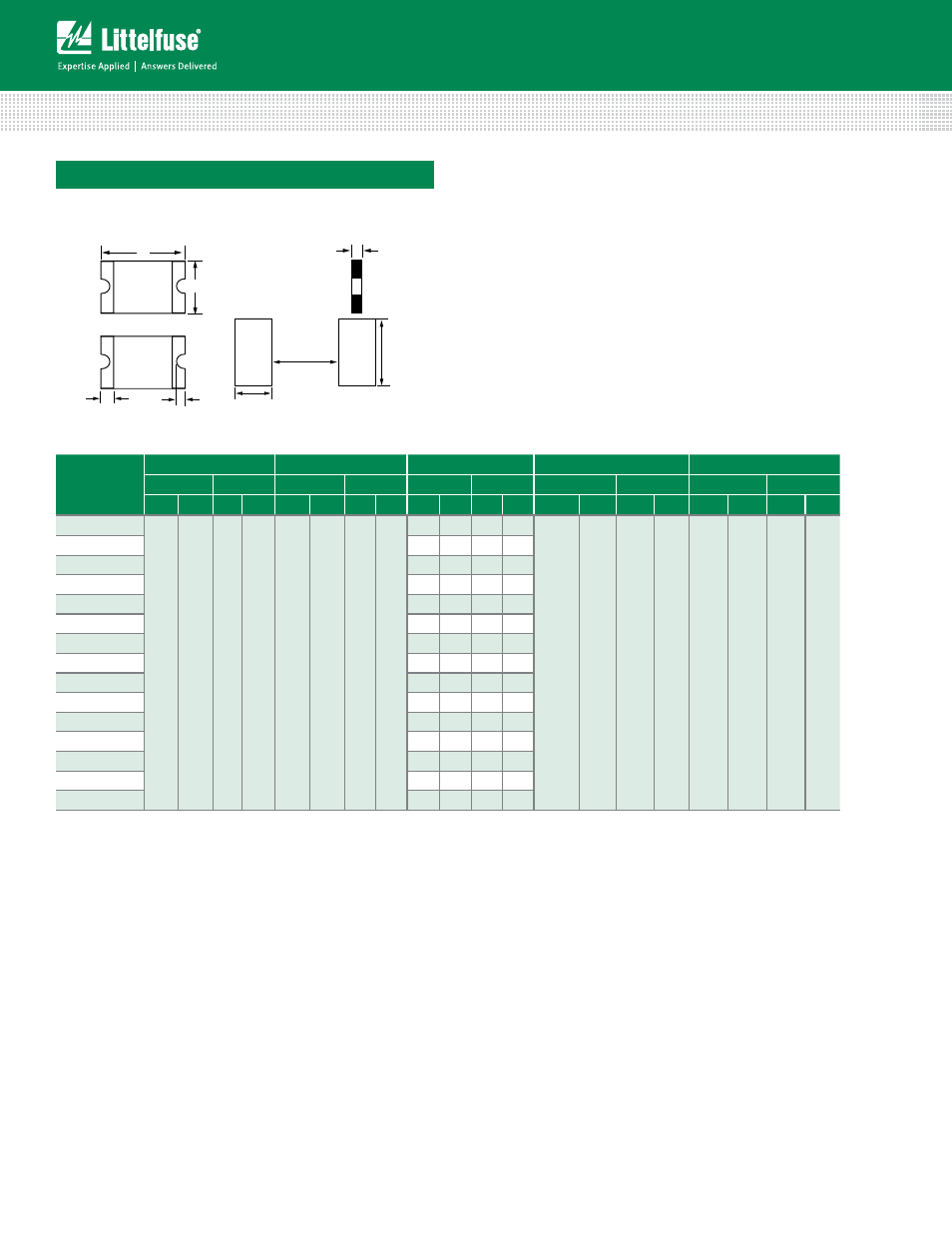

Dimensions
Part
Number
A B C D E
Inches mm Inches mm Inches mm Inches mm Inches mm
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
1206L012
0.12 0.13 3 3.4 0.06 0.07 1.5 1.8
0.03 0.06 0.65 1.45
0.01 0.03 0.25 0.75 0.002 0.018 0.05 0.45
1206L016 0.03 0.06 0.65 1.45
1206L020 0.02 0.04 0.5 1
1206L025 0.02 0.04 0.5 1
1206L035 0.02 0.03 0.45 0.75
1206L035/16 0.02 0.03 0.45 0.75
1206L050 0.02 0.03 0.45 0.75
1206L050/15 0.02 0.03 0.45 0.75
1206L075/13.2 0.03 0.05 0.75 1.25
1206L075/16 0.03 0.05 0.75 1.25
1206L075TH 0.02 0.03 0.45 0.75
1206L110TH 0.01 0.02 0.30 0.60
1206L150TH 0.02 0.04 0.50 1
1206L175 0.03 0.08 0.80 1.8
1206L200 0.03 0.07 0.80 1.6
C
Top
View
Pad
Layout
Side
View
Bottom
View
1.80 mm
(.071)
1.80 mm
(.071)
1.00 mm
(.040)
D
MARKING CODE VARIES
WITH AMPERAGE RATING
(SEE ELECTRICAL CHARACTERISTICS CHART)
SHOWN IS 1.0 AMP RATING
E
A
B
N
N
