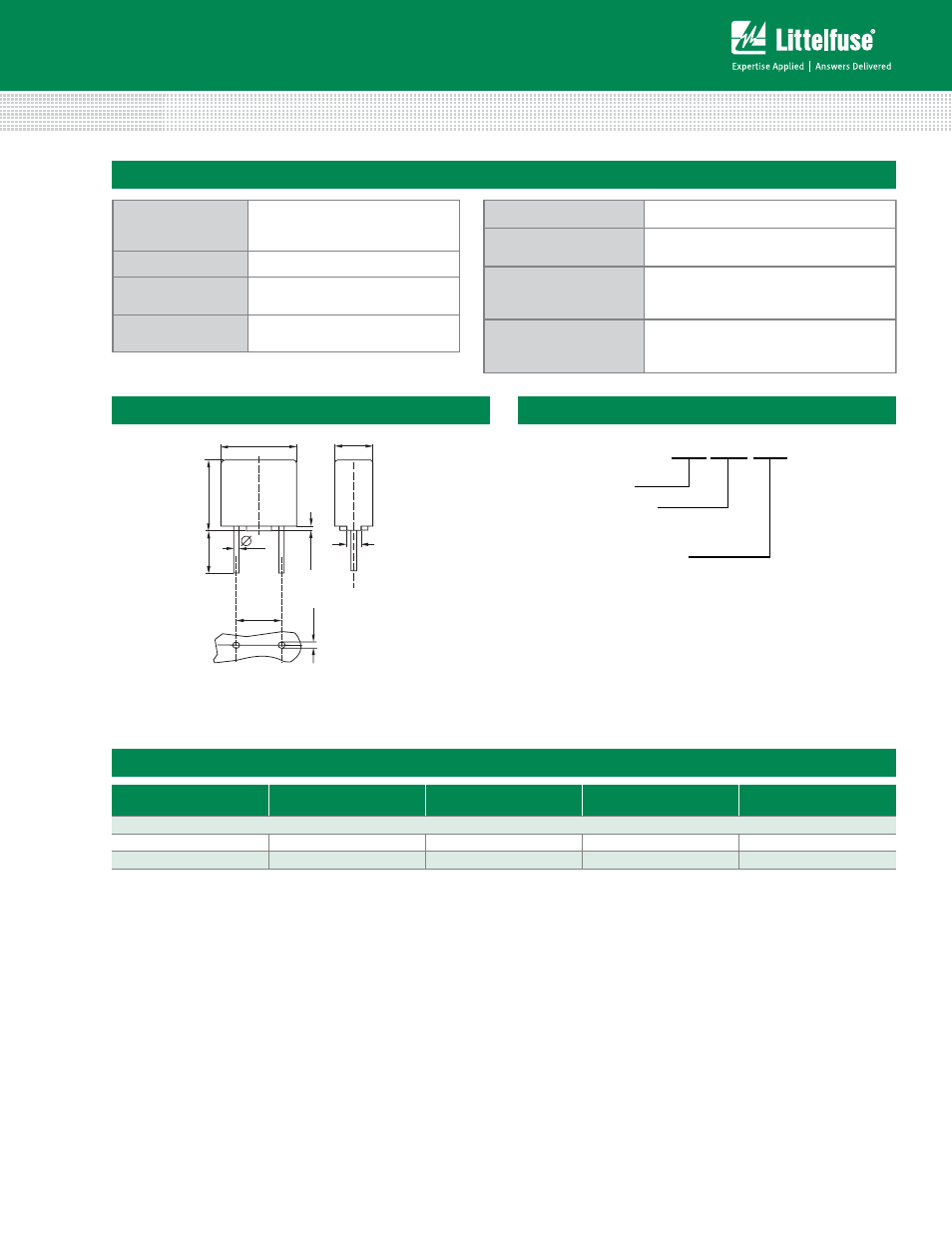

Littelfuse 369 Series - Manual (Page 3)

© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/19/13
Radial Lead Fuses
TE5 ® > Time-Lag > 369 Series
Packaging
Packaging Option Packaging Specification
Quantity &
Packaging Code
Taping Width Quantity
369 Series
Tape & Ammopack
Short Leads
0000
0440 1,400
1,400 N/A
N/A N/A
N/A
Dimensions Part Numbering System
369 xxxx 0000
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
Packaging Code
0000 Tape/Ammopack (1,400pcs.)
0440 Short Leads - Bulk (1,400pcs.)
8.5 max.4
5.08
0.6
1.5
Holes in PCB
1
+
0.
1
0.
5
m
in
2
m
ax
. 8
Long Leads (L=18.8mm)
Short Leads (L=4.3mm)
Climatic Category
-40°C / +85°C / 21days
(EN60068-1,-2-1,-2-2,-2-78)
Stock Condition
+10°C to +60°C
relative humidity 75% yearly average,
without dew, maximum value for 30 days-95%
Vibration Resistance
24 cycles at 15min. Each (EN60068-2-6)
10 - 60 Hz at 0.75 mm amplitude
60 - 2000 Hz at 10g acceleration
Product Characteristics
Operating Temperature -40°C to +85°C (considerde-rating)
Materials
Base/Cap: Brown Thermoplastic
Polyamide PA6.6, UL 94 V0
Round Pins: Tin-plated Copper
Lead Pull Strength 10 N (IEC 60068-2-21)
Solderability
260°C, ≤ 3s (Wave)
350°C, ≤ 1s (Soldering Iron)
Soldering Heat
Resistance 260°C, 10s (IEC60068-2-20)
350°C, 3s (Soldering Iron)
