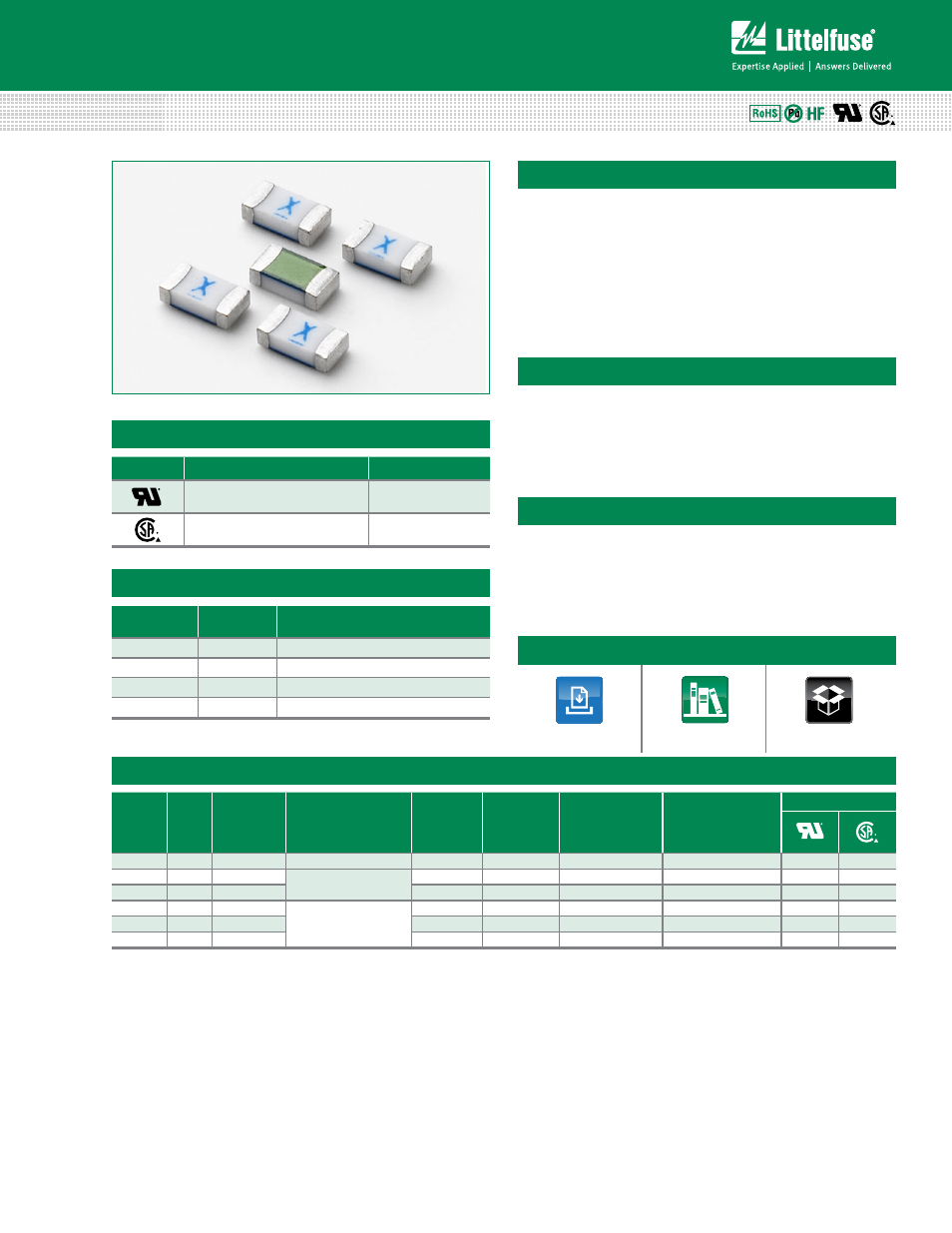

Surface Mount Fuses
Ceramic Fuse > 469 Series
469 Series – 1206 Slo-Blo ® Fuse
Description
The 469 Series is a 100% Lead-free, RoHS compliant and
Halogen-free fuse series designed specifically to provide
over-current protection to circuits that operate under high
working ambient temperature up to 150ºC.
The general design ensures excellent temperature stability
and performance reliability.
The high I²t values, typical in the Littelfuse Ceramic fuse
family, ensure high inrush current withstand capability.
Agency Approvals
Agency Agency File number Ampere rAnge
e10480 2A – 8A
lr29862 2A – 8A
Features
Electrical Characteristics for Series
• Operating Temperature
from -55ºC to +150ºC
• 100% Lead-free, RoHS
compliant and Halogen-
free
• Suitable for both leaded
and lead-free reflow /
wave soldering
% of Ampere
rating
Ampere
rating
Opening Time at 25ºc
100% 2A – 8A 4 hours, Minimum
200% 2A – 8A 1 sec., Min.; 120 secs., Max.
300% 2A – 8A 0.1 sec., Min.; 3 secs., Max.
800% 2A – 8A 0.002 sec., Min.; 0.05 sec., Max.
Applications
Ampere
rating
(A)
Amp
code
max.
Voltage
rating (V)
interrupting rating
nominal
resistance
(Ohms) 2
nominal
melting i 2 t
(A 2 Sec.) 3
nominal Voltage
Drop At rated
current (V) 4
nominal power
Dissipation At
rated current (W)
Agency Approvals
2 002. 63 50 A @ 63 VDC 0.166 0.595 0.455 0.91 x x
4 004. 32
60 A @ 32 VDC
0.052 3.560 0.236 0.944 x x
5 005. 32 0.035 5.620 0.216 1.080 x x
6 006. 24
60 A @ 24 VDC
0.028 9.410 0.274 1.640 x x
7 007. 24 0.021 14.400 0.216 1.510 x x
8 008. 24 0.017 23.720 0.233 1.860 x x
Electrical Specifications by Item
Notes:
1. AC Interrupting Rating tested at rated voltage with unity power factor. DC Interrupting
Rating tested at rated voltage with time constant < 0.8 msec.
2. Nominal Resistance measured with < 10% rated current.
3. Nominal Melting I²t measured at 1 msec opening time.
4. Nominal Voltage Drop measured at rated current after temperature has stabilized.
• LCD Displays
• Servers
• Notebook Computers
• Printers • Scanners
• Data Modems
• Gaming Consoles
Devices designed to carry rated current for 4 hours minimum. It is recommended that
devices be operated continuously at no more than 80% rated current. See “Temperature
Rerating Curve”for additional rerating information.
Devices designed to be mounted with marking code facing up.
Additional Information
Datasheet Samples Resources
