SIDACtor ® Protection Thyristors
158
Revised: February 22, 2011
© 2011 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Baseband Protection (Voice-DS1)
Description

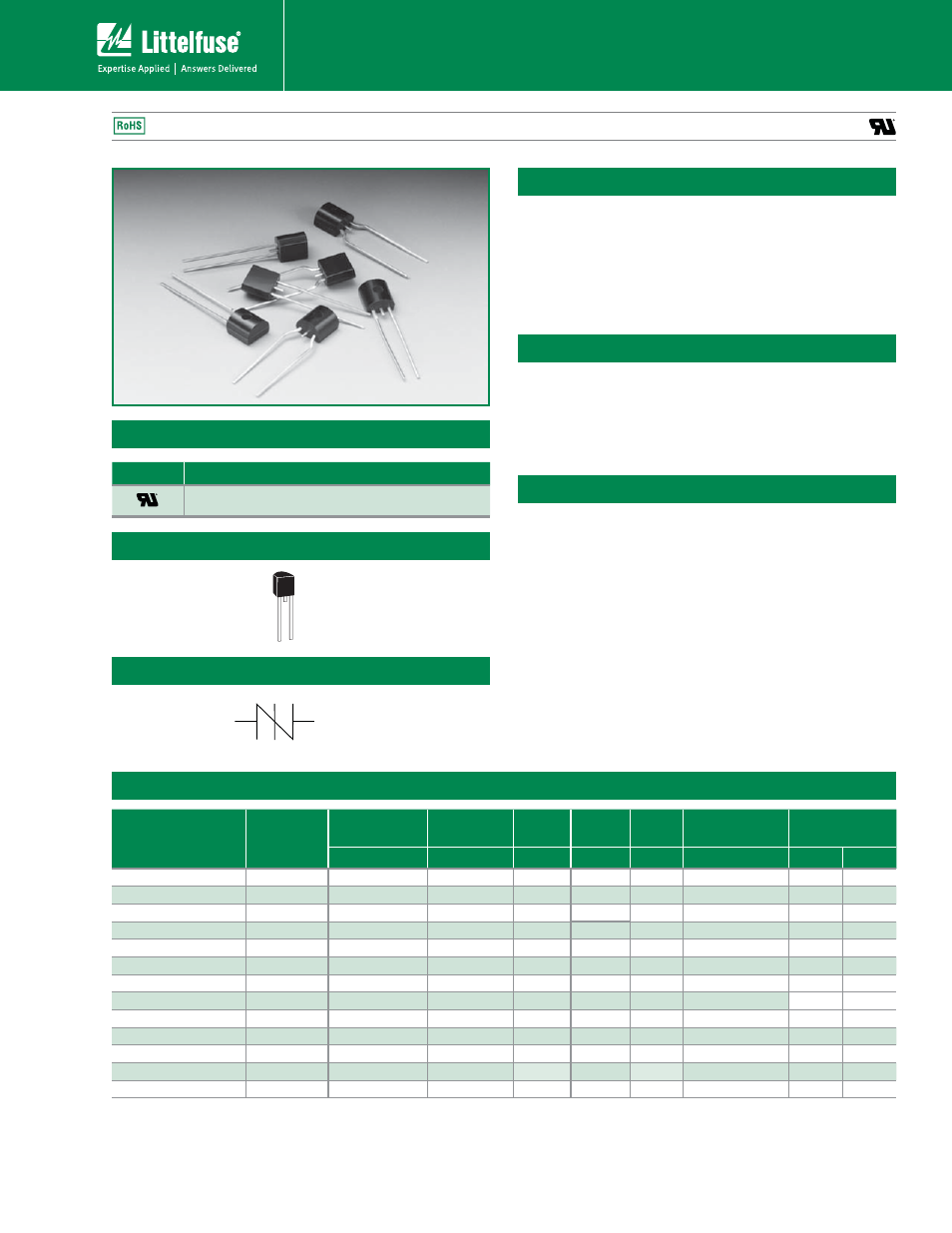

SIDACtor ® Series - TO-92
SIDACtor ® Series TO-92 are designed to protect
baseband equipment such as modems, line cards, CPE
and DSL from damaging overvoltage transients.
The series provides a robust through-hole solution that
enables equipment to comply with global regulatory
standards.
Electrical Characteristics
Features and Benefits
t Low voltage overshoot
t Low on-state voltage
t Does not degrade with
use
t Fails short circuit when
surged in excess of
ratings
t Low Capacitance
Agency Approvals
Agency Agency File Number
E133083
Schematic Symbol
Pinout Designation
Part Number Marking
V
DRM
@l
DRM
=5μA
V
S
@100V/μs
I
H
I
S
I
T
V
T
@I
T
=2.2 Amps
Capacitance
@1MHz, 2V bias
V min V max mA min mA max A max V max pF min pF max
P0080EALxxx P0080EA 6 25 50 800 2.2 4 25 150
P0300EALxxx P0300EA 25 40 50 800 2.2 4 15 140
P0640EALxxx P0640EA 58 77 150 800 2.2 4 40 60
P0720EALxxx P0720EA 65 88 150 800 2.2 4 35 60
P0900EALxxx P0900EA 75 98 150 800 2.2 4 35 55
P1100EALxxx P1100EA 90 130 150 800 2.2 4 30 50
P1300EALxxx P1300EA 120 160 150 800 2.2 4 25 45
P1500EALxxx P1500EA 140 180 150 800 2.2 4 25 40
P1800EALxxx P1800EA 170 220 150 800 2.2 4 25 35
P2300EALxxx P2300EA 190 260 150 800 2.2 4 25 35
P2600EALxxx P2600EA 220 300 150 800 2.2 4 20 35
P3100EALxxx P3100EA 275 350 150 800 2.2 4 20 35
P3500EALxxx P3500EA 320 400 150 800 2.2 4 20 35
Applicable Global Standards
t TIA-968-A
t TIA-968-B
t ITU K.20/21 Enhanced
Level*
t ITU K.20/21 Basic Level
t GR 1089 Inter-building*
t GR 1089 Intra-building
t IEC 61000-4-5
t YD/T 1082
t YD/T 993
t YD/T 950
* A/B-rated parts require series resistance
Pin 1 Pin 3
Table continues on next page.
