Teccor ® brand Thyristors
35 Amp Standard SCRs
Sxx35x Series
Product Selector
Part Number
Voltage
Gate Sensitivity Type Package
400V 600V 800V 1000V
Sxx35K X X X X 40mA Standard SCR TO-218AC
Sxx35J X X X 40mA Standard SCR TO-218X
Note: xx = Voltage
Packing Options
Part Number Marking Weight Packing Mode Base Quantity
Sxx35KTP Sxx35K 4.40g Tube 250 (25 per tube)
Sxx35JTP Sxx35J 5.23g Tube 250 (25 per tube)
Note: xx = Voltage

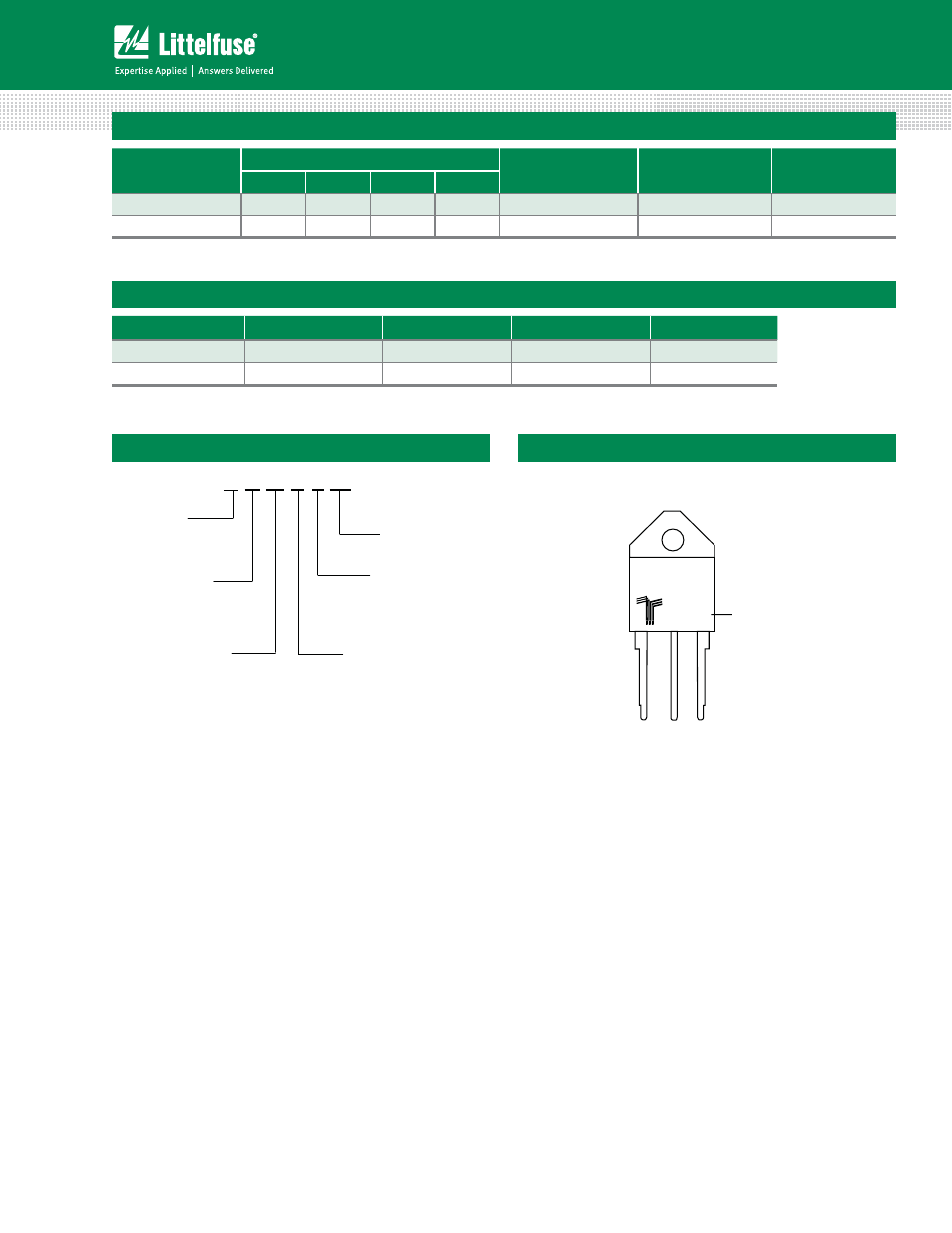

Part Numbering System Part Marking System
TO-218 AC - (K Package)
TO-218 X - (J Package)
®
YMLXX
S6035K
Date Code Marking
Y:Year Code
M: Month Code
L: Location Code
XX: Lot Serial Code
81
DEVICE TYPE
S: SCR
xx: Lead Form Option
PACKAGE TYPE
K: TO-218AC (Isolated)
J: TO-218X (Isolated) CURRENT RATING
Lead Form Dimensions
35: 35A
VOLTAGE RATING
40: 400V
60: 600V
80: 800V
K0: 1000V
SENSITIVITY & TYPE
S 60 35 K
[blank]: 40mA
