Axial Lead & Cartridge Fuses
3AB > Time Lag > 325/326 Series

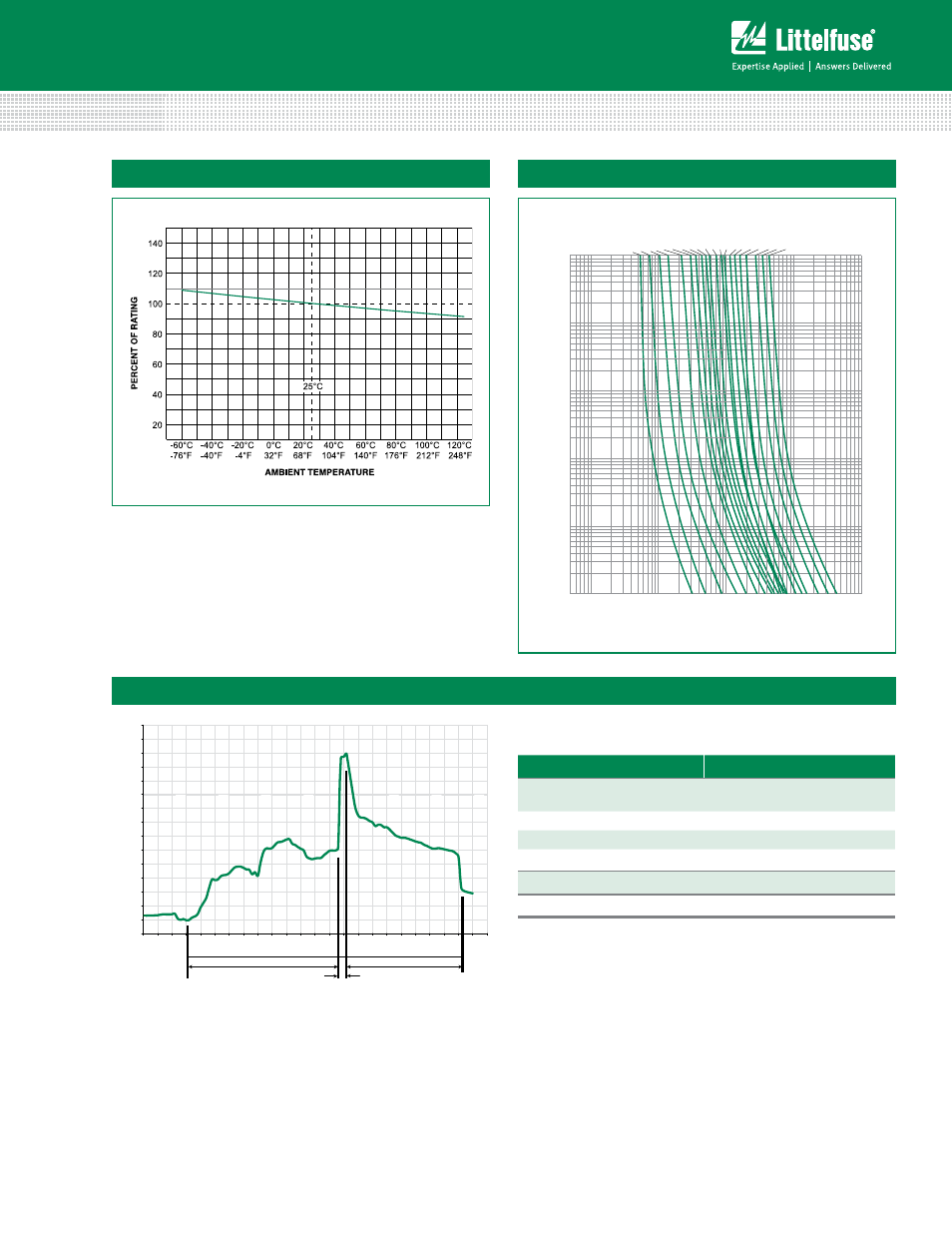

Average Time Current Curves
1000
100
10
1
0.1
0.01
10
CURRENT IN AMPERES
TIME IN SECONDS
100 1000 0.1 1 0.05
5.0A 4.0A 3.5A 3.0A 2.5A 2.0A 1.5A 1.0A
.750A .500A .375A
20.0A 15.0A 12.0A 10.0A 8.0A 7.0A 6.25A 30.0A 25.0A
Temperature Rerating Curve
Soldering Parameters - Wave Soldering
Dwell Time
0
20
40
60
80
100
120
140
160
180
200
220
240
260
280
300
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240
Time (Seconds)
Temperature (°C) - Measured on bottom side of board
Cooling Time Preheat Time
Wave parameter lead-Free Recommendation
preheat:
(Depends on Flux Activation Temperature) (Typical Industry Recommendation)
Temperature Minimum: 100 ° C
Temperature Maximum: 150 ° C
Preheat Time: 60-180 seconds
Solder pot Temperature: 260 ° C Maximum
Solder Dwell Time: 2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Recommended Process Parameters:
