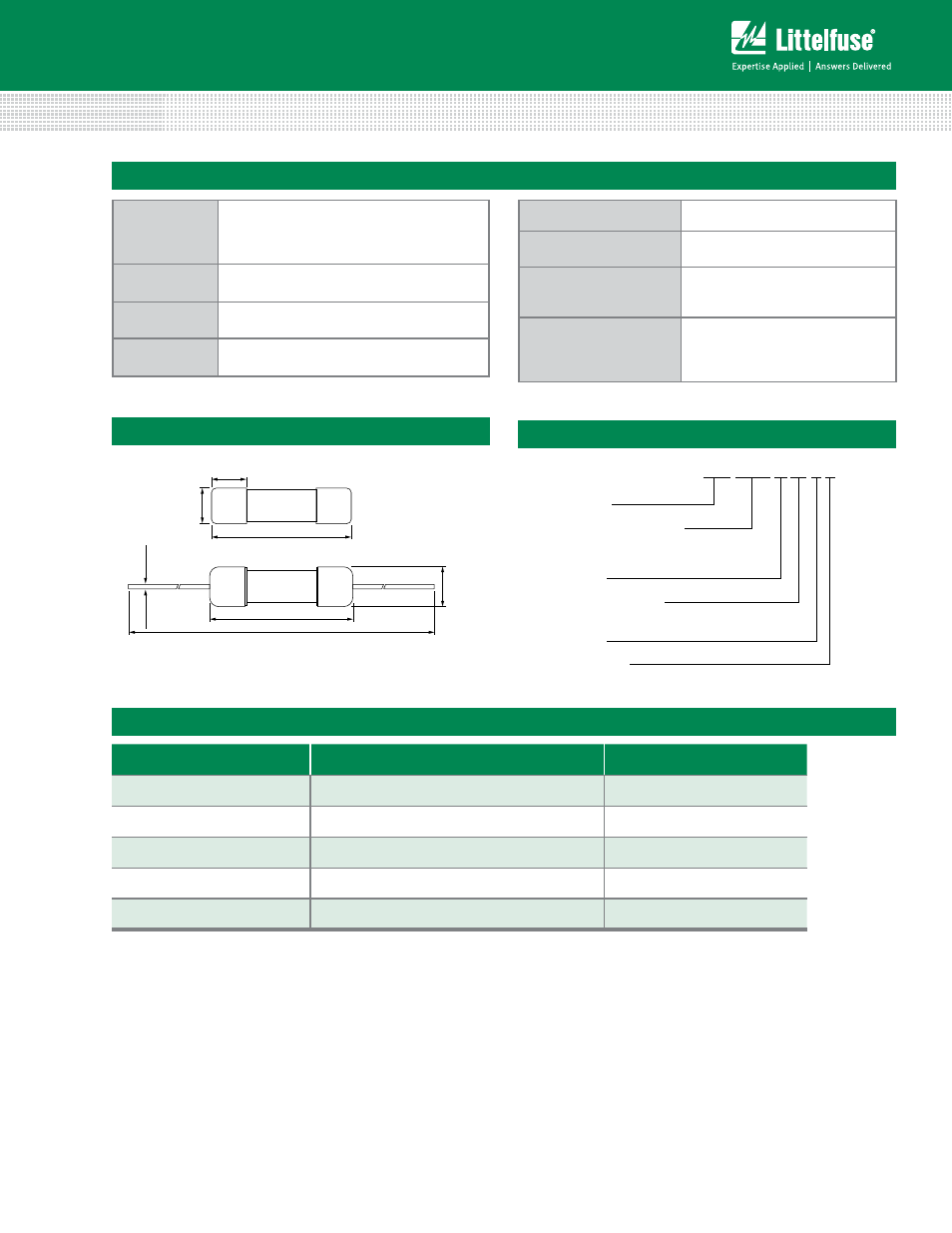

5×20mm > Medium Acting > 201P Series
Cartridge and Axial Lead Fuses
Product Characteristics
Operating Temperature -25ºC to +70ºC
Climatic Category
-25ºC/+70ºC/21 days
(EN 60068-1..3)
Stock Conditions
-10ºC to +60ºC RH,
≤ 75% yearly average, without dew,
maximum value for 30 days-95%
Vibration Resistance
24 cycles at 15 min. each
(EN 60068-2-6)
10 - 60 Hz at 0.75 mm amplitude
60 - 2000 Hz at 10 g acceleration
max. 5.5
0.65 +0.04/-0.01
20
+0.5/-0.5
21
+0.5/-0.5
103.5 max.
Ш 5.2 +0.1/-0.2
Ш 5.9
Optional Holders
Materials
Body: Glass
End Caps: Nickel–plated brass
Optional Holders: Nickel-plated caps
Tin-plated wires
Product
Marking Cap1: Brand mark, current and voltage ratings
Cap2: Series and agency approval marks
Solderability
260ºC, ≤ 3 sec. (Wave)
350ºC, ≤ 1 sec.. (Hand)
Soldering Heat
Resistance
260ºC, 10 sec. (IEC 68-2-20)
Dimensions
Packaging Code Packing Option Quantity
00 Bulk 1000
02 Bulk 100
30 Bulk with Four Color Code 1000
43 Tape and Reel 1250
53 Tape and Reel with Four Color Code 1250
Packaging
Part Numbering System
201 xxxx 0 xx 1 P
Current Rating Code
Series
Refer to Amp Code column of
Electrical Characteristics Table
Packaging Code
Refer to below Packaging
Filler
Filler
Lead-free
