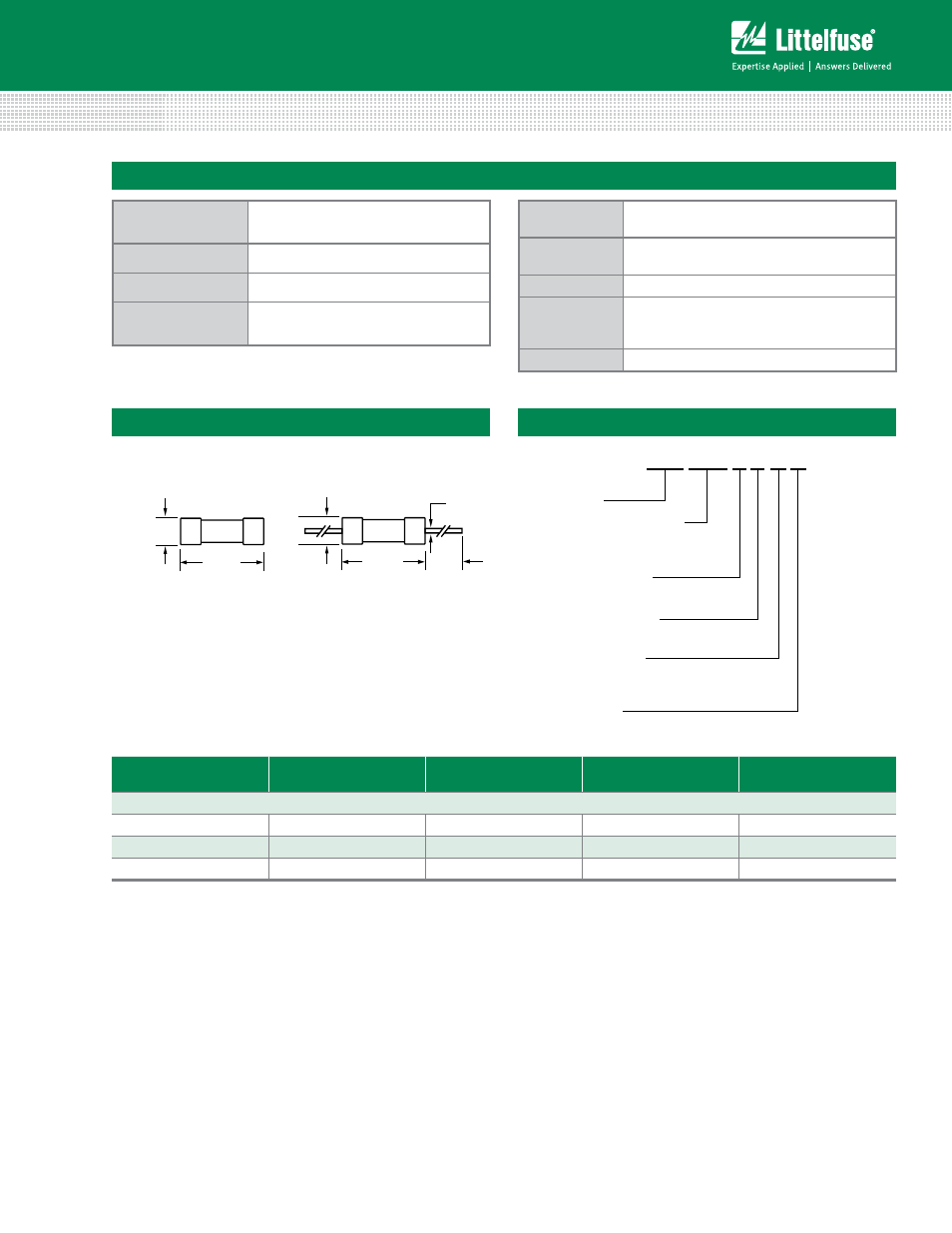

Axial Lead & Cartridge Fuses
2AG > Time Lag > 209 Series
Product Characteristics
Dimensions
Materials
Body : Glass
Cap : Nickel–plated brass
Leads: Tin–plated Copper
Terminal Strength
MIL-STD-202G, Method 211A,
Test Condition A
Solderability
Reference IEC 60127 Second Edition
2003-01 Annex A
Product Marking
Cap1 : Brand logo, current and voltage
ratings
Cap2 : Series and agency approval marks
Operating
Temperature: –55ºC to 125ºC.
Thermal
Shock: MIL-STD-202G, Method 107G, Test Condition B
(5 Cycles -65ºC to +125ºC).
Vibration MIL-STD-202G, Method 201A
Humidity MIL-STD-202G, Method 103B, Test Condition
A: High RH (95%) and elevated temp (40ºC)
for 240 hours
Salt Spray MIL-STD-202G, Method 101D, Test Condition B
209 000P Series 209 000EP Series
4.5
(.177")
14.48
(.57")
14.48
(.57")
4.7 (.184") .635
(.025")
38.1
(1.50") TYP.
Part Numbering System
Option Codes
Packaging Code
Quantity Code
Current Rating Code
Series
Blank = Cartridge Type Fuse
E = Axial Leaded Fuse
X = Loose Pack
M = 1000
Refer to Amp Code column of
Electrical Characteristics Table
0209 M X E P xxxx
Lead-free
packaging Option packaging Specification Quantity
Quantity & packaging
Code
Taping Width
209 Series
Bulk N/A 1000 MX N/A
Bulk N/A 1000 MXE N/A
Reel and Tape EIA 296-E 1500 DRT1 T1=53mm (2.087”)
