Axial Lead & Cartridge Fuses
5×20 mm > Medium-Acting > 234 Series
Materials
Body: Glass(1A-3.5A), Ceramic(4A-10A)
Cap: Nickel–plated brass
Leads: Tin–plated Copper
Filter: Sand (4A – 10A)
Terminal Strength
MIL-STD-202G, Method 211A, Test
Condition A
Solderability
Reference IEC 60127 Second Edition
2003-01 Annex A
Product Marking
Cap 1: Brand logo, current and voltage
rating
Cap 2: Series and agency approval
markings
Packaging
Available in Bulk (V=5, H=100, M=1000
pcs/pkg) or on Tape/Reel (MRET1=1000
pcs/reel)
Operating Temperature –55ºC to +125ºC
Thermal Shock
MIL-STD-202G, Method 107G, Test
Condition B: (5 cycles –65ºC to
+125ºC)
Vibration MIL-STD-202F Method 201A
Humidity
MIL-STD-202G, Method 103B, Test
Condition A. high RH (95%) and
elevated temp (40ºC) for 240 hours
Salt Spray
MIL-STD-202G, Method 101D, Test
Condition B

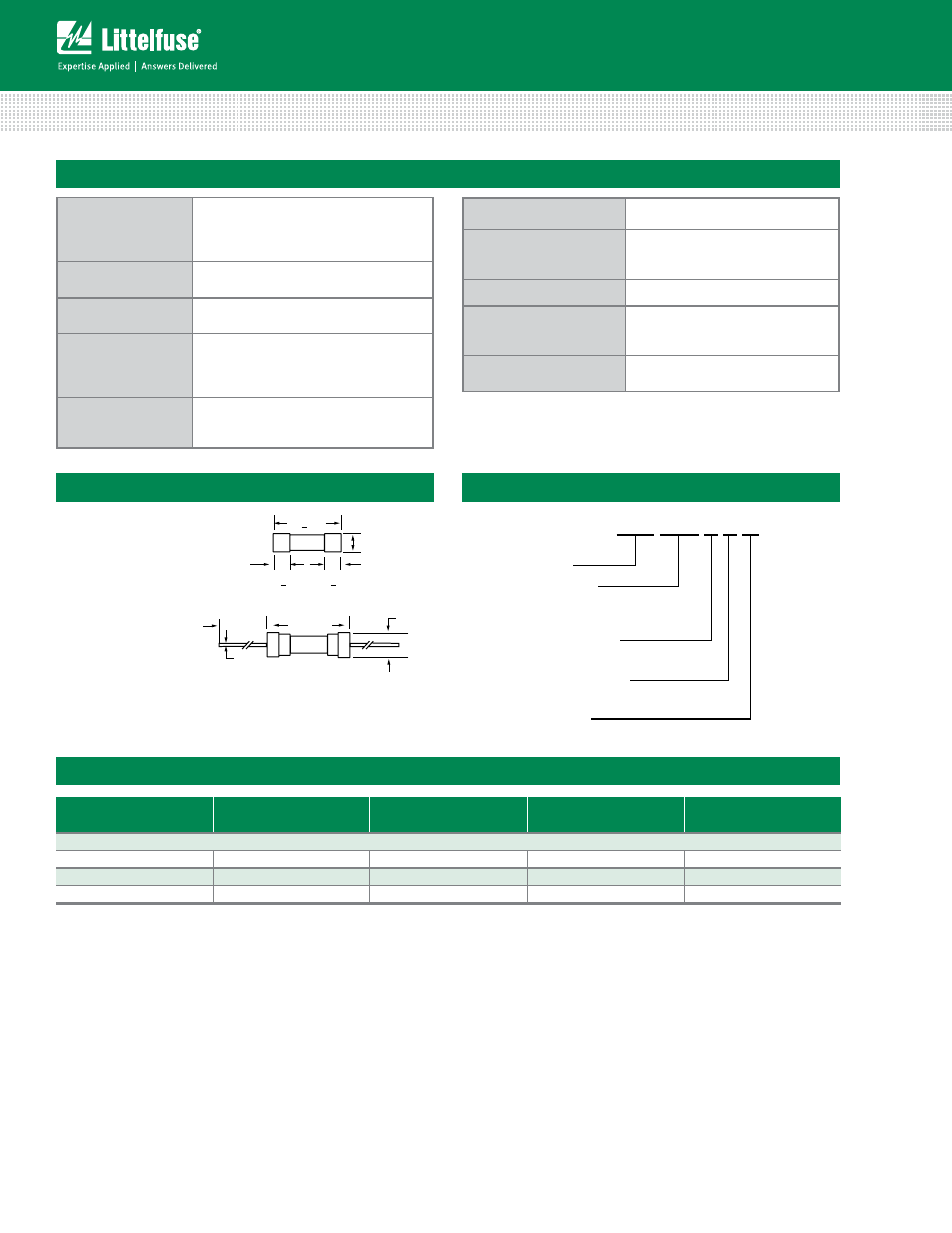

Dimensions
0234 000P
20+0.5
5.1+0.6
5.2+0.1
-0.2
5.1+0.6
0234 000XEP
0.65*
40 22.5 MAX
5.8 MAX
All dimensions in mm
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
Part Numbering System
0234 M X P xxxx
Lead-free
Packaging Code
Quantity Code
Amp Code
Series
X = Filler
M = 1000
Refer to Amp Code column of
Electrical Characteristics Table
Packaging
packaging Option packaging Specification Quantity
Quantity &
packaging Code
Taping Width
234 Series
Bulk N/A 1000 MX N/A
Bulk N/A 1000 MXE N/A
Reel and Tape EIA 296-E 1000 MRET1 T1=53mm (2.087”)
Product Characteristics
