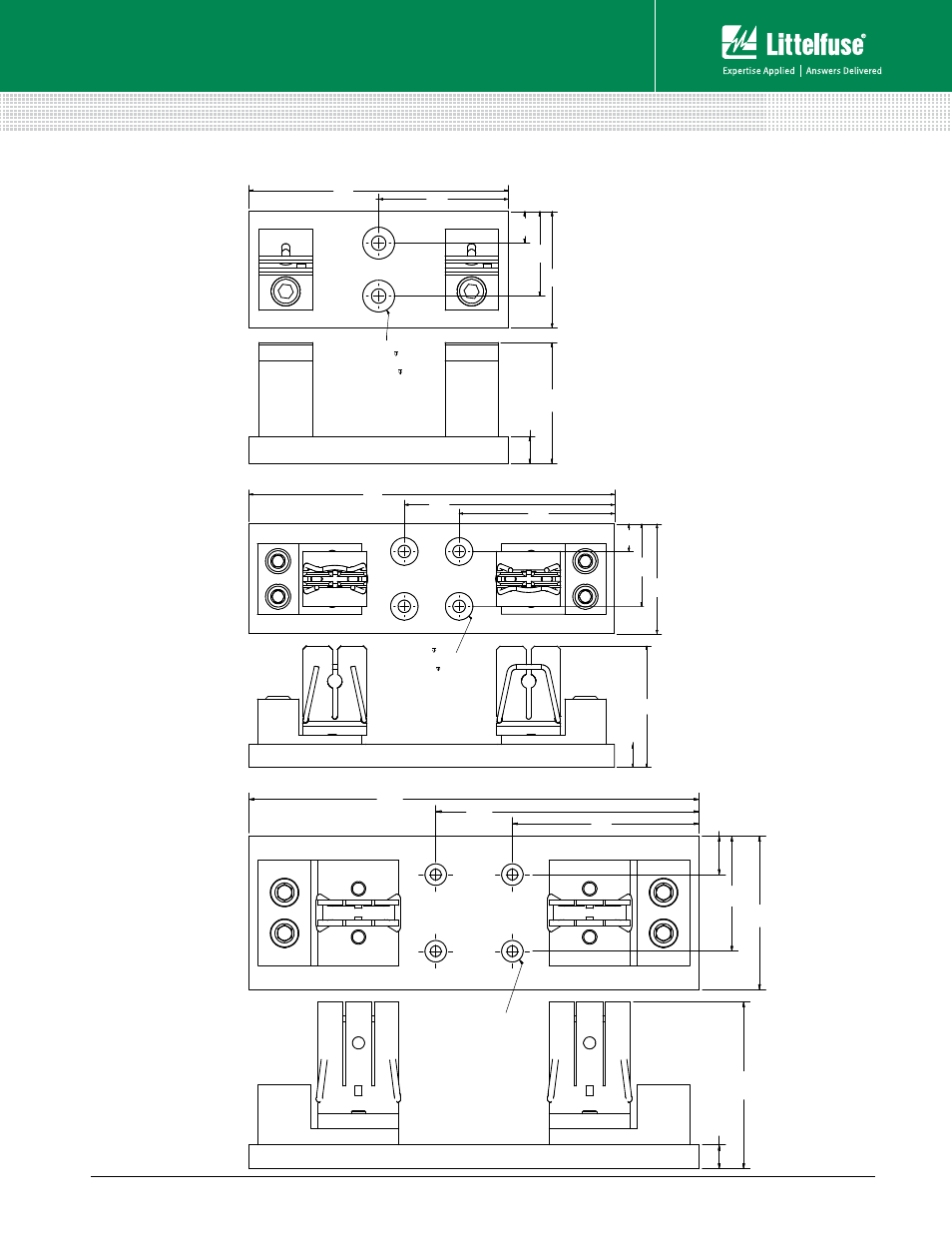

LFJ1000 SerIeS SOLAr FuSe bLOck
Dimensions mm (inches)
Clip-to-Box 1000 V 200 A
Clip-to-Box
1000 V 400 A
Clip-to-Box 1000 V 450 A
15.88
(0.63)
110.58
(4.35)
101.60
(4.00)
76.20
(3.00)
25.40
(1.00)
123.83
(4.88)
174.63
(6.88)
298.45
(11.75)
[
]
ø7.1 THRU
⊔
ø14.2 x 11.2
ø0.28 THRU
⊔
ø0.56 x 0.44
72.4
(2.85)
69.9
(2.75)
50.8
(2.00)
19.1
(0.75)
77.9
(3.07)
155.7
(6.13)
15.9
(0.63)
[
]
ø8.64 THRU
⊔
ш19.1 10.2
ш0.34 THRU
⊔
ш0.75 0.40
