STARTCO
E N G I N E E R I N G LT D .
SE-410
SELECTOR SWITCH
1
2
3
4
5
1 0
9
8
7
6

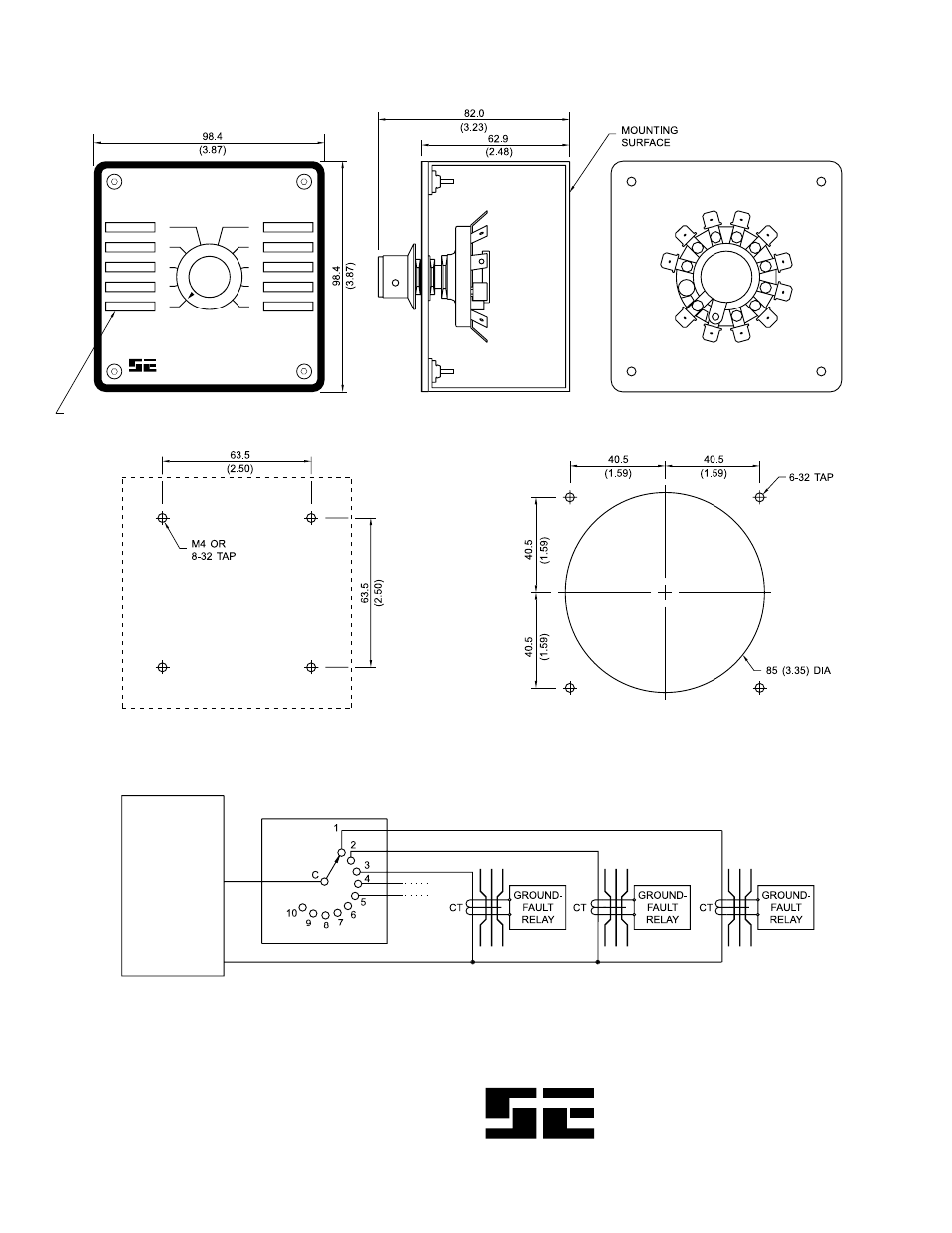

FRONT VIEW SURFACE MOUNT
SIDE VIEW
PANEL MOUNT
REAR VIEW
PANEL-MOUNT
MOUNTING DETAIL
SURFACE-MOUNT
MOUNTING DETAIL
DIMENSIONS
TYPICAL APPLICATION
C
1 2
3
4
5
6
7 8
9
10
SE-400
SE-410
TECHNICAL SPECIFICATIONS
Specifications are subject to change without notice. Startco Engineering Ltd. is
not liable for contingent or consequential damages, or for expenses sustained
as a result of incorrect application, incorrect adjustment, or .
Copyright © 1999.
Printed in Canada.
Publication: SE-410-D
Revised: 9904 Printed: 9904
a malfunction
DIMENSIONS IN
MILLIMETRES (INCHES)
406 Jessop Avenue, Saskatoon, Saskatchewan, Canada S7N 2S5
Phone: (306) 373-5505 Fax: (306) 374-2245 www.startco.ca
STARTCO
E N G I N E E R I N G LT D .
Contact Rating . . . . 15 A, 120 Vac Resistive; 7.5 A, 240 Vac Resistive; 1 A, 120 Vdc Resistive.
Terminals . . . . . . . 0.25 Faston ²
WRITE-ON
AREAS
