Teccor ® brand Thyristors
12 Amp Standard SCRs
Sxx12x Series
0.512 (13.0)
Arbor Hole
Diameter
DC
XXXXXX XXXXXX
DC
XXXXXX
DC
XXXXXX XX
Gate Cathode
Anode
0.63
(16.0)
0.157
(4.0)
0.64
(16.3)
12.99
(330.0)
0.524
(13.3)
0.315
(8.0)
0.059 DIA
(1.5)
*
*
Cover tape
XX XX
Direction of Feed
Dimensions
are in inches
(and millimeters).

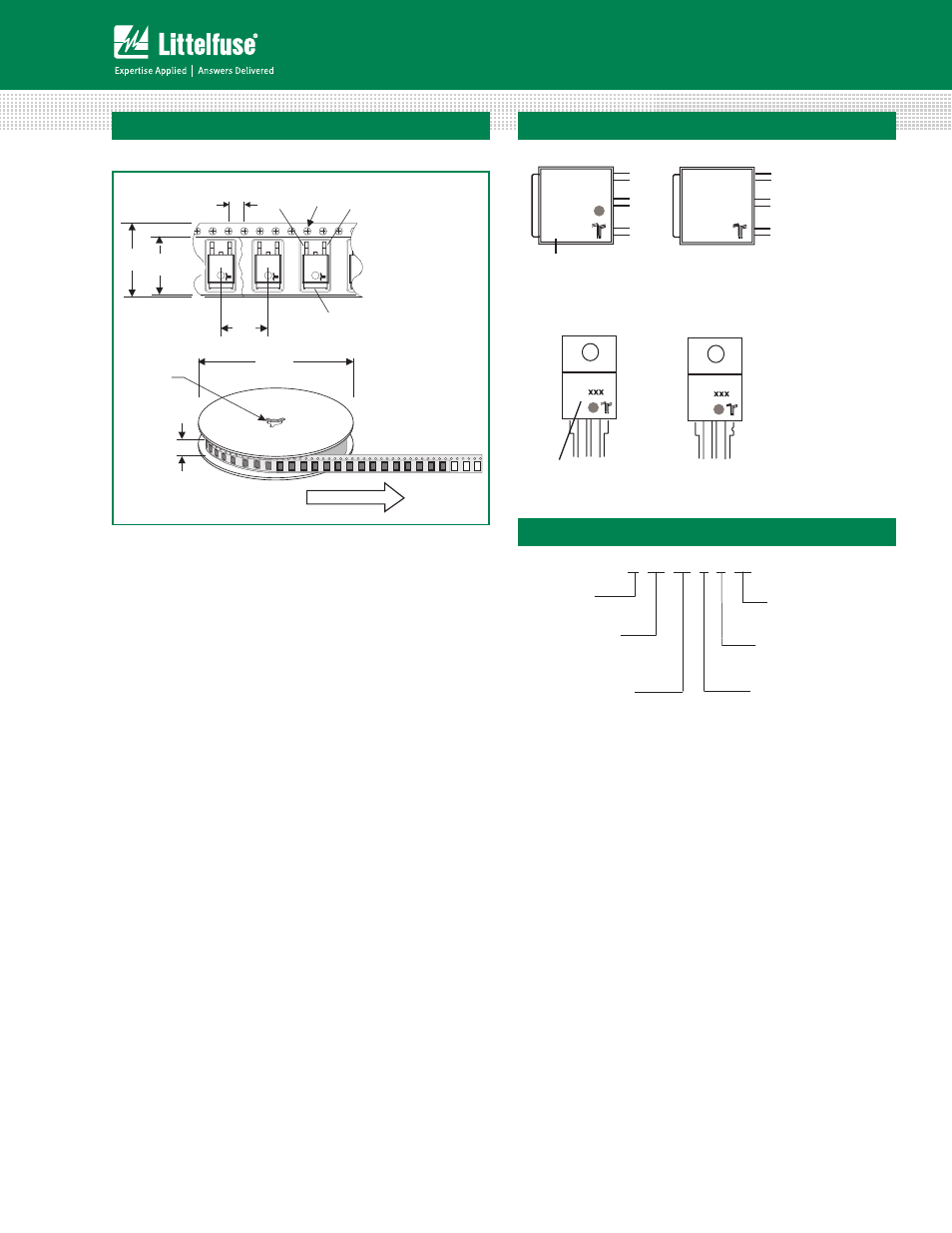

TO-252 Embossed Carrier Reel Pack (RP) Specifications
Meets all EIA-481-2 Standards
Part Numbering System
Part Marking System
S 60 12 R 56
DEVICE TYPE
S: SCR
VOLTAGE RATING
40: 400V
60: 600V
80: 800V
K0: 1000V
CURRENT RATING
12: 12A
SENSITIVITY & TYPE
(blank): 20mA
PACKAGE TYPE
R: TO-220 Non-Isolated
V: TO-251 (V/I-Pak)
D: TO-252 (D-Pak)
LEAD FORM DIMENSIONS
xx: Lead Form Option
L: TO-220 Isolated
®
M Y
S6012L
TO-220 AB - (L Package)
YMLDD
®
Date Code Marking
Y:Year Code
M: Month Code
L: Location Code
DD: Calendar Code
YMLDD
®
TO-251AA - (V Package) TO-252AA - (D Package)
S6012D S6012D
Date Code Marking
Y:Year Code
M: Month Code
XXX: Lot Trace Code
®
M Y
S6012R
TO-220 AB - (R Package)
