ENGLISH

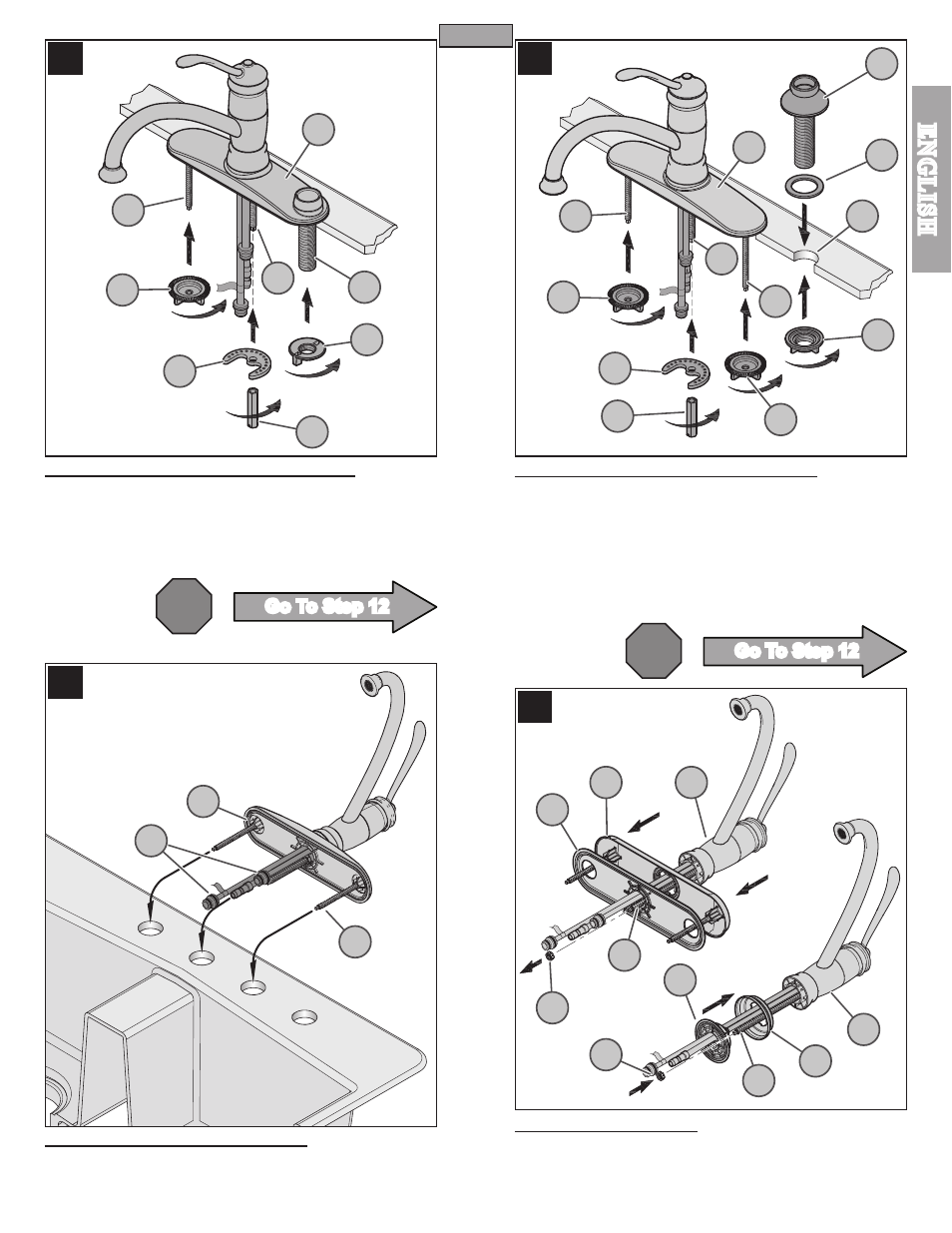

9 SECURING FOUR HOLE FAUCET TO DECK

From above sink, insert Hose Guide Shank (9A) through Flange Gasket (9B) and into

the sink hole (9C).

From underneath sink, secure Hose Guide (9A) by screwing Plastic Locknuts (9D). Hand

tighten. Hand tighten Wing Nuts (9E) to Mounting Posts (9F). Remove any excess putty

from around the outside edge of Deck Plate (9G). Secure the faucet by placing the Metal

Washer (9H) and the Long Nut (7/16 Hex.) (9J) onto the Mounting Post (9K). Make sure that

the bumps on the Metal Washer (9H) are facing up. Tighten using a flat head screwdriver

or an adjustable wrench until the faucet is firmly connected to the sink.

Do not over tighten!

7 SECURING THREE HOLE FAUCET TO DECK

From underneath sink, secure the Hose Guide (7A) by screwing the Plastic Locknut

(7B). Secure Deck Plate (7C) by screwing Wing Nut (7D) to Mounting Post (7E). Hand

tighten. Remove any excess putty from around the outside edge of Deck Plate (7C).

Secure faucet by placing the Metal Washer (7F) and the Long Nut (

Hex.) (7G) onto

Mounting Post (7H). Make sure that the bumps on the Metal Washer (7F) are facing up.

Tighten until the faucet is firmly connected to the sink. Do not over tighten!

8 FOUR HOLE FAUCET INSTALLATION

Following manufacturer’s recommendations on use, apply plumber’s putty into putty

groove in Bottom Plate (8A). Insert the faucet Supply Tubes (8B) through the center

hole of the sink. Insert faucet Shanks (8C) through the end holes of the sink.

STOP

Go To Step 12

STOP

Go To Step 12

10 FAUCET PREPARATION

From underneath faucet, remove Nut (10A) from Mounting Post (10B). Remove Putty

Plate (10C) and Deck Plate (10D) from Faucet Body (10F). Assemble Mounting Ring

(10E) and Putty Ring (10G) to Faucet Body (10F). Secure by placing and threading

Nut (10A) onto Mounting Post (10B).

10A

10B

10C

10D

10F

10E

10B

10G

10A
