Operation Manual page 44 page 45 Operation Manual

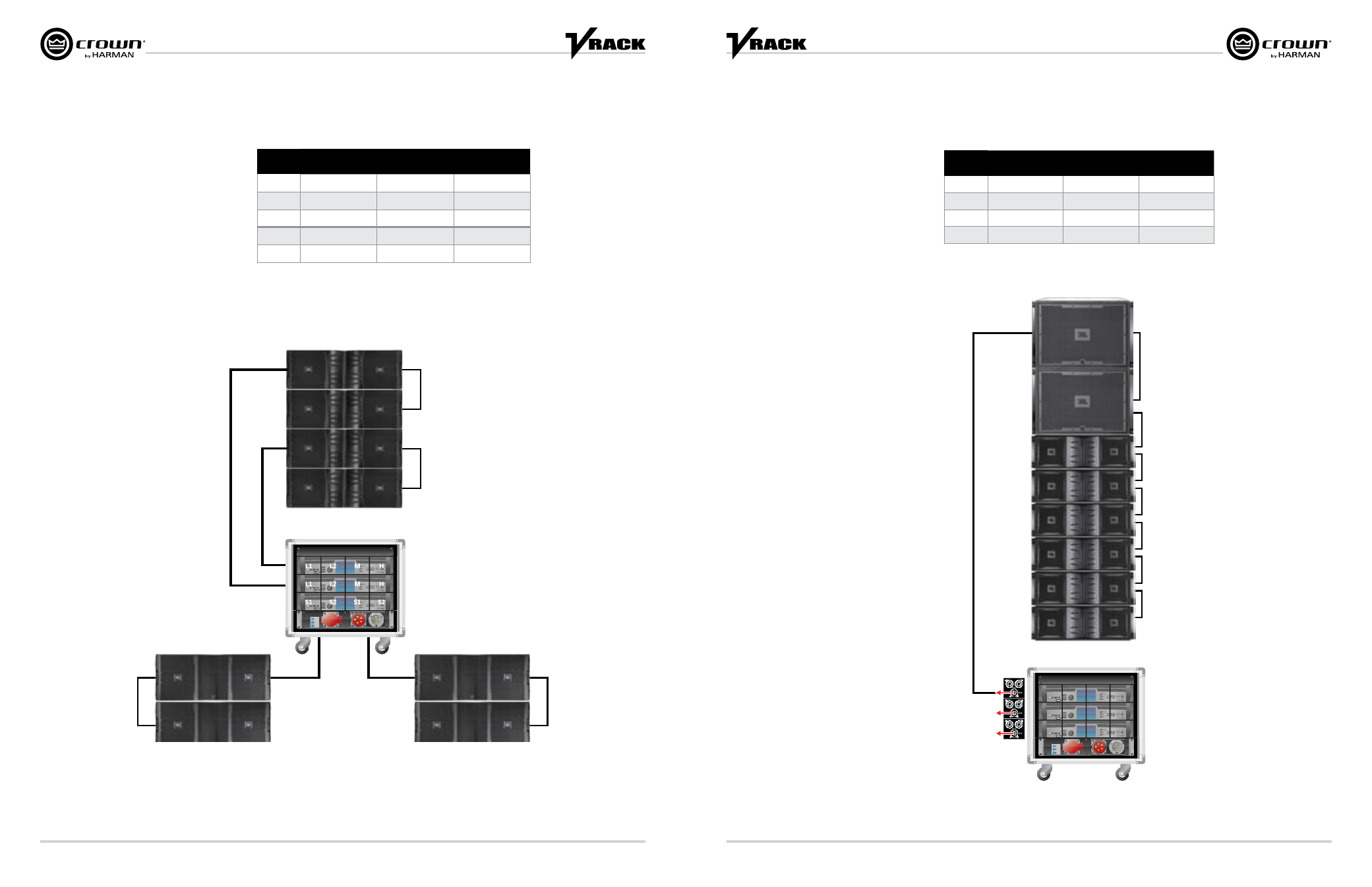

System Diagrams System Diagrams
3W
4 x VTX V25 + 4 x VTX S28
On Each Amplifier
S1 S2 LMH LMH
S1 S2 LMH LMH
S1 S2 LMH LMH
VTX V25
VTX S28 VTX S28
No. Section Load Channel
2 HF 4 ohm CH. 4
2 MF 4 ohm CH. 3
2 x 2 LF 4 ohm CH. 2 & CH. 1
2 S1 4 ohm CH. 1
2 S2 4 ohm CH. 2
No. Section Load Channels
3 LMH (A) 4 ohm CH. 4
3 LMH (B) 4 ohm CH. 3
2 S1 4 ohm CH. 2
2 S2 4 ohm CH. 1
Passive + Sub
6 x VT4886 + 2 x VT4883
A
A
A
B
B
B
4883/4886
On Each Amplifier
