Prokit's Industries MT-7062 User Manual

Page 8

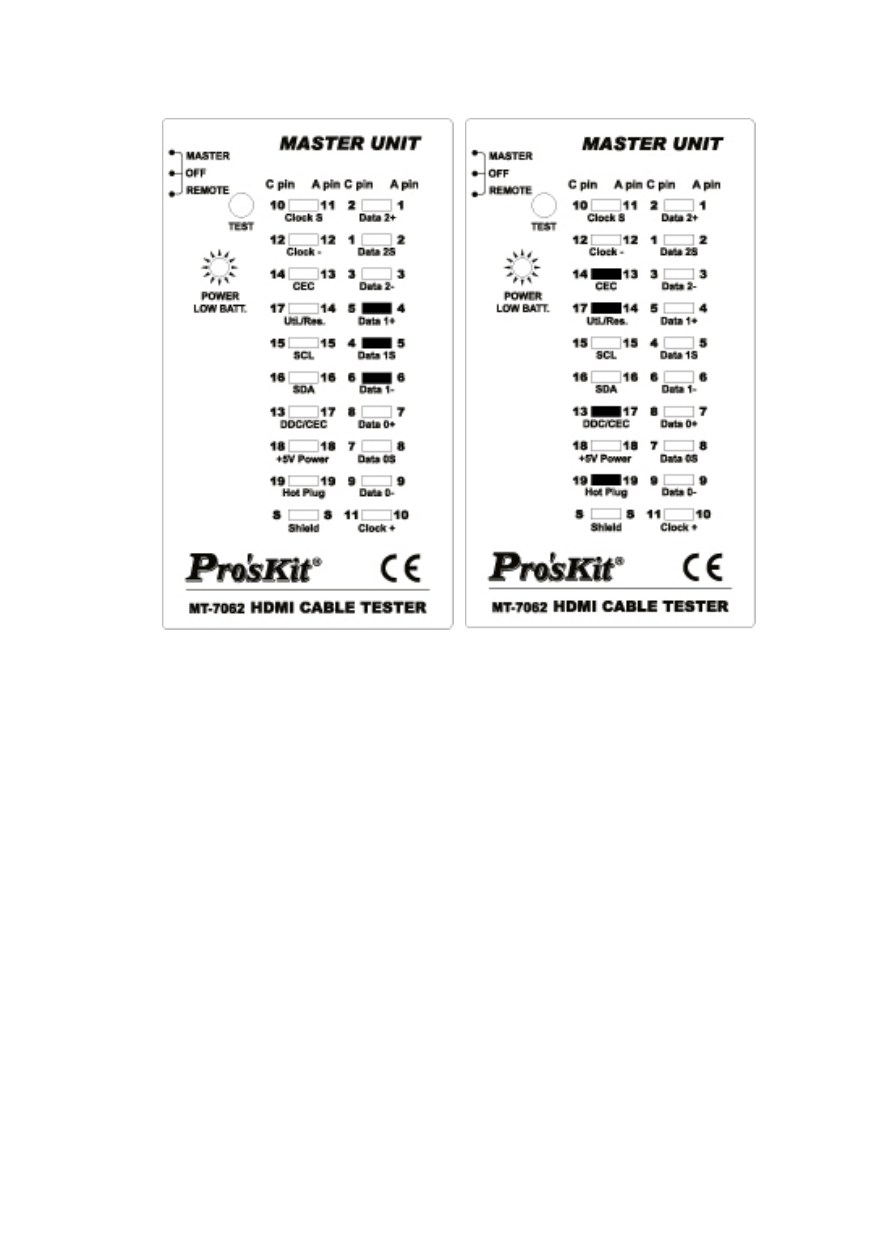

Fig 4. Short Fig 5. Crossover

Master unit with Remote unit automatic testing function
※

Insert one of A type connector of cable to Master unit MAIN (A
Type) socket and insert the other one to Remote unit A Type
connector for test HDMI cable A type to A type.

※

Insert A type connector to Master unit LOOPBACK (A Type)
and insert C type connector to Remote unit Mini-HDMI (C
Type) for test HDMI cable A type to Mini-HDMI (C Type).

※

Insert one of C type connectors of cable to Master unit
Mini-HDMI (C Type) socket and insert the other one to Remote
unite (C Type) socket for test HDMI cable Mini-HDMI (C Type)
to Mini-HDMI (C Type) socket.

Slide upper left switch to “REMOTE” then “POWER” LED
lights up. Master unit #1~19 and “Shield” LEDs will all light
up with a long beep sound then Master unit and Remote
unit both #1~19 and “Shield” LEDs will indicate tested
result. Testing result will keep 12 seconds then all of LED
are off except “POWER”LED for saving power.
