Open：with a short “beep” sound。No connected pins LED
are off. Example: Test HDMI (A Type) to HDMI (A Type)
cable that pin #2, #5, #8 and #11 are not connected , or
test HDMI (A Type) to Mini-HDMI (C Type) cable that pin
#1、#4、#7、#10 are not connected.
(Fig 3.)

Short： With three short “beep” sound. Shorted pins LED
will light up at same time. Example: Test HDMI (A Type)
to HDMI (A Type) cable that pin #4、#5、#6 are shorted or
test HDMI (A Type) to Mini-HDMI (C Type) cable that pin
#4、#5、#6 are shorted.
(Fig 4.)

Crossover：With two short “beep” sound. Crossed pins
LED will light on at same time. Example: Test HDMI (A
Type) to HDMI (A Type) cable that pin #13 crossed with
pin #17 and pin #14 crossed with pin #19, or test HDMI A
Type) to Mini-HDMI (C Type) cable that pin #14 crossed
with pin #13 and pin #17 crossed with pin #19.
(Fig 5.)

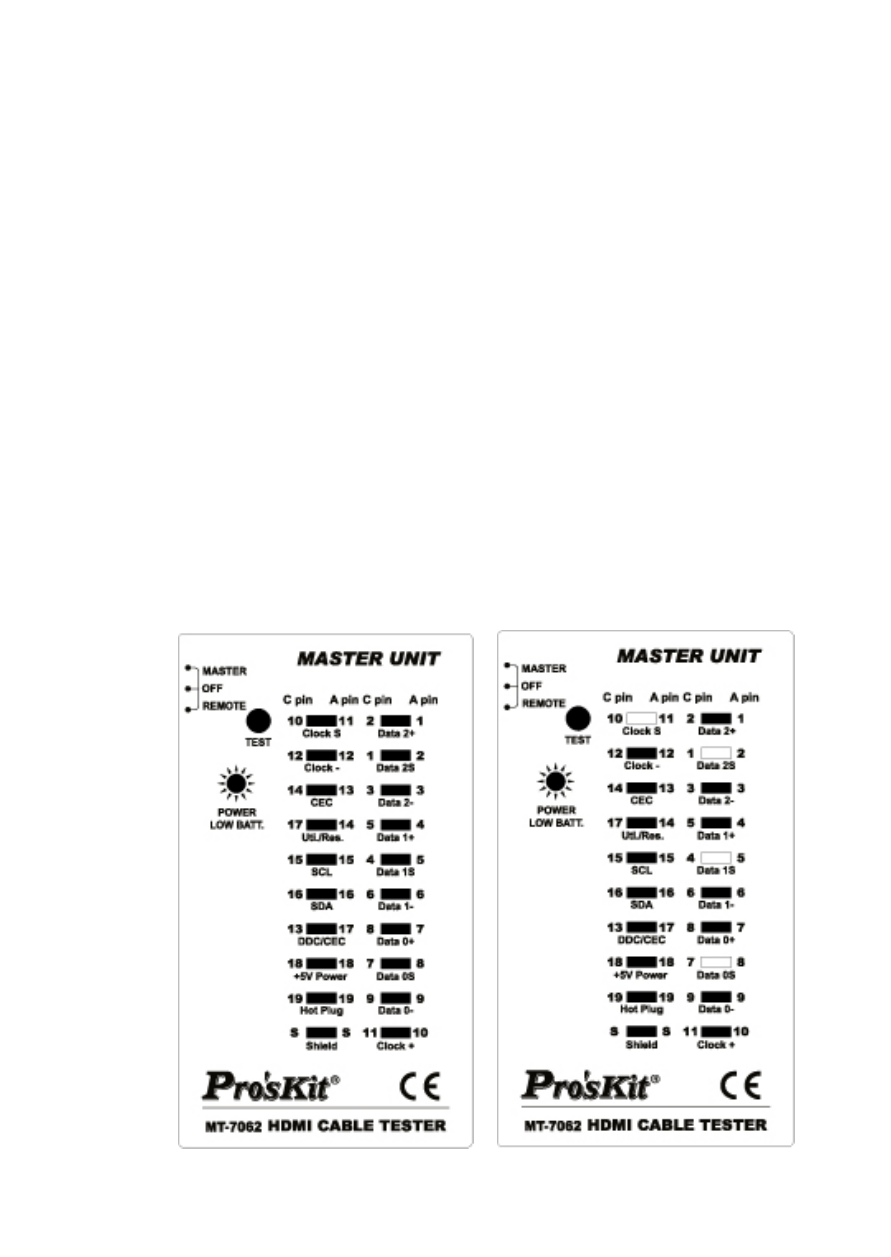

Fig 2. Straight Fig 3. Open
