Prokit's Industries MT-1630 User Manual

Mt-1630 user manual

MT-1630 User Manual

1. SAFETY INFORMATION

1.1 Preparation

1.1.1 Using the instrument the user must comply with standards of safety rules

--Electric shock protection --to avoid the misuse of instruments

1.1.2 When you received the instrument, check whether the damage in transit

1.1.3 Test lead and test probe must be in good condition connect the test lead before you

connect the test probe, when you disconnect them ,disconnect the test probe

first

1.1.4 When servicing the meter use only specified replacement parts

1.1.5 Inspect the test lead for damaged insulation or exposed metal, check the test lead

and test probe for continuity. Replace damaged test lead before you use meter

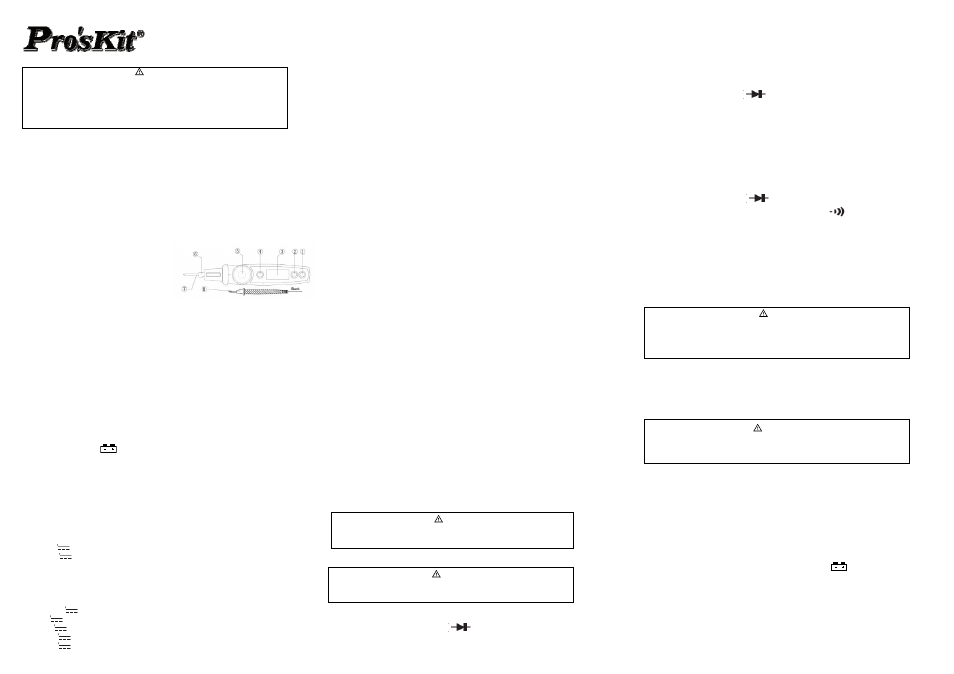

2. FRONT PANEL DESRIPTION

(1)

“LIGHT” button

(2)

“SELECT” button

(3)

Display 3 1/2 digits LCD

with max reading 1999

(4)

“HOLD” button

(5)

Function switch

(6)

Scalable probe block

(7)

Test probe

(8)

Test lead

3. SPECIFICATIONS

Accuracy is specified for a period of one year after calibration and at 23±5℃ with relative

humidity up to 75%

3.1 Review

Auto-Ranging

The max voltage the meter can measure is 600V DC or AC between COM and Earth

Ground

Working height: Max 2000m

Display: 3 1/2 –digit LCD

Max reading of 1999

Polarity: Auto polarity indication “-”expressed as negative polarity

Over range indication: ”OL” on display

Sampling Rate: Approximate 3 times per sec

Functional power unit display

Low battery indication “

” on LCD

Fuse protection: mA: Resettable Fuse

Auto shutdown: 15minutes

Battery: 1.5V2LR44

Operation Temperature ０℃-４０℃＜８０％ＲＨ

Storage temperature: －１０℃-５０℃＜７０％ＲＨ Remove the battery

Dimensions: 205mm×35mm×30mm

Weight: about 96g (without battery)

AC/DC Current

Range

■20mA

■200mA

■20mA ～

■200mA

～

Resolution

0.01mA

Accuracy

±(1.5%+10d)

±(3.0%+10d)

AC/DC Voltage

Range

■200m V

■2 V

■20 V

Resolution

0.1mV

0.001V

0.01V

Accuracy

±(0.8%+5d)

■200 V

■600 V

0.1V

±(0.8%+5d)

■2V

～

■20V ～

■200V～

■600

～

0.001V

0.01V

0.1V

±(1.0%+3d)

±(1.2%+3d)

Note: - If the resistance is 2 1M, it takes several seconds to stabilize. It is normal.

- If the input terminal is in open circuit, overload mark will be displayed on LCD.

- Before measuring resistance, make sure that the power supply has been

switched off and all the capacitors have been discharged.．

4.6 Measuring Diode

Resistance

Warning

Using this instrument should special attention to improper use may cause
electric shock or damage, in use should follow the usual safety rules and in full
compliance with the security measures provided for manual. In order to take full
advantage of instrument function and ensure the safe operation, please read these
instructions and follow them strictly

4.6.1 Put away the test probe protective cover.

Range

■200Ω

■2KΩ

■20KΩ

■200 KΩ

■2MΩ

■20M Ω

Resolution

0.1Ω

1Ω

0.01KΩ

0.1KΩ

1KΩ

0.01MΩ

Accuracy

±(1.0%+5d)

±(1.0%+3d)

±(1.2%+5d)

4.6.2 Take test lead from the back box.
4.6.3 Set the function switch to

position.

4.6.4 Press "SELECT button to make the display show ~

4.6.5 Connect the test probe and test lead across the diode (test probe to the

positive pole of the diode, test lead to negative pole).

4.6.6 Read the forward voltage on LCD.

Note:

- Meter shows an approximation of diode forward voltage drop

Continuity Test

- If the instrument and test lead reverse connection, the LCD will show "OL".

Diode test

- If the instrument and test lead open circuit, the LCD will show "OL".

3.2 Use

4.7 Audible Continuity

3.2.1 Use the proper function and range for your measurements

4.7.1 Put away the test probe protective cover.

3.2.2 When serving the meter, use the same model number or identical electrical

specification replacement parts

4.7.2 Take test lead from the back box.
4.7.3 Set the function switch to '

' Ω’ position.

3.2.3 When using the probe s keep your fingers behind the finger guards on the unit

3.2.4 Do not input higher than 600V between the two meter’s input terminal to avoid

electric shock and damage to the meter

4.7.4 Press "SELECT button to make the display show “

”

4.7.5 Connect the test lead and test probe across the resistance to be

3.2.5 When the meter working at an effective voltage over 60V DC or 30V AC

(RMS),special care should be taken for there is danger of electric shock

measured.

4.7.6 The buzzer sounds if the resistance of a circuit under test is less than

3.2.6 Disconnect circuit power and discharge all high-voltage capacitors before testing

resistance, continuity and diode

50Ω; it may or may not sounds if the resistance of a circuit under test is

between 50Ω to 120Ω; it does not sound if the resistance of a circuit

3.2.7 Do not testing resistance, continuity and diode with electricity

under test is higher than 120.

3.2.8 Before pushing the function switch to charge functions disconnect test lead and

test probe from the circuit under test

Note:

- If the test lead reverse connection or the resistance is higher than 200Ω, the LCD will

show "OL".

3.2.9 Do not operate the meter around explosive gas .vapor or dust

3.2.10 Do not use the meter if it operates abnormally ,Protection may be impaired, when

in doubt have the meter serviced

4.8 Current measurement

3.2.11 Do not use the meter with the battery door or portions of the cover removed or

loosened

3.2.12 Do not store the meter in direct sunlight, high temperature and high humidity

4. OPERATION INSTRUCTION
4.1 Reading hold

After pressing “HOLD” button，the present reading will be held on the display ,to exit

from the mode ,just press button again
4.2 "SELECT" Button

This button is used for the function's change between: VDC/AC,

resistance/diode/continuity.．
4.3 Auto Power-off

If the instrument is not used or stays in a range position for more than 15

minutes, the power supply will be switched off and the instrument will be in

sleep status. To arouse the instrument from sleep, turn the function switch or press the

"HOLD" button.
4.4 Measuring Voltage

4.4.1 Put away the test probe protective cover, and takes test lead from the

back box.

4.4.2 Set the function switch in V position

4.4.3 Press the "SELECT" button to set the unit in DC or AC range.

4.4.4 Connect the test probe and test lead across the source or load to be

measured.

4.4.5 The display will show the reading along with the polarity of the test probe.

4.5 Measuring Resistance

4.5.1 Put away the test probe protective cover.

4.5.2 Take test lead from the back box.
4.5.3 Set the function switch in the

position.

4.5.4 Connect the test lead and test probe across the resistance to be measured.

4.5.5 Read the value on LCD.

Warning

Risk of electric shock.

When current measurement has been completed, disconnect the connection

between the conductor under test and the jaw, and remove the conductor away

from the transformer jaw of the Meter.

4.8.1 Put away the test probe protective cover. And take test lead from the back box.

4.8.2 Set the function switch in mA position

4.8.3 Press the "SELECT button to set the unit in DC or AC range.

4.8.4 Connect the test probe and test lead across the source or load to be measured.

4.8.5 The display will show the reading along with the polarity of the test probe.
5. MAINTENANCE

Warning

Do not attempt to repair or service your Meter unless you are qualified
to do so and have the relevant calibration, performance test, and service
information.

5.1.1 Periodically wipe the case with a damp cloth and mild detergent. Do not use

abrasive or solvents.

5.1.2 To clean the terminals with cotton bar with detergent, as dirt or moisture

in the terminals can affect readings.

5.1.3 To avoid electrical shock or damage to the Meter, do not get water inside

the case.

Warning

Risk of electric shock.

The max. permitted input voltage: 600V

5.1.4 Turn the meter power off when it is not in use.

5.1.5 Take out the battery when it is not using for a long time.

5.16 Do not use or store the Meter in a place of humidity, high temperature,

explosive, inflammable and strong magnetic field.

5.2 Battery Replacement
5.2.1 Replace the battery as soon as the battery indicator“

”appears.

Warning

Risk of electric shock.

When measuring resistance, be sure disconnect circuit.

5.2.2 Remove the screw from the battery compartment, and separate the

battery compartment from the case bottom.

5.2.3 Take out the old battery and replace with a new battery.

5.2.4 Rejoin the case bottom and the battery compartment, and reinstall the

screw.
