 Short：Master unit LED brighter than others and
Remote unit LED off when scan to shorted pins,
Master unit and Remote unit both LED are all lighted
up in sequence,
Example : Test HDMI (A Type) to
HDMI (A Type) cable that pin #4、#5、#6 are shorted,
or teat HDMI (A Type) to Mini-HDMI (C Type) cable
that pin #4、#5、#6 are shorted, or test Mini-HDMI (C
Type) to Mini-HDMI (C Type) cable that pin #4、#5、
#6 are shorted.
(Fig 8.)
 Crossover：Master unit LEDs light up in sequence
and Remote unit LEDs light up sequence by crossed
pins,
Example : test HDMI (A Type) to HDMI (A
Type) cable that pin #13 with pin#17 are crossed and
pin #14 with pin #19 are crossed, or test HDMI (A
Type) to Mini-HDMI (C Type) cable pin #13 with pin
#13 and pin #14 with pin #19 are crossed, or test
Mini-HDMI (C Type) to Mini-HDMI (C Type) cable pin
#14 with pin #13 are crossed and pin #17 crossed
with #19 are crossed.
(Fig 9.)

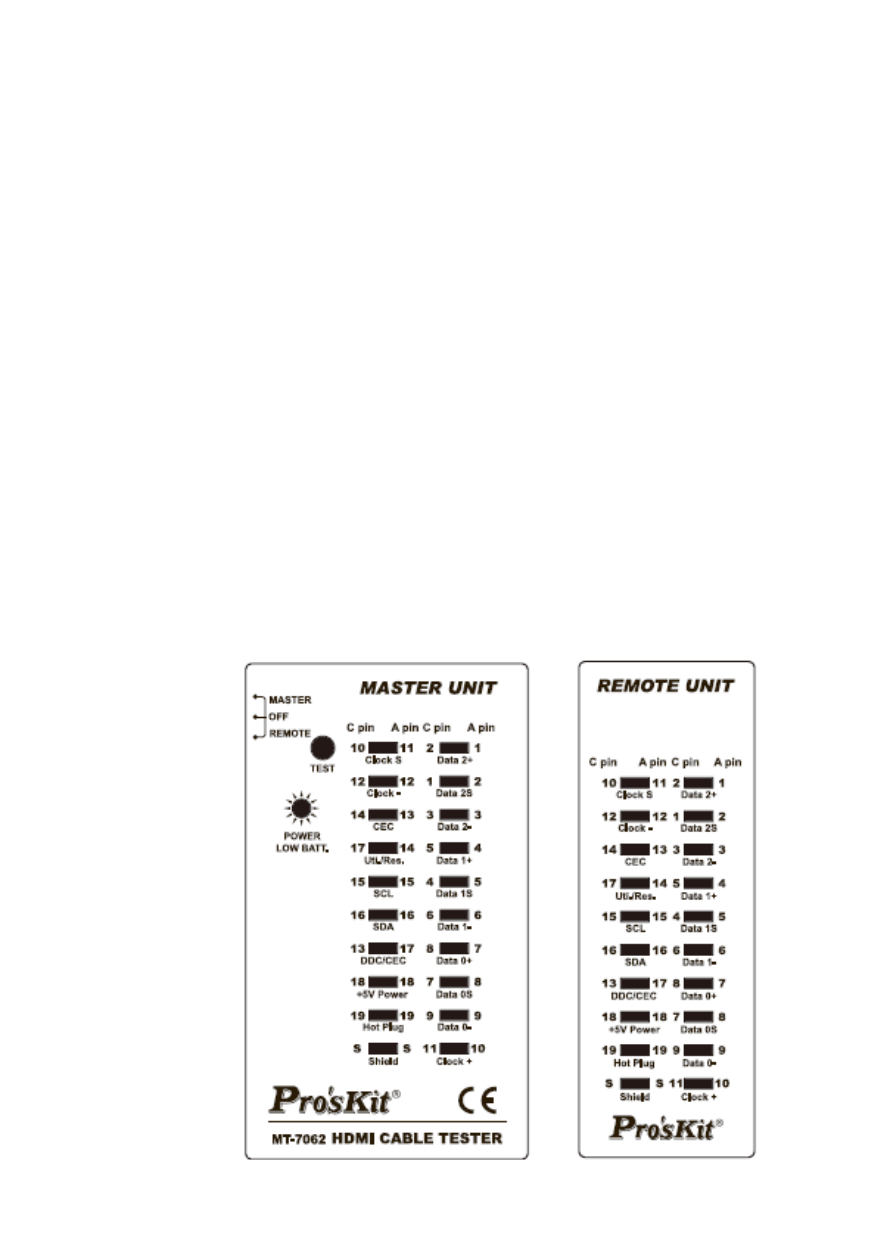

Fig 6. Straight
9
