10 of 56 ISSUED: 03-09-12 SHEET #: 095-9386-2 03-26-12

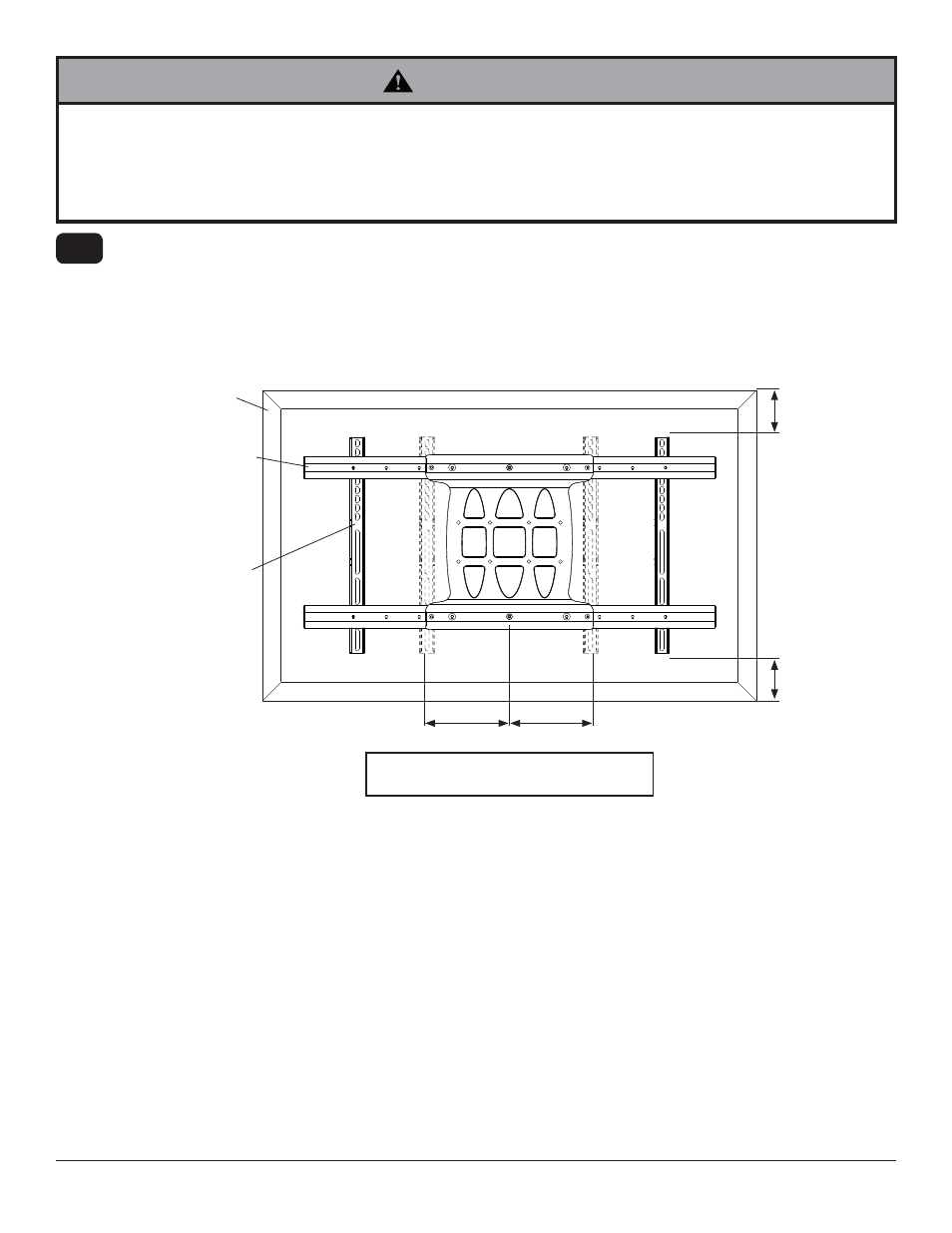

CENTER SCREEN BRACKETS VERTICALLY ON BACK OF SCREEN
SCREEN
SCREEN BRACKETS
B
Y Y
X
X
"Y" dimensions should be equal.
NOTE: "X" dimensions should be equal.
• Tighten screws so screen brackets are fi rmly attached to screen. Do not tighten with excessive force. Overtightening
can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to
become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
Select the screws from the baffl ed fastener pack that best fi t your screen and secure to screen following step 3-4
or 3-5 on page 11.
NOTE: Top and bottom mounting holes must be used for attaching screen brackets. Middle holes should also be
used where the fasteners and screens allow.
Verify that all holes are properly aligned, then tighten screws using a phillips screwdriver.
3-3
