Peerless-AV HT642-003 - Installation - Manual (Page 7)

SUPERSEDING COPY 200-9194revA 03-28-01/ m.b.
7 of 8 ISSUED: 07-07-11 SHEET #: 125-9221-1

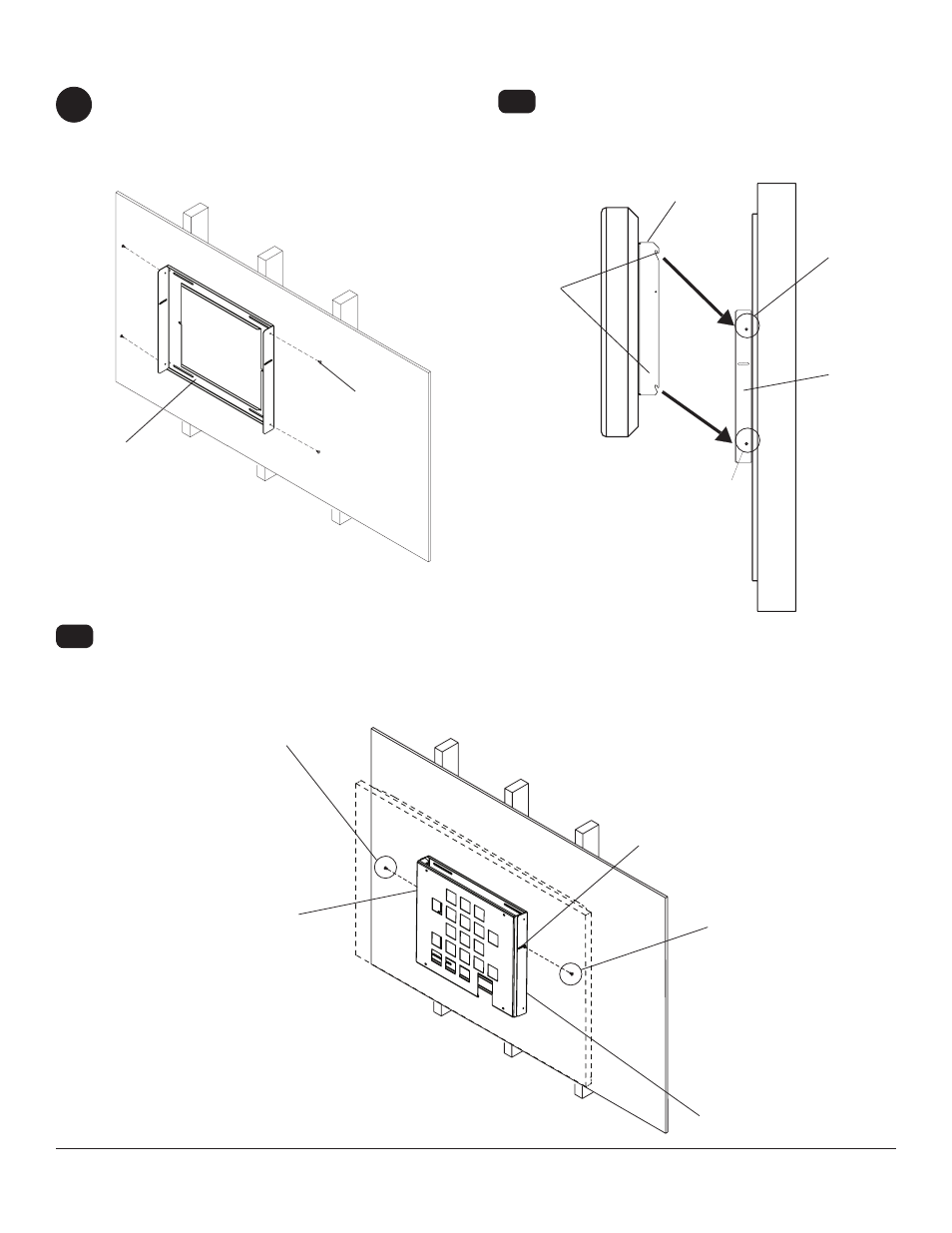

Attaching Mounting Bracket Using Hook On Option
Attach four M5 x 12 mm serrated washer head
socket pin screws ( D) to the holes on the sides of
mounting bracket ( A) using the 4mm security allen
wrench ( F) provided.
7-1 Position slots of adapter brackets ( B) onto the
four M5 x 12 mm serrated washer head socket pin
screws ( D) attached to mounting bracket (A).
D
B
SLOT
D
To secure adapter brackets ( B) to mounting bracket (A), attach two M5 x 12 mm serrated washer head socket pin
screws ( D) into the threaded inserts of adapter brackets (B), and through the slots on the sides of mounting bracket
( A). Tighten with the 4 mm security allen wrench (F).
For tilt option skip to Step 8
A
D
A
7-2
D
B
D
A
7
SLOT
