5. Installation

NOTE: Before installation, please inspect the unit. Be sure that nothing
inside the package is damaged.

Mounting the Unit

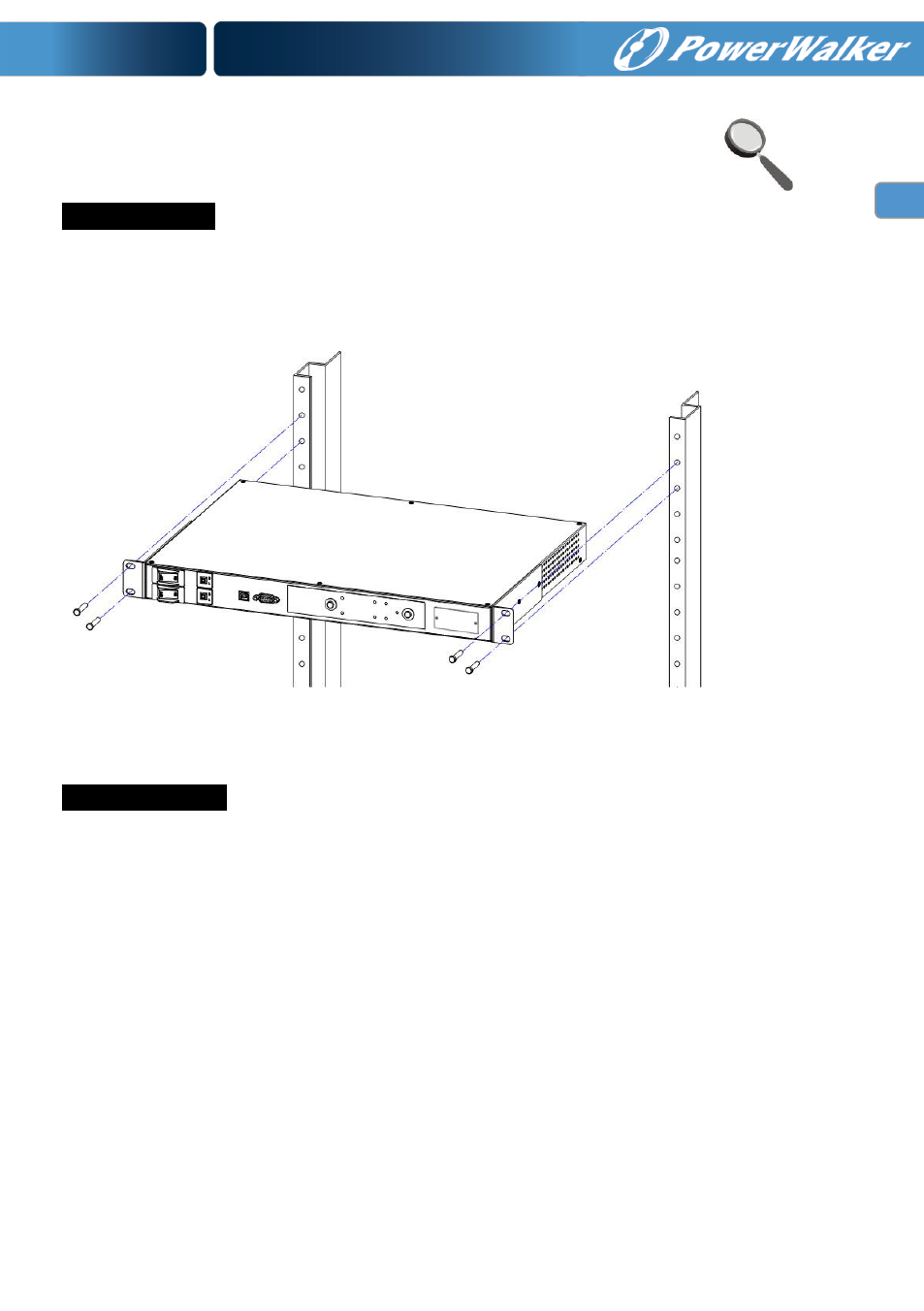

The unit can be mounted in a standard 19" rack. Fasten the mounting brackets to the unit using the
screws provided. With brackets attached securely, users can mount the unit in a standard 19" rack
as shown below.

NOTE: If the temperature around the unit will rise above 40 °C, ventilation is required

Connecting the Unit

For connecting the ATS, plug “input source A connector” and “input source B connector” to the
two independent power sources or UPSs depending using the SCHUCKO-IEC or IEC-IEC 16A cables
supplied.
Plug the user load to the output 10A (“Output 1 and 2”) or 16A (“Output 3”) sockets depending on
user’s requirements.
