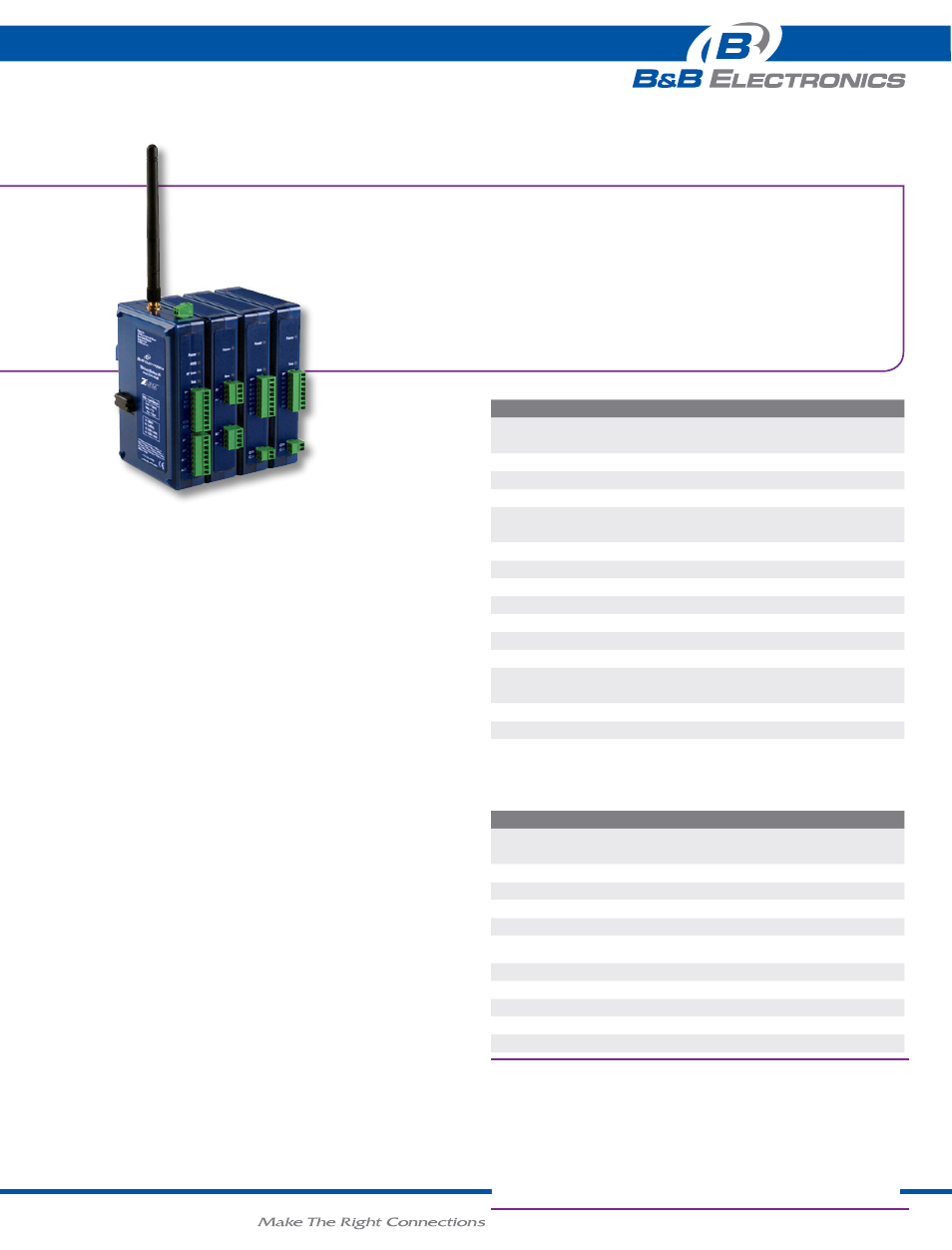

Zlinx ™ wireless Modbus i/o - flexible enough to fit your applications.
These plug-n-play units combine traditional Modbus RTU remote analog
and discrete I/O with built-in wireless connectivity. Wireless RTU serves as
Modbus slave RTU in radio-based SCADA systems, or as a peer-to-peer
communication platform.
two ranges available - Short, Long range.
active repeaters - With built-in repeater functionality on 900 MHz -LR
models, you can ensure vital signals get through.
Modular - Just snap on your I/O and you are ready to communicate.
wide temperature - Meets most indoor or outdoor applications.
rugged circuitry - prevents signal degradation.
128 / 256 Bit aeS encryption - Secures data.
Selectable rF transmit Power - Allows you to optimize the transmitter
power for your application.
Selectable over-the-air data rate - Allows you to decrease the OTA
Data Rate (on -LR and -LR-AU versions), effectively increasing the radio
transmitter’s range.
exception reporting - In Modbus mode, allows the reporting of possible
problems with connected devices.
Fail Safe - Allows you to set I/O to a safe state in the event of a
communications failure.
Calibration - Calculates correction factors to make I/O values better
match your sensor.
Communications Failure alarm - Allows the first DO to be configured as
a COM failure alarm indicator.
invert output - You can invert the logic of all DO’s in peer-to-peer mode.
Monitor - Use the Zlinx™ Manager Software to monitor your I/O.
• Modular, Customizable Wire
Replacement
• Flexible configuration for multiple
types of analog/digital I/Os
• Software Selectable RF Transmit Power
• Software Selectable Over-the-air Data
Rate
• Modbus ASCII /RTU Compatible
• 900 MHz and 2.4 GHz Versions
• Wide Operating Temperature
• Active Repeater Functionality
• 10 to 40 VDC & 24 VAC Input Power
• AES Encryption
ordErIng InFormatIon
Model nuMBer deSCriPtion
ZZ8d-xx-lr Base Modules *
ZZ8D-NA-LR
868MHz, 2 AI, 2 A0, 2 DI, 2 D0 Sourcing, Long Range
ZZ8D-NB-LR 868MHz, 4 DI, 4 D0 Sourcing, Long Range
ZZ8D-NC-LR 868MHz, 2 AI, 2 A0, 2 DI, 2 D0 Sinking, Long Range
ZZ8D-ND-LR 868MHz, 4 DI, 4 D0 Sinking, Long Range
ZZ9d-xx-lr Base Modules *
ZZ9D-NA-LR
900MHz, 2 AI, 2 AO, 2 DI, 2 DO Sourcing, Long Range
ZZ9D-NA-LR-AU 900MHz, 2 AI, 2 AO, 2 DI, 2 DO Sourcing, Long Range
ZZ9D-NB-LR 900MHz, 4 DI, 4 DO Sourcing, Long Range
ZZ9D-NB-LR-AU 900MHz, 4 DI, 4 DO Sourcing, Long Range
ZZ9D-NC-LR 900MHz, 2 AI, 2 AO, 2 DI, 2 DO Sinking, Long Range
ZZ9D-NC-LR-AU 900MHz, 2 AI, 2 AO, 2 DI, 2 DO Sinking, Long Range
ZZ9D-ND-LR 900MHz, 4 DI, 4 DO Sinking, Long Range
ZZ9D-ND-LR-AU 900MHz, 4 DI, 4 DO Sinking, Long Range
ZZ24d-xx-Sr Base Modules*
ZZ24D-NA-SR
2.4GHz, 2 AI, 2 AO, 2 DI, 2 DO Sourcing, Short Range
ZZ24D-NB-SR 2.4GHz, 4 DI, 4 DO Sourcing, Short Range
ZZ24D-NC-SR 2.4GHz, 2 AI, 2 AO, 2 DI, 2 DO Sinking, Short Range
ZZ24D-ND-SR 2.4GHz, 4 DI, 4 DO Sinking, Short Range
aCCEssorIEs
ZZ-PROG1-USB Zlinx USB Programming Module, Cable, Software CD
ZZ24D-ANT1 2.4 GHz Spare Antenna
ZZ9D-ANT1 900 MHz Spare Antenna
ZZ-DIN 1 Replacement DIN Clip and Spring
ZZ-TB1 Replacement Terminal Block Kit
produCt FEaturEs
peer-to-peer and modbus I/o
Zlinx Standard Wireless I/O
Model nuMBer deSCriPtion
expansion Modules
ZZ-8DI-DC
8 Digital Inputs, 10-48VDC
ZZ-8DO-T 8 Digital Outputs Sourcing
ZZ-8DO-T1 8 Digital Outputs Sinking
ZZ-8DO-R 8 Relay Outputs
ZZ-4AI 4 Analog Inputs
ZZ-4AO
4 Passive Source Analog Inputs,
Requires Isolated External Power Supply
ZZ-4AO-2 4 Analog Output Sourcing
ZZ-4RTD1 4 RTD Input
ZZ-4DI4DO-DCT 4 Digital Inputs, 10-48VDC, 4 Digital Outputs Sourcing
ZZ-4DI4DO-DCT1 4 Digital Inputs, 10-48VDC, 4 Digital Outputs Sinking
ZZ-2AI2AO 2 Analog Inputs, 2 Analog Outputs
World-wide.
Check with your local distributor for availability and options.
* Check wireless regulations/standards in your geographic area.
Zlinx Standard Wireless I/O_3713ds
