Unmanaged Modules
Configure the iMcV-Giga-MediaLinX for desired features before installing it in an
unmanaged chassis.

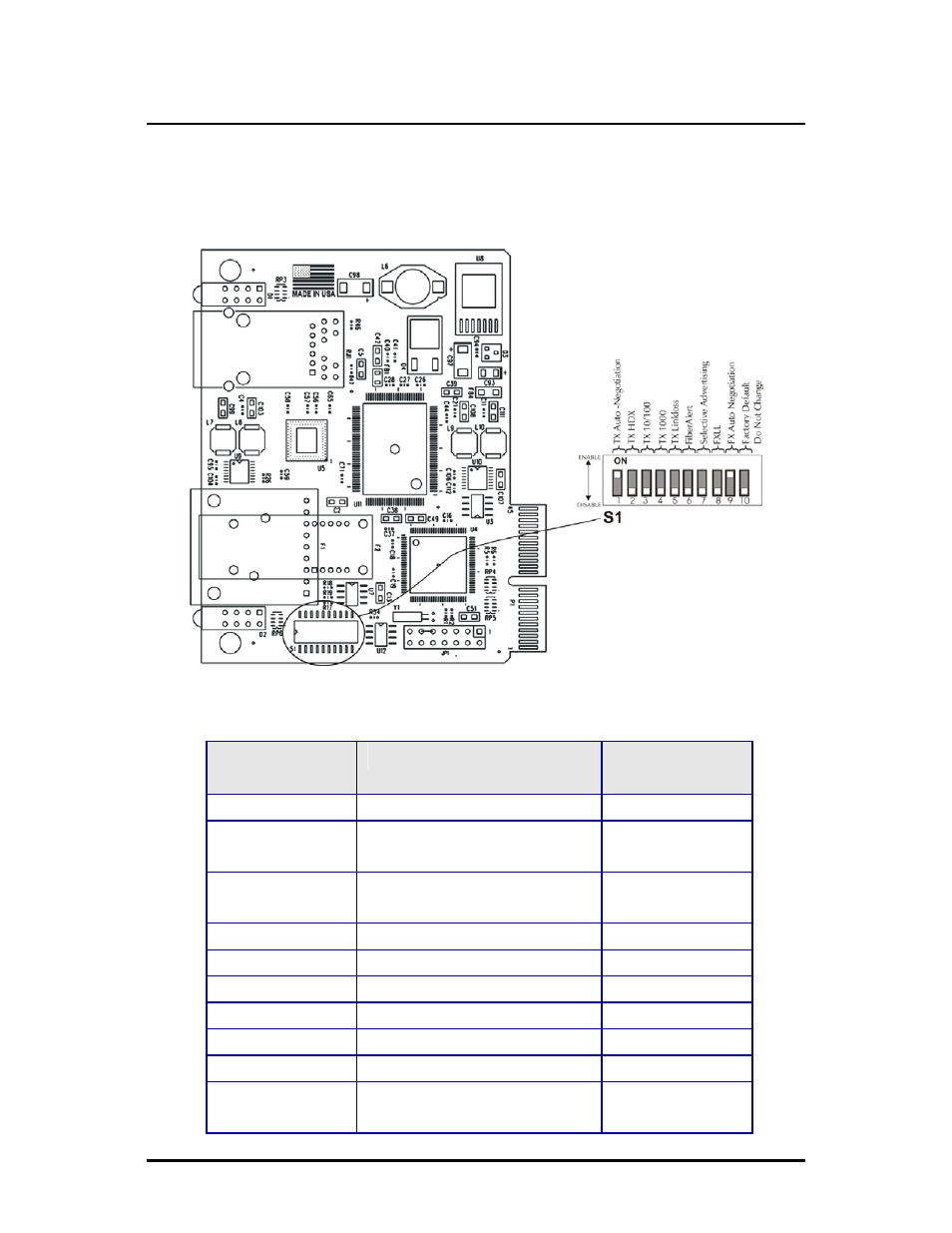

DIP Switch on S1 Feature Default Setting
1 TX Auto Negotiation ON
2 TX Port-HDX (ON) or FDX
(OFF) OFF
3 TX Port-100 (ON) or 10
(OFF) OFF
4 TX Port-1000 OFF
5 TX LinkLoss (TXLL) OFF
6 FiberAlert OFF
7 Selective Advertising OFF
8 FX LinkLoss (FXLL) OFF
9 FX Auto Negotiation ON
10 Factory Configured—
Do Not Change OFF
