GW-7552 PROFIBUS/MODBUS GATEWAY Quick Start User Guide (Version 1.30) PAGE：6
When the user finishes the configuration and saves setting in the
PROFIBUS master station successfully, the 'RUN' LED indicator of GW-
7552 is turned on. That shows the GW-7552 working in the data exchange
mode.

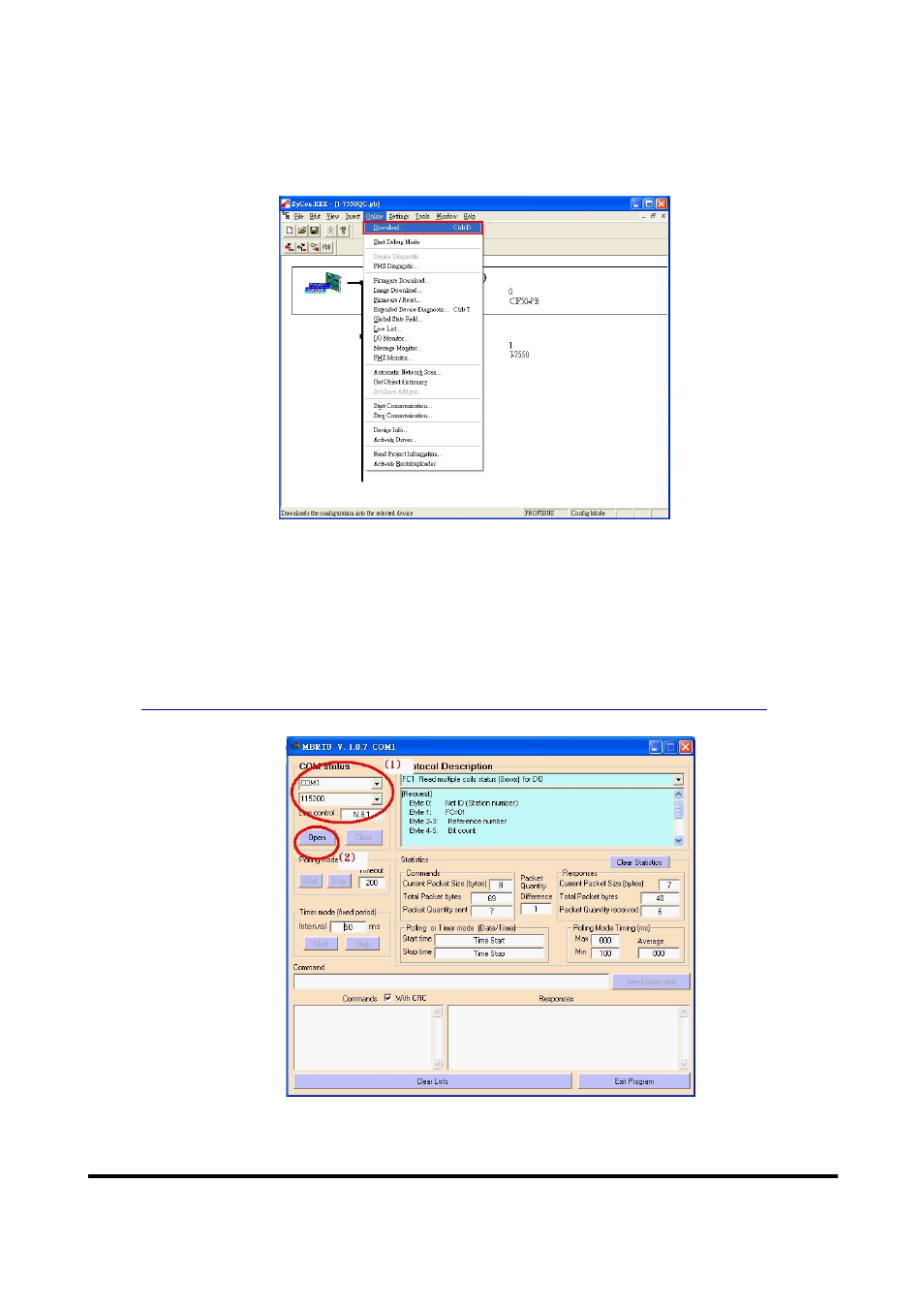

Click Download> to download the setting into PROFIBUS master
station
5. GW-7552 module communication test
This demo uses utility “MBRTU” on the PC to communicate with the GW-
7552. The User can download it on the web site:
http://ftp.icpdas.com.tw/pub/cd/8000cd/napdos/modbus/modbus_utility/
. The
settings of the “MBRTU” are shown in the below.
MBRTU setting
