GW-7552 PROFIBUS/MODBUS GATEWAY Quick Start User Guide (Version 1.30) PAGE：5
¾ Set the modules of the GW-7552
The modules of the GW-7552 are described below.
●
System setting module：3 byte out
●
Output module：Output Relay/CoilÆ 1~32 Bytes
Output RegisterÆ 1~64 Words
●
Input module：Input Relay/CoilÆ 1~32 Bytes
Input RegisterÆ 1~64 Words
In this example, we configure a “system setting module”, an “Output
Relay/Coil--2 Byte module” and an “Input Relay/Coil--2 Byte module”, as
follows.

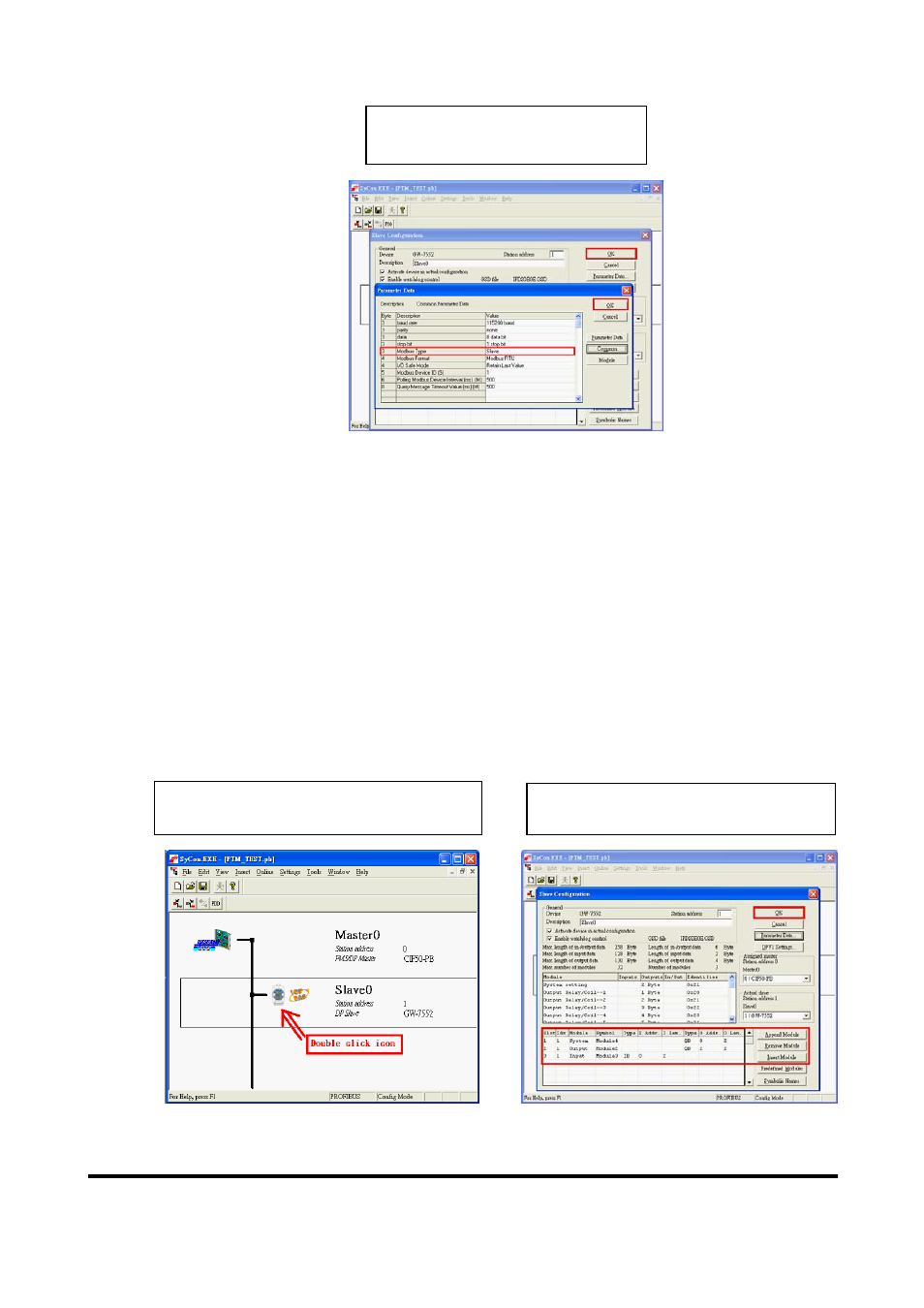

Configure module and click OK
button Double click GW-7552’s icon to
enter Slave configuration dialog
Change Modbus type to
slave and click button
