GW-7552 PROFIBUS/MODBUS GATEWAY Quick Start User Guide (Version 1.30) PAGE：3
off
PROFIBUS system configuration is correct.
It is normal operation.
on
Data exchange mode.
It is normal operation.
RUN
off GW-7552 module is not in data exchange mode.
3. Establish connection with GW-7552
Before establish the connection between DP-Master and GW-7552, users
should obey the following steps first.
4. Software configuration
GSD file
Please copy the GSD file (IPDS0B87.gsd) and the Bitmap file (ICP_7552.
bmp, i_7552.bmp) from the CD of the GW-7552 module into the Profibus
configuration tool.
File->CopyGSD
(Directory: --> CD:\PROFIBUS\ GATEWAY\GW-7552\GSD\)
¾ the example of how to load GSD file
Here, we use the hilscher CIF50-PB PROFIBUS communication interface to
show how to load GW-7552’s GSD file step by step.
1. First, users must load the
electronic device description file
(GSD file) of the GW-7552 into
the DP-Master.
2. And then set the parameters and
configurations.

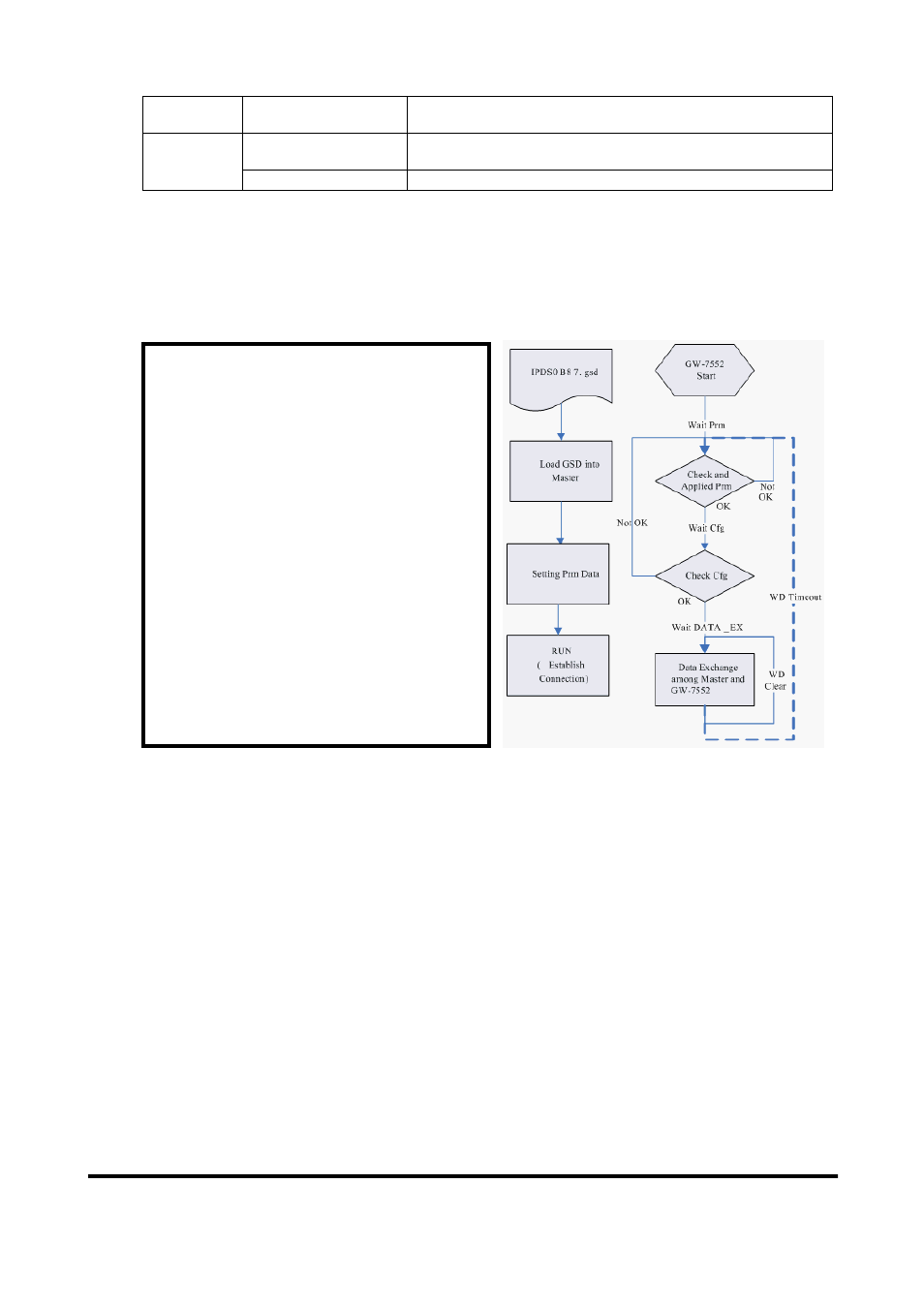

3. Finally change your DP-master
from offline state to operate
state. The GW-7552 will be
initialized. If there is no error
occurs, GW-7552 proceeds into
data exchange state. At the
meantime, if there is any error
occurs, GW-7552 will return to
wait for parameterization.
