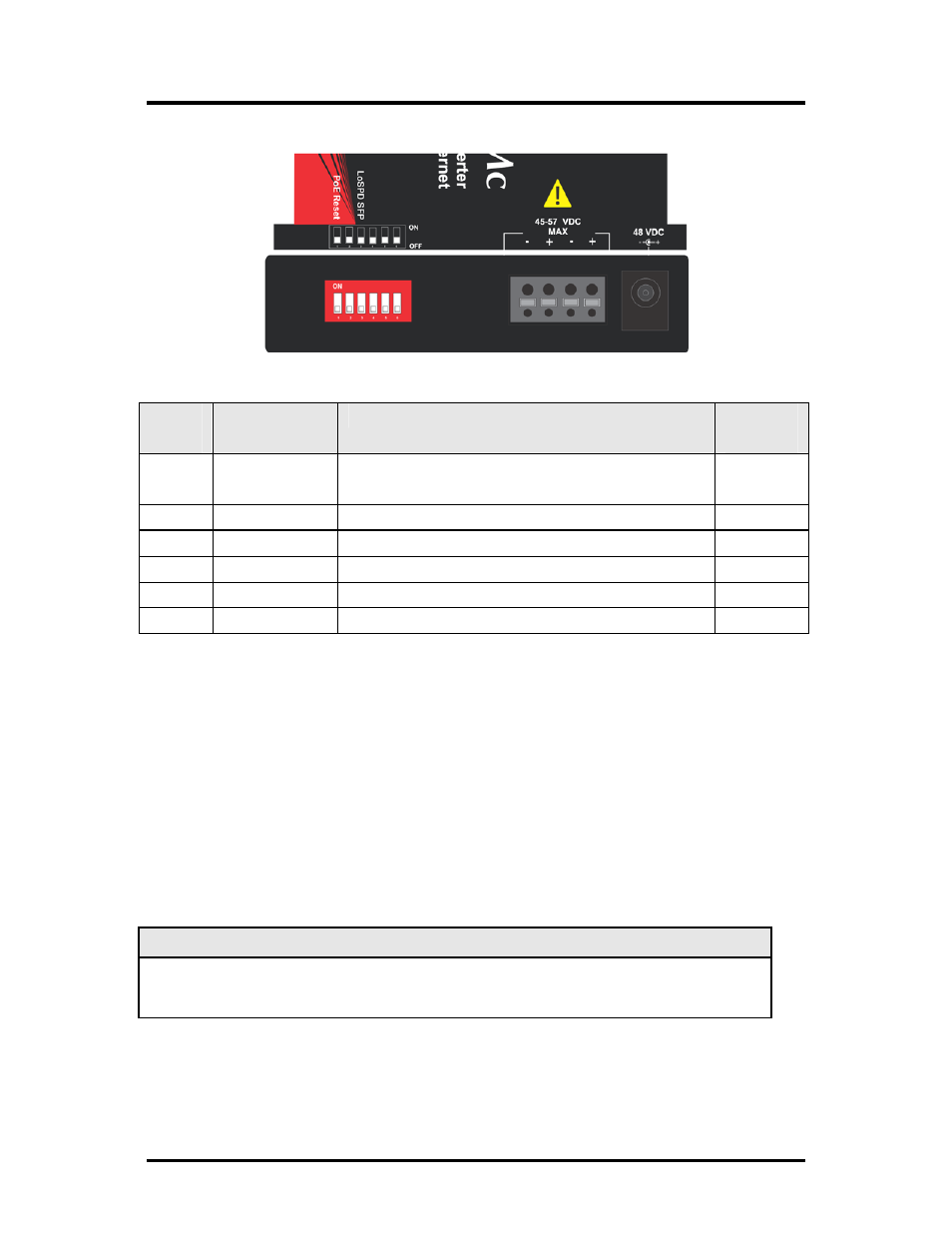

DIP Switch Configuration SFP and 1x9
PoE Giga-MiniMc SFP
DIP
Switch
Name Description Default
Setting
1 PoE Reset ON forces Port 2, PSE/PoE, to OFF on LOS of
Fiber input
OFF
2 Factory Set Do not change OFF
3 LoSpd ON sets SFP for low speed operation OFF
4 Factory Set Do not change OFF
5 Factory Set Do not change OFF
6 Factory Set Do not change OFF
LoSPd DSW for PoE Giga-MiniMc
The DIP Switch for LoSPd is to allow the end user to set a speed for a fiber SFP under
the following conditions:
• Setting the LoSPd DSW to ON will force the SFP to operate at 100Mbps. When
set in the default of OFF, the SFP will run at it’s maximum rate of the SFP
installed.
• If a dual speed fiber SFP 100/1000Mbps is installed, setting the LoSpd to ON will
force the SFP to operate at 100Mbps.
NOTE
Under no conditions will the LoSPd DSW impact any copper SFPs. Some
1000Mbps SFPs may not function properly when forced to 100Mbps.
