20

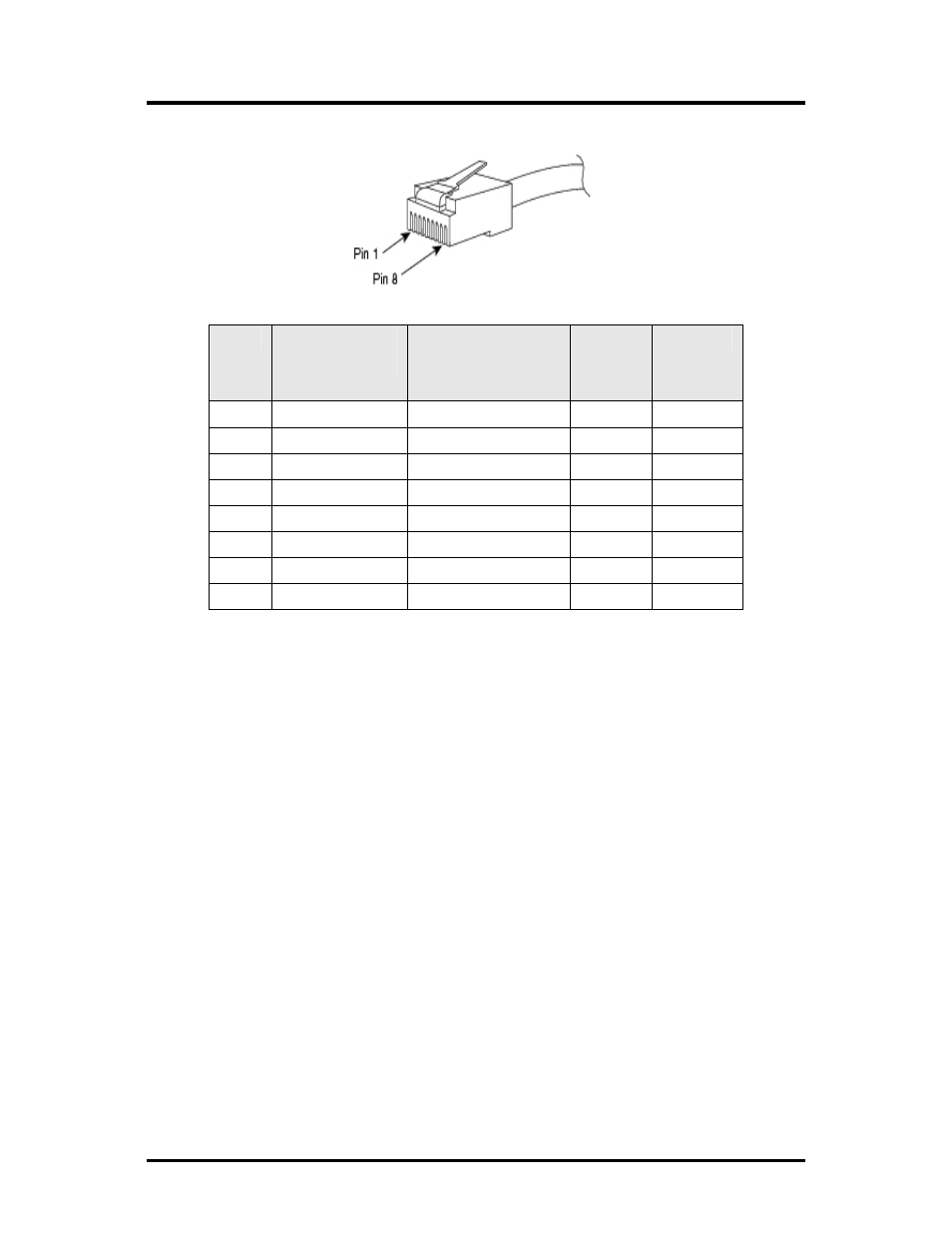

RJ-45 Pinouts

The following table lists the pin configuration for the RJ-48 connector.

Pin#

Signal Name

1000M

Signal Direction

10/100M

PoE

PoE+

(ALT-B)

Pin#

1 TXD1+

Out*

1

2 TXD1-

Out*

2

3 RXD2+

IN*

3

4 D3+

+V 4

5 D3-

+V

5

6 RXD2-

In*

6

7 D4+

-V 7

8 D4-

-V 8
