4
Unmanaged Modules
Before installing the module in an unmanaged chassis,
including IE-MediaChassis series and MediaChassis series,
manually configure all of the desired DIP Switch selectable
features. In an unmanaged configuration, none of the DIP
Switch settings can be overridden by software.
DIP Switches
The iMcV-DS3/E3/STS DIP Switches are located on S1 and S2
on the PCB. The S2 DIP Switches are factory configured and
must not be moved. The S1 DIP Switches provide control
over the available iMcV-DS3/E3/STS features.

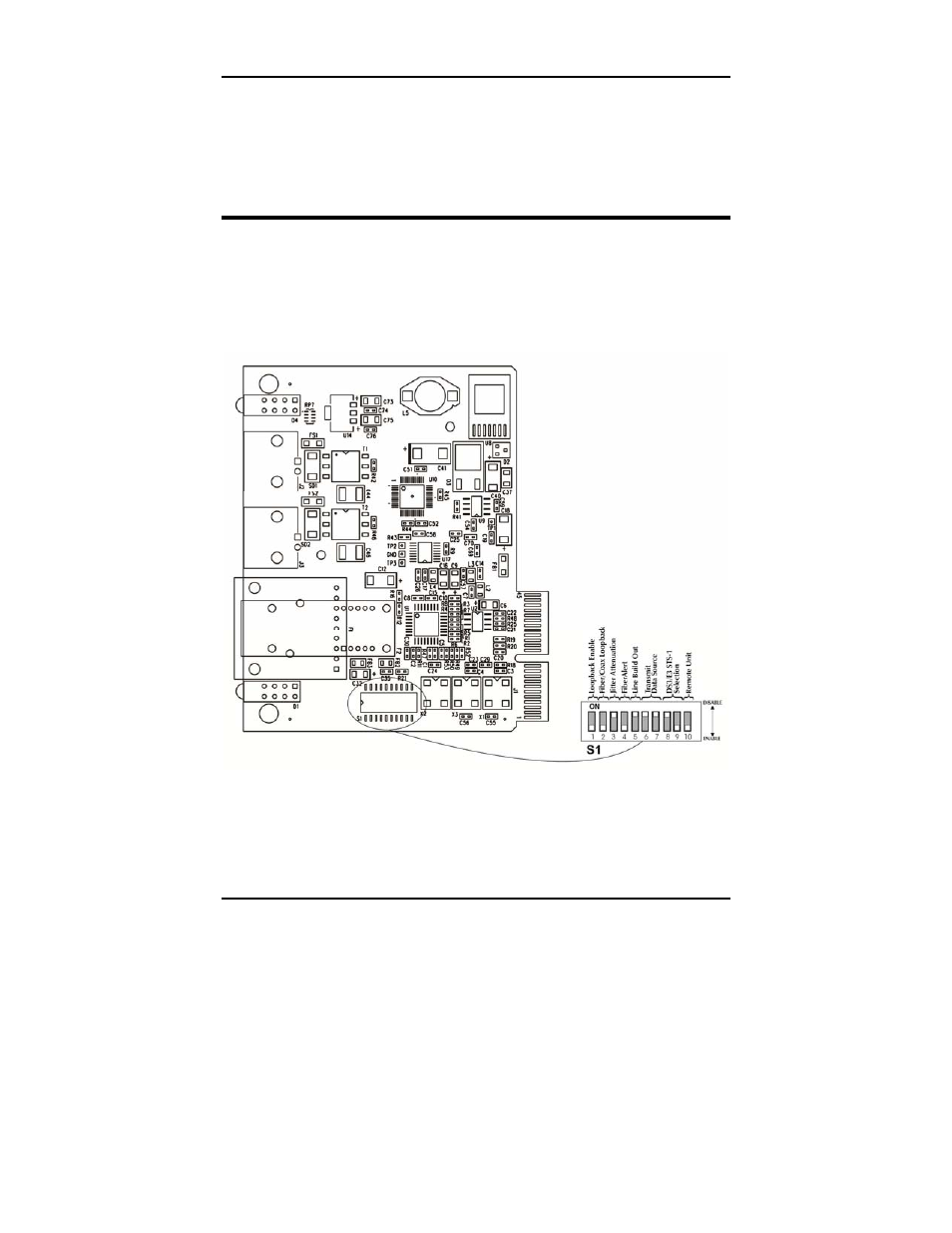

The location of the S1 DIP Switches is displayed in the
following diagram:
