Available Form Factors

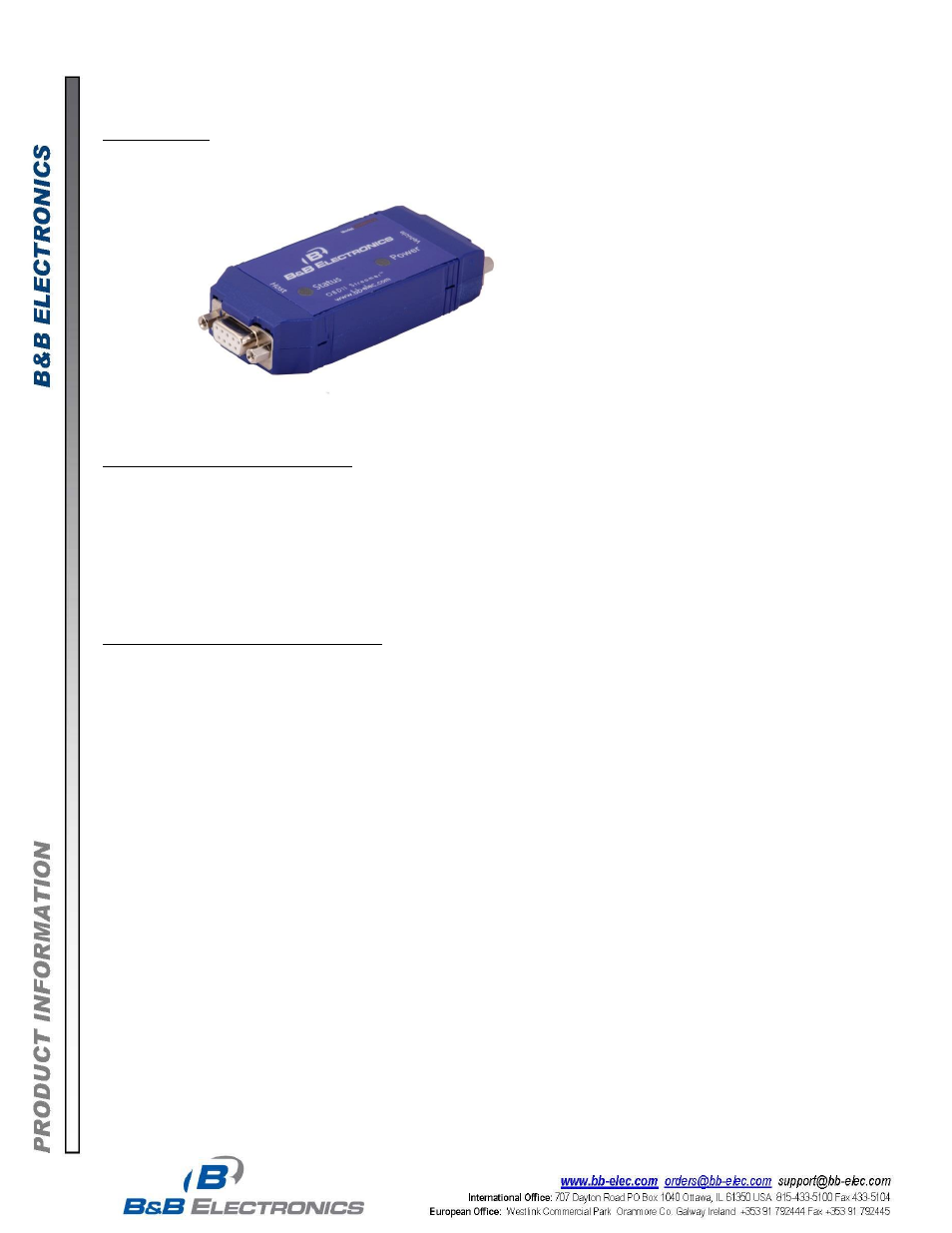

External Box
Vehicle Bus Connection: DB15 female
Pin 1
ISO9141 K/
Pins 4, 5: J1850-, J1850+
Pin 6, 7 Ground
Pin 9 Vehicle unswitched Vbat
Pin 10 ISO9141 L
Pin 11 Vehicle Vbat to external scan tool
Pin 12 CAN Low
Pin 13 CAN High
RS-232 Connection:
DB9 female, DCE
Pin 1 Optional Vbat Power in or VBat power out (2 separate build options)
Pin 3 J1708-
Pin 7 Ground
Pin 8 J1708+
Dimensions: 4.1 x 1.7 x 0.8 in (104.1 x 43.2 x 20.3 mm)
Operating Voltage Range: 8 to 30 VDC
Calculated MTBF: 111,440 Hours
