3

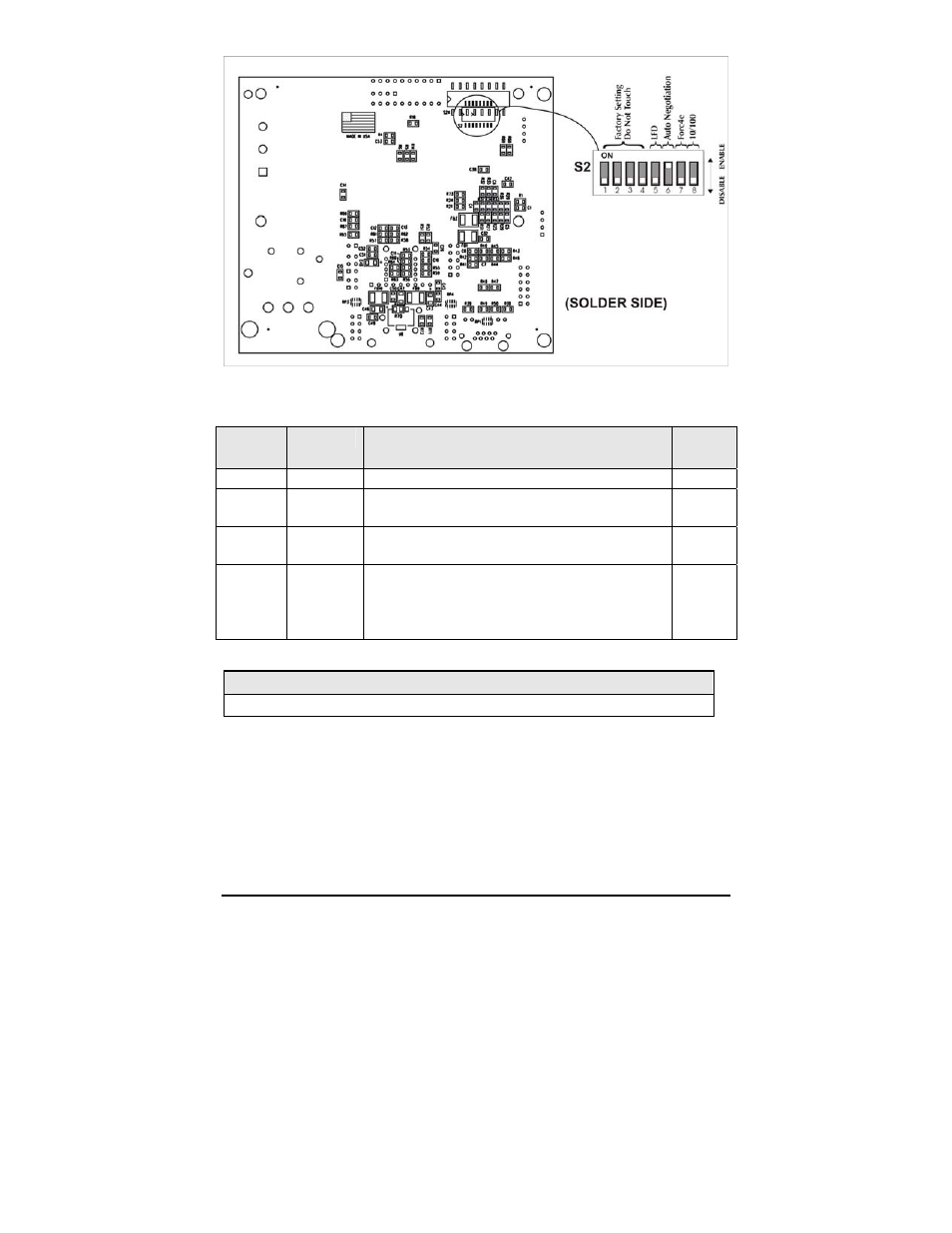

The table below shows the DIP Switch settings for McPC 10/100:
Feature Switch # Function Defaul
t
LFD 5 Link Fault Detection (Available in Force modes only) OFF
AN 6
Auto Negotiation Mode (Valid only when Force
mode is disabled)
ON
Force 7
Force Mode – Forces the converter to operate at 10
or 100 Mbps as determined by switch 8
OFF
10/100 8
Valid only when switch 7 is ON.
When ON, the converter operates at 10 Mbps.
When OFF, the converter operates at 100 Mpbs. 8
is only valid in Force Mode, i.e. when switch 7 is ON
OFF
NOTE
Switch #'s 1 – 4 are factory configured – DO NOT CHANGE
