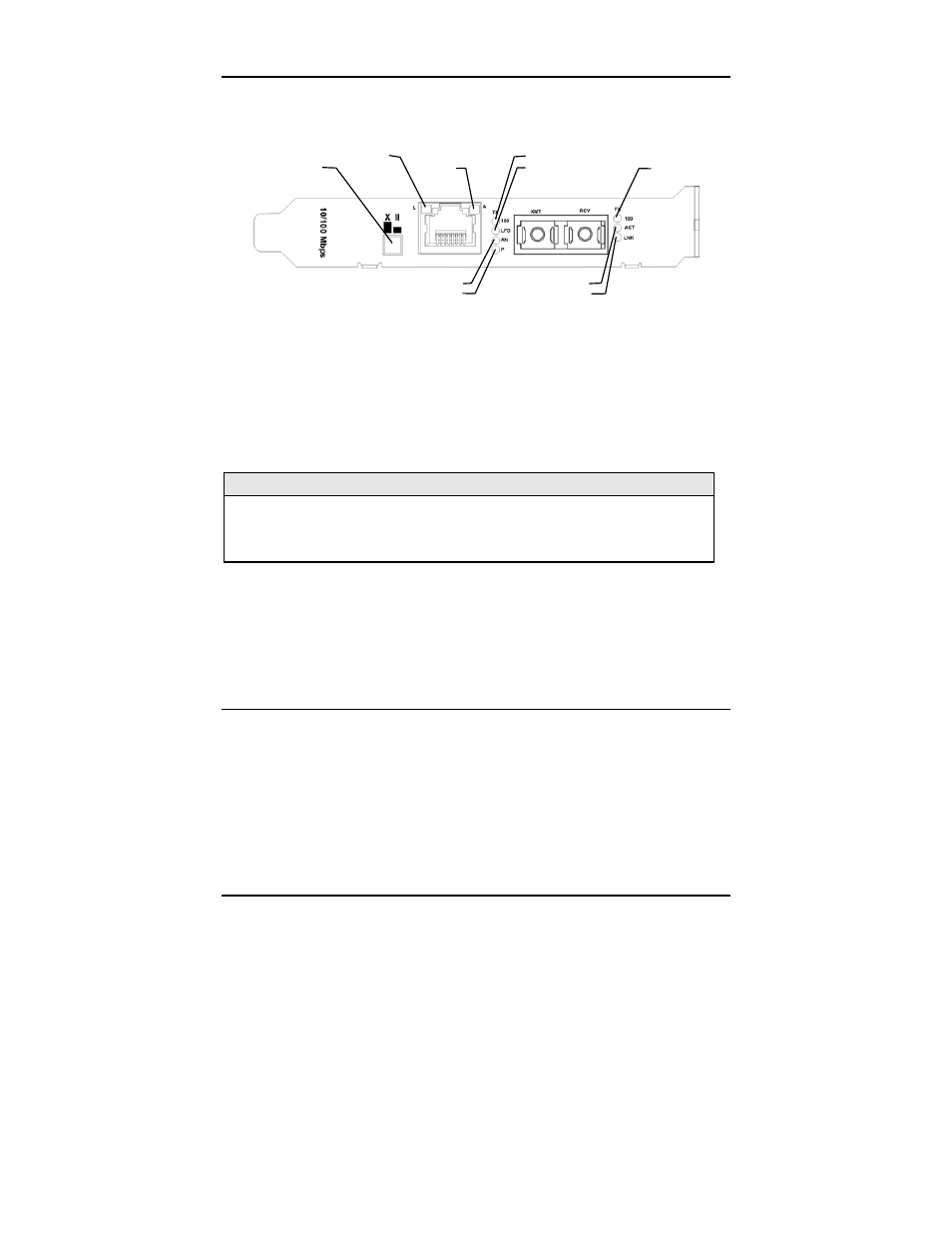

LED Indicators (ISA Version)
The McPC 10/100 features four diagnostic LEDs. The following are the LED
functions on the twisted pair port:
Crossover/Pass- TX Link TX 100 Mbps Activity LED
Through Switch
TX Activity Link Fault Detection LED FX 100 Mbps
Active LED
Auto Negotiation Activity LED FX Activity
Power Link LED FX Link LED
Twisted Pair Port
P Green when the unit has power
AN Green when Auto Negotiation mode is enabled
LFD Green when Link Fault Detection is enabled
100 Yellow when a 100 Mbps connection is detected
NOTE
This feature is only available when either Force 10 or Force 100 mode is
enabled. For more on this feature, see the Link Fault Detection LED Activity
section, below.
Fiber Port
LNK Green when a twisted pair link is established
ACT Yellow when activity is detected on the port
100 Yellow when a 100 Mbps connection is detected
Link Fault Detection LED Activity (ISA Version)
When LFD is enabled and a fault occurs on a segment of the media conversion,
the various Link LEDs in that conversion will either blink or extinguish. LEDs may
react differently depending on the type of end devices in the conversion, whether
the McPC 10/100 is in Force 10 or Force 100 mode, where the fault occurs, etc.
For questions, please contact Technical Support.
