(Revised 2010-2-24)

Page 143 of 153

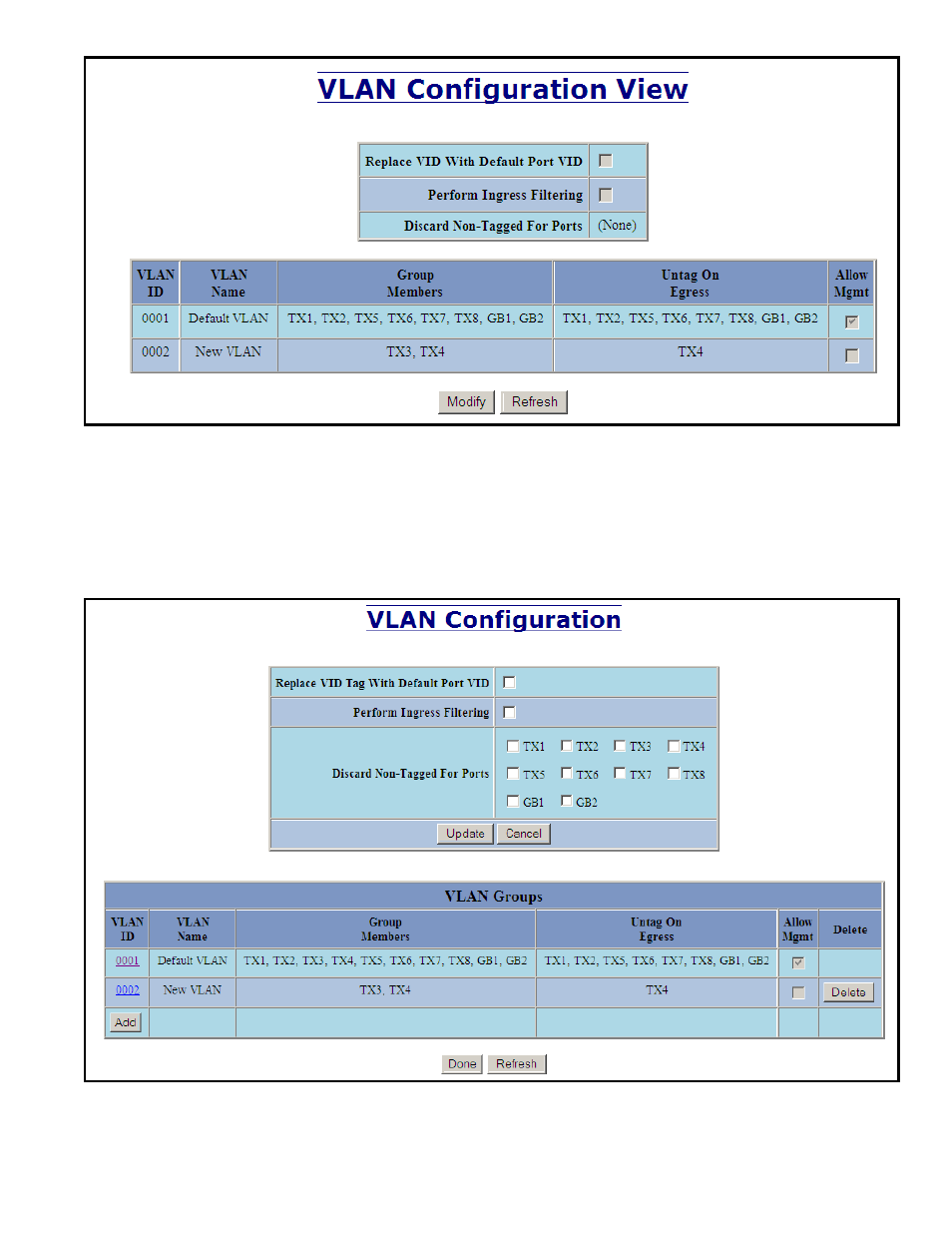

The ports of ”New VLAN” may be added back to “Default VLAN” to create overlapping VLANs.

Note: If there are multiple ports on different VLANs, the 7010TX will apply the static multicast address to
the lowest VLAN-ID that is associated with one of the ports assigned to the static multicast address. If the
lowest VLAN-ID contains all the ports assigned to the static multicast address (an umbrella VLAN), it will
function for all those ports with no problems. This can be achieved with overlapping VLANs.


But notice that the ports in “New VLAN” are not marked as “Untag on Egress” and are thus still tagged.
