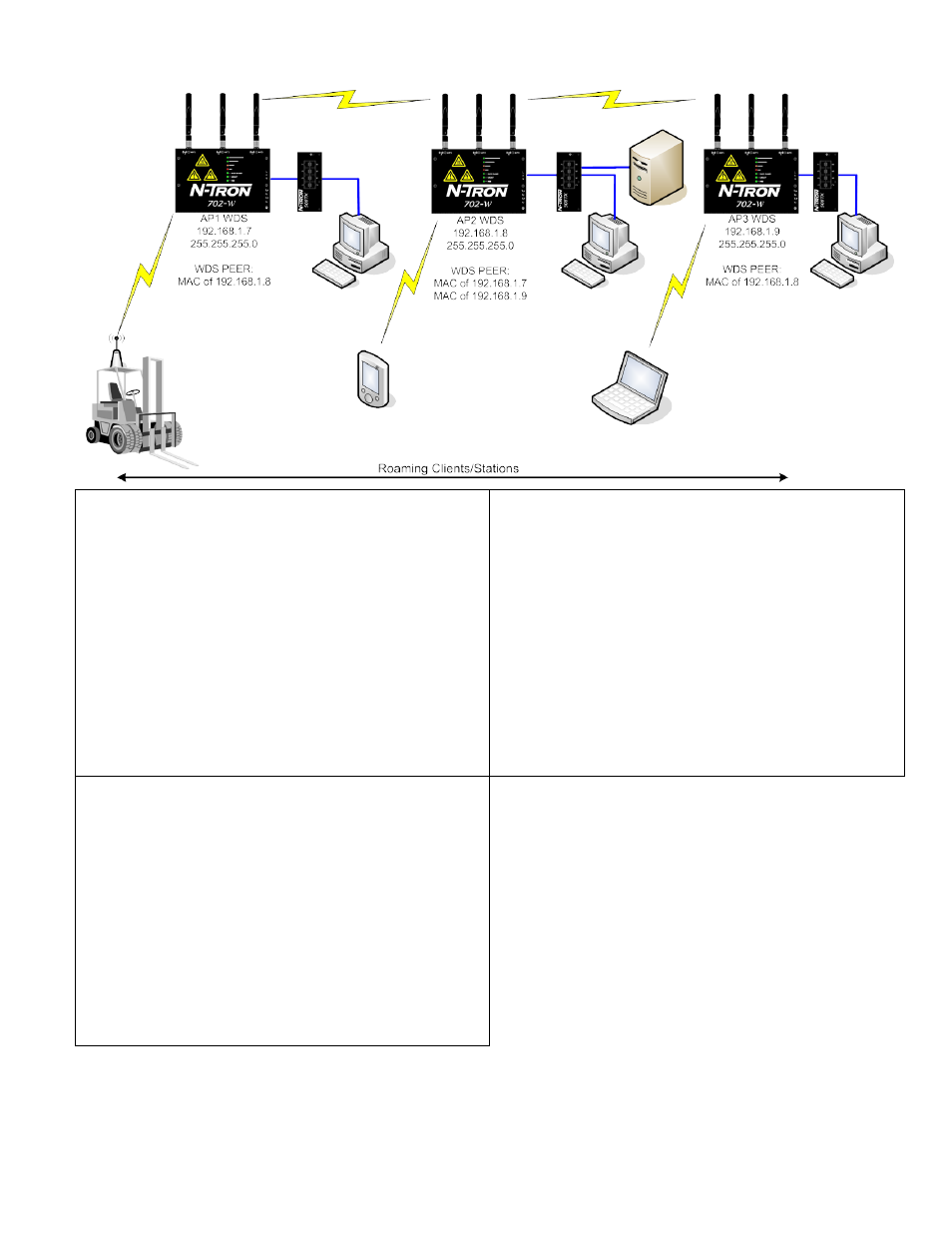

Scenario 4 – WDS Peering
AP1
Link Setup:
Wireless Mode: AP WDS
SSID: N-Tron
WDS PEERS: WLAN MAC AP2
Country Code: United States
802.11 Mode: 11Ng-40MHz
Channel: 10 – 2457MHz
Extension Channel: N/A
Output Power: 12dBm
Network:
Mode: Bridge
IP Address: 192.168.1.7
Netmask: 255.255.255.0
Gateway: 192.168.1.1
AP2
Link Setup:
Wireless Mode: AP WDS
SSID: N-Tron
WDS PEERS: WLAN MAC AP1
WLAN MAC AP3
Country Code: United States
802.11 Mode: 11Ng-40MHz
Channel: 10 – 2457MHz
Extension Channel: N/A
Output Power: 12dBm
Network:
Mode: Bridge
IP Address: 192.168.1.8
Netmask: 255.255.255.0
Gateway: 192.168.1.1
AP3
Link Setup:
Wireless Mode: AP WDS
SSID: N-Tron
WDS PEERS: WLAN MAC AP2
Country Code: United States
802.11 Mode: 11Ng-40MHz
Channel: 10 – 2457MHz
Extension Channel: N/A
Output Power: 12dBm
Network:
Mode: Bridge
IP Address: 192.168.1.9
Netmask: 255.255.255.0
Gateway: 192.168.1.1
